Many businesses struggle with blind spots, slow camera adjustments, and low-light footage that never shows the full picture. When a camera cannot move or focus on the right area, security gaps appear and important details are missed. The PTZOptics Move 4K 20X IP Security Camera Indoor/Outdoor Auto Pan Preset Point solves these issues by offering smooth pan, tilt, and 20 optical zoom plus built-in auto-tracking, so you always capture clear video exactly where you need it.

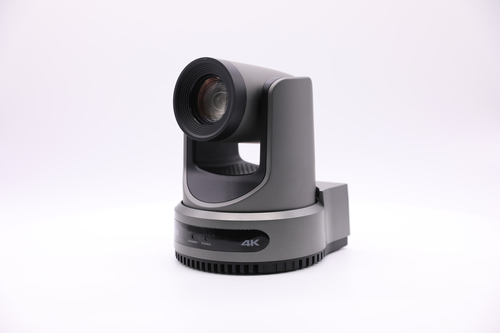

PTZOptics Move 4K 20X IP Security Camera Indoor/Outdoor Auto Pan Preset Point with PTZOptics
Imagine a camera that follows a speaker across a stage, zooms into a license plate at night, and lets you set preset views with one click. That is what the PTZOptics Move 4K does. It is a high-resolution PTZ camera designed for both indoor and outdoor use. It gives you 4K video at 60 fps, auto-tracking, and remote control through any PTZ software. If you need reliable video without hiring a camera operator, this camera is the clear answer.
Usages
The camera works well in retail stores to watch aisles and entrances, in schools to record classroom activities, and in warehouses to monitor loading docks. It is also perfect for live streaming churches, conferences, or sports events where the presenter moves around. Because it supports PoE+, you can install it on a ceiling, wall, or pole and control it from anywhere using a phone or computer.
Benefits
- Clear 4K video lets you see details that matter.
- Auto-tracking removes the need for a dedicated camera operator.
- Preset points let you switch views instantly during a live event.
- Low-light performance captures usable footage at night.
- Remote control via web UI or mobile app saves time and effort.
Key Features

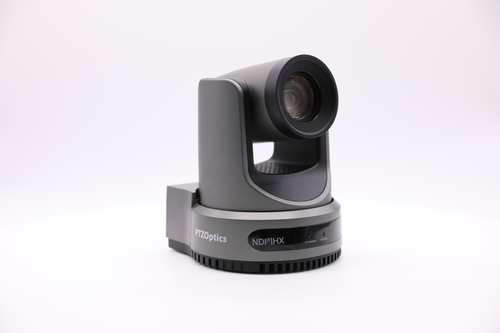

- 20 optical zoom with 16 digital zoom.
- 4K resolution up to 3840 2160 pixels.
- Auto-tracking and presenter lock up to 300 ft.
- Built-in IR light for night vision down to 0.5 lx.
- PoE+ power simplifies wiring and installation.

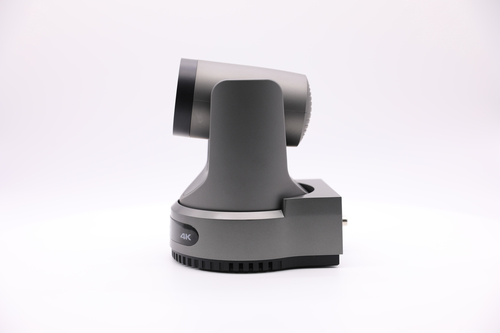

- HDMI, SDI, USB, and IP outputs for flexible streaming.
- Supports NDI|HX, RTSP, RTMP, and H.264/H.265 codecs.
- Full PTZ control via Pelco-P/D, web UI, or mobile app.
- Weather-proof housing for indoor and outdoor use.
- 5-year limited parts and labor warranty for peace of mind.
Specifications
| Performance |
| Built-in light |
Yes |
| Auto-tracking |
Yes |
| PTZ protocols |
Pelco-P/D |
| PTZ modes |
Auto pan, Preset point |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| Product colour |
Grey |
| Mounting type |
Ceiling/Wall/Pole |
| Form factor |
Turret |
| Camera |
| Camera shutter speed |
1/30 - 1/10000 s |
| White balance |
Auto, Indoor, Manual, One push, Outdoor |
| Pan speed |
100 °/sec |
| Pan range |
-170 - 170° |
| Tilt speed |
69.9 °/sec |
| Tilt angle range |
-30 - 90° |
| Lens viewing angle, vertical |
44.8° |
| Lens viewing angle, horizontal |
72.5° |
| Angle of rotation |
360° |
| Minimum illumination |
0.5 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Effective sensor resolution |
8.41 pixels |
| Optical sensor size |
25.4 / 1.8 mm (1 / 1.8") |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
4.4 - 52.8 mm |
| Digital zoom |
16x |
| Optical zoom |
20x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Video |
| Bit rate |
128Kbps - 8192Kbp |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Noise reduction technology |
Ultra 2D noise reduction, Ultra 3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported video modes |
480i, 576i, 720p, 1080i, 1080p |
| Supported graphics resolutions |
320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Video formats supported |
H.264, H.265, M-JPEG |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Audio formats supported |
AAC |
| Network |
| Supported network protocols |
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast |
| Ethernet interface type |
Gigabit Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Built-in HDD |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| USB port |
Yes |
| Headphone outputs |
1 |
| RS-485 ports |
1 |
| RS-232 ports |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
| Remotely operated |
Yes |
| Smartphone/tablet remote support |
Yes |
| Power |
| DC output current |
1 A |
| DC output voltage |
12 |
| Power consumption (max) |
12 W |
| Power source type |
DC |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-5 - 40 °C |
| System requirements |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 7, Windows 8, Windows Vista, Windows XP |
| Weight & dimensions |
| Weight |
2 kg |
| Height |
164.5 mm |
| Depth |
141.5 mm |
| Width |
168.4 mm |
| Supplier features |
| Manufacturer |
PTZOptics |
| Packaging content |
| Packaging content |
AC Power Supply USB C-A Cable RS232C Cable Quick Start Guide IR Remote 2 AA Batteries |
| Manual |
Yes |
| Battery included |
Yes |
| Cables included |
AC, USB |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
