Imagine a security blind spot that lets a problem slip by unnoticed. The PTZOptics PT12X-LINK-4K-GY Indoor Outdoor PTZ IP Security Camera Wired Ceiling is a powerful camera that can pan, tilt and zoom to watch any area you need. It is built for businesses that need clear, real-time video both inside and outside. If you have missed a critical event because a fixed camera could not see the whole space, this camera gives you the coverage you need.

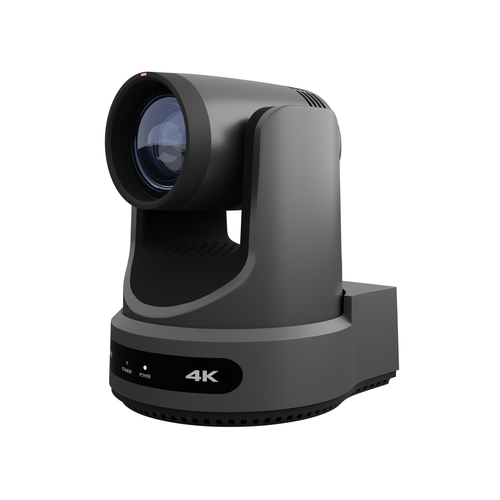

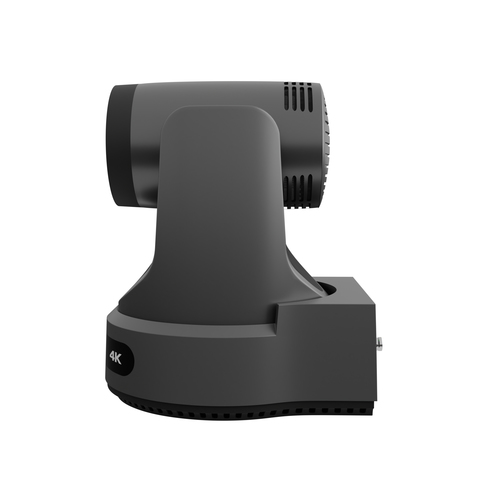

PTZOptics PT12X-LINK-4K-GY Indoor Outdoor PTZ IP Security Camera Wired Ceiling
Many owners struggle with cameras that only see one direction, leaving doors, aisles or parking lots unprotected. Those gaps can lead to theft, safety issues and higher costs because you have to install many cheap units. PTZOptics solves this by offering 12 optical zoom, 360 pan and preset positions that you can call with a single command. The result is one versatile camera that watches every angle, reduces wiring, and cuts maintenance time.
Benefits
- One camera replaces several fixed units, lowering purchase and installation costs.
- Auto-pan and preset points let you focus on any spot with a single click.
- 12 optical zoom captures details like license plates or faces from far away.
- Built-in infrared light provides clear video in low-light or night conditions.
- Pelco-P/D protocol integrates easily with existing security systems.
Usages
Use the camera in a retail store to watch entrances, cash registers and the parking lot from one mount. Install it in a warehouse to follow forklifts and monitor loading docks without moving the unit. Place it on a school campus to cover playgrounds and building exteriors while staying hidden on a pole or ceiling. It also works well in small office lobbies, outdoor event venues, and any site that needs clear day and night coverage.
Key Features
- 12 optical zoom plus 16 digital zoom for detailed images.
- Pan range -170 to 170 and tilt range -30 to 90.
- Auto-tracking and auto-pan modes for hands-free monitoring.
- Preset point memory for instant recall of important views.
- 4K resolution (3840 2160) at 60 fps for crisp video.
- Gigabit Ethernet wired connection ensures stable streaming.
- Indoor and outdoor rated housing with white finish.
- Multiple mounting options: ceiling, wall or pole.
- Built-in infrared light for illumination as low as 0.5 lx.

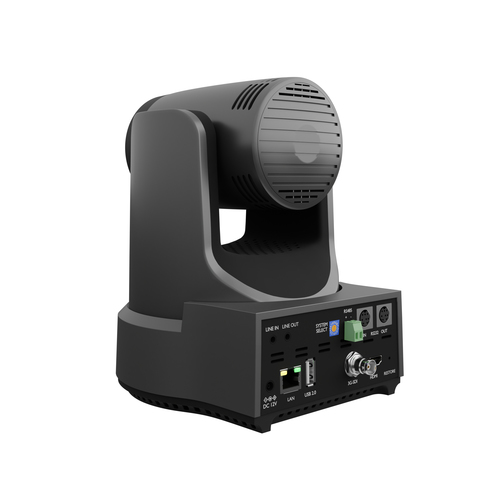

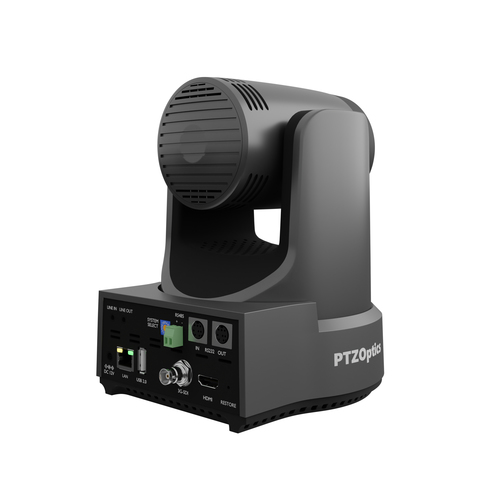

- USB, HDMI, RS-232 and RS-485 ports for flexible integration.
Specifications
| Performance |
| Built-in light |
Yes |
| Preset points |
Yes |
| Auto-tracking |
Yes |
| PTZ protocols |
Pelco-P/D |
| PTZ modes |
Auto pan, Preset point |
| PTZ control |
Yes |
| Connectivity technology |
Wired |
| Placement supported |
Indoor & outdoor |
| Type |
IP security camera |
| Design |
| Housing material |
Aluminium, Plastic |
| Product colour |
White |
| Mounting type |
Ceiling/Wall/Pole |
| Form factor |
Turret |
| Camera |
| Camera shutter speed |
1/30 - 1/10000 s |
| White balance |
Auto, Indoor, Manual, One push, Outdoor |
| Pan speed |
100 °/sec |
| Pan range |
-170 - 170° |
| Tilt speed |
69.9 °/sec |
| Tilt angle range |
-30 - 90° |
| Lens viewing angle, vertical |
44.8° |
| Lens viewing angle, horizontal |
72.5° |
| Minimum illumination |
0.5 lx |
| Camera tilt control |
Yes |
| Camera pan control |
Yes |
| Image sensor |
| Progressive scan |
Yes |
| Effective sensor resolution |
8.51 pixels |
| Optical sensor size |
25.4 / 2.5 mm (1 / 2.5") |
| Sensor type |
CMOS |
| Lens system |
| Focal length range |
4.4 - 52.8 mm |
| Digital zoom |
16x |
| Optical zoom |
12x |
| Zoom capability |
Yes |
| Number of lenses |
1 |
| Video |
| Bit rate |
128Kbps - 8192Kbp |
| Bit rate control |
Variable Bit Rate (VBR) |
| Flip & mirror |
Yes |
| Noise reduction technology |
Ultra 2D noise reduction, Ultra 3D noise reduction |
| Noise reduction |
Yes |
| Video streaming |
Yes |
| Frame rate |
60 fps |
| Supported video modes |
480i, 576i, 720p, 1080i, 1080p |
| Supported graphics resolutions |
320 x 240, 720 x 480, 720 x 576, 1024 x 576 (WSVGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Video formats supported |
H.264, H.265, M-JPEG |
| Maximum resolution |
3840 x 2160 pixels |
| Audio |
| Signal-to-Noise Ratio (SNR) |
55 dB |
| Audio formats supported |
AAC |
| Network |
| Supported network protocols |
TCP/IP, HTTP, RTSP, RTMP, DHCP, Multicast |
| Ethernet interface type |
Gigabit Ethernet |
| Bluetooth |
No |
| Wi-Fi |
No |
| Ethernet LAN |
Yes |
| Storage |
| Built-in HDD |
No |
| Ports & interfaces |
| DC-in jack |
Yes |
| HDMI ports quantity |
1 |
| USB port |
Yes |
| Headphone outputs |
1 |
| RS-485 ports |
1 |
| RS-232 ports |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Management features |
| Remotely operated |
Yes |
| Smartphone/tablet remote support |
Yes |
| Power |
| DC output current |
1 A |
| DC output voltage |
12 |
| Power consumption (max) |
12 W |
| Power source type |
DC |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
-5 - 40 °C |
| System requirements |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 7, Windows 8, Windows Vista, Windows XP |
| Weight & dimensions |
| Weight |
1.47 kg |
| Height |
164.5 mm |
| Depth |
141.5 mm |
| Width |
168.4 mm |
| Supplier features |
| Manufacturer |
PTZOptics |
| Packaging content |
| Manual |
Yes |
| Battery included |
Yes |
| Cables included |
AC, USB |
| Number of cameras |
1 |
| Other features |
| Maximum resolution |
3840 x 2160 pixels |
