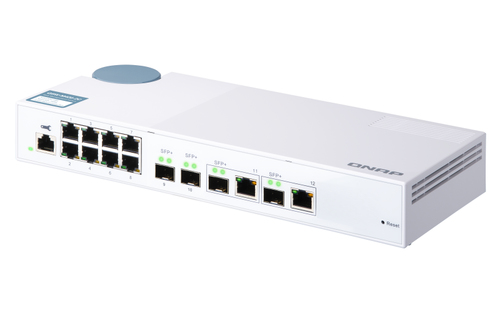

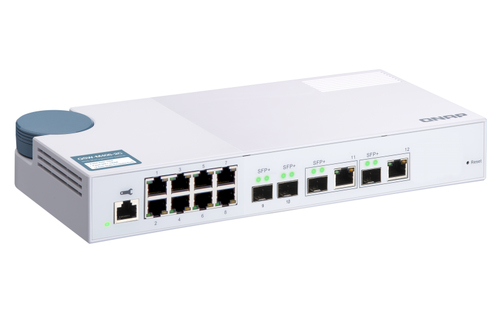

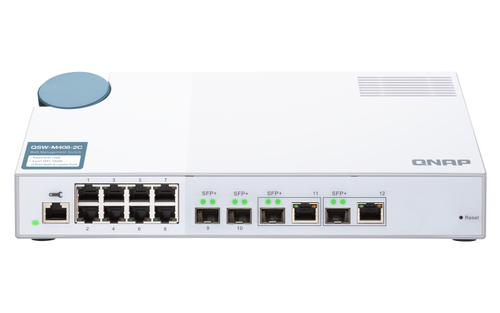

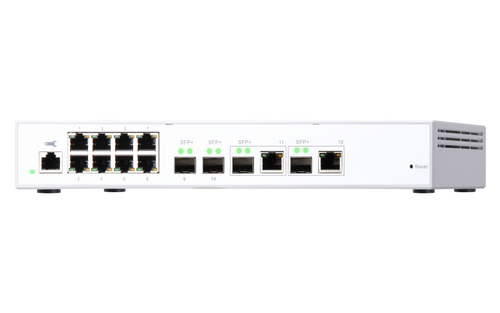

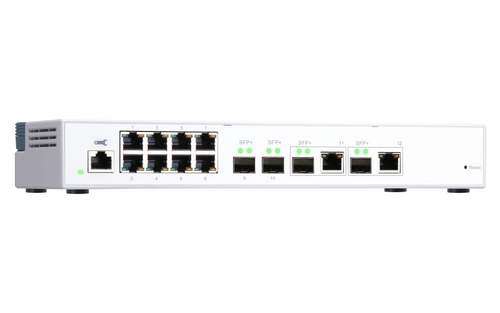

The QSW-M408-2C is a Layer 2 Web Managed Switch equipped with four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports. Supporting Layer 2 switching and network management via user-friendly web user interface, the QSW-M408-2C offers flexible deployment in a hybrid high-speed network infrastructure and an entry-level network management solution for even non-IT professionals. The QSW-M408-2C is compatible with 10GbE and NBASE-T technologies that supports up to five speeds (10G / 5G / 2.5G / 1G / 100M) to provide higher transmission speeds with your existing Cat 5e and 6a cables. With its high performance, user-friendly management features and desktop size, the QSW-M408-2C allows you to instantly upgrade to a hybrid high-speed network environment at a cost-effective price, while optimizing network bandwidth and ensuring network maintenance security
Flexible deployment with multiple 10G SFP+ fiber and Gigabit ports
The QSW-M408-2C provides four 10GbE SFP+ ports (with two 10GbE SFP+/RJ45 combo ports) and eight Gigabit ports for connecting various devices and enabling hybrid high-speed networks. With SFP+ interfaces, direct attach copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use 10G-SFP-T copper transceiver modules to connect 10GBASE-T/NBASE-T devices through RJ45 Category 6, 5 or 5e cabling. The switching capacity of QSW-M408-2C is 96Gbps, guaranteeing the full potential of each port.
Specifications
| Management features |
| Web-based management |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Console port |
RJ-45 |
| Fiber optic connector |
SFP+ |
| SFP+ module slots quantity |
2 |
| Combo SFP ports quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Virtual LAN features |
Port-based VLAN, Private VLAN |
| VLAN support |
Yes |
| Auto-negotiation |
Yes |
| Flow control support |
Yes |
| Spanning tree protocol |
Yes |
| Full duplex |
Yes |
| Cable types supported |
Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology |
10BASE-T, 10GBASE-T, 1000BASE-LX, 1000BASE-SX, 1000BASE-T |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Jumbo frames |
9000 |
| Jumbo frames support |
Yes |
| Throughput |
48 Gbit/s |
| Throughput |
48 Gbit/s |
| Switching capacity |
96 Gbit/s |
| MAC address table |
16000 entries |
| Security |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client |
| Design |
| Electromagnetic compatibility |
CLASS A |
| Number of fans |
1 fan(s) |
| LED indicators |
Activity, Link, Power, Speed, Status |
| Reset button |
Yes |
| Product colour |
White |
| Stackable |
No |
| Rack mounting |
No |
| Performance |
| Noise level |
21 dB |
| Power |
| Power consumption (max) |
22.04 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Weight |
1.15 kg |
| Height |
42.5 mm |
| Depth |
127 mm |
| Width |
290 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
1.57 kg |
| Certificates |
| Certification |
CE, FCC, VCCI, BSMI, CCC |
