Youre tired of watching your business data crawl through a slow, overloaded server, and you need a reliable way to keep everything fast and safe. QNAP delivers the performance and redundancy you need in a single rack-mount box. This NAS solves bottlenecks with an AMD Ryzen 7 processor, 32 GB DDR5 memory and hot-swap bays, so your files are always accessible.

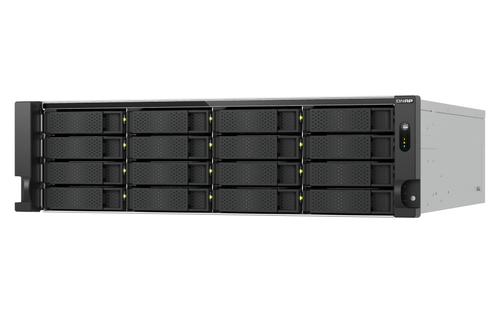

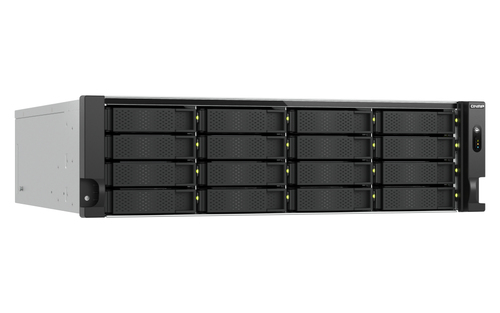

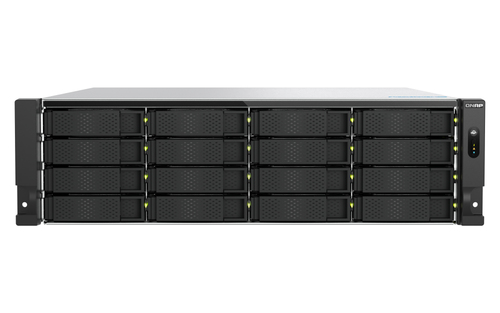

QNAP TS-H1677AXU-RP-R7-32G, NAS, Rack (3U), AMD Ryzen 7, 32 GB, DDR5
This rack-mount NAS is built for small and medium businesses that need high-speed storage and continuous availability. It supports up to 16 hot-swap drives, dual 550 W redundant power supplies and 10 GbE networking, giving you the capacity and reliability to run critical applications without interruption.
Benefits
- Handles heavy workloads with QNAPs proven architecture.
- Redundant power keeps your data online during outages.
- Fast 10 GbE links reduce transfer times for large files.
- Hot-swap bays let you replace drives without downtime.
- ECC memory protects against data corruption.
- Scalable up to 128 GB RAM for future growth.
Features
- AMD Ryzen 7, 8 cores, 16 threads
- Boost frequency up to 5.3 GHz
- 32 GB DDR5 UDIMM, ECC enabled
- Four 10 GbE RJ-45 ports
- Two USB 3.2 Gen 2 Type-A ports
- Three 6 cm active cooling fans
- Two 550 W redundant power supplies
- Supports RAID 0/1/5/6/10/50/60/JBOD
Specifications
| Storage |
| Hot-swap drive bays |
Yes |
| RAID levels |
0, 1, 5, 6, 10, 50, 60, JBOD |
| RAID support |
Yes |
| Storage drive sizes supported |
2.5,3.5" |
| Supported storage drive interfaces |
M.2, Serial ATA III, Serial ATA II |
| Storage drive interface |
Serial ATA II, Serial ATA III |
| Storage drive capacity |
0 GB |
| Supported storage drive types |
HDD & SSD |
| Installed storage drive type |
No |
| Number of storage drives installed |
0 |
| Total installed storage capacity |
0 TB |
| Storage drives installed |
No |
| Processor |
| Processor threads |
16 |
| Processor cores |
8 |
| Processor boost frequency |
5.3 GHz |
| Processor family |
AMD Ryzen™ 7 |
| Processor manufacturer |
AMD |
| Memory |
| Flash memory |
5000 MB |
| ECC |
Yes |
| Memory form factor |
UDIMM |
| Memory slots |
4 |
| Maximum RAM supported |
128 GB |
| Internal memory type |
DDR5 |
| Internal memory |
32 GB |
| Network |
| Wake-on-LAN ready |
Yes |
| Jumbo frames support |
Yes |
| Ethernet LAN data rates |
100,1000,2500,10000 Mbit/s |
| Ethernet LAN |
Yes |
| Ports & interfaces |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
2 |
| USB port |
Yes |
| Ethernet LAN (RJ-45) ports |
4 |
| Design |
| LED indicators |
HDD, LAN, SSD, Status, USB |
| Fan diameter |
6 cm |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Chassis type |
Rack (3U) |
| Performance |
| Backup function |
Yes |
| Device class |
Small & Medium Business |
| Type |
NAS |
| Power |
| AC input voltage |
100 - 240 V |
| Redundant power supply (RPS) support |
Yes |
| Number of power supply units |
2 |
| Power supply unit (PSU) capacity |
550 W |
| Weight & dimensions |
| Weight |
15.6 kg |
| Height |
131.3 mm |
| Depth |
550.8 mm |
| Width |
482.2 mm |
| Operational conditions |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Other features |
| Warranty period |
5 year(s) |
