Imagine you are building a new smart speaker and you need a reliable platform that lets you test Wi-Fi, Bluetooth and Thread in one board. The Qualcomm QCC748M Evaluation Kit EVK with PCB Antenna 16MB Flash Memory gives you exactly that. It is a development board designed for engineers who want to prototype connected devices quickly. Without a kit like this you would have to source separate modules, write low-level drivers and waste weeks on hardware integration. This kit removes that barrier and lets you focus on your product idea.

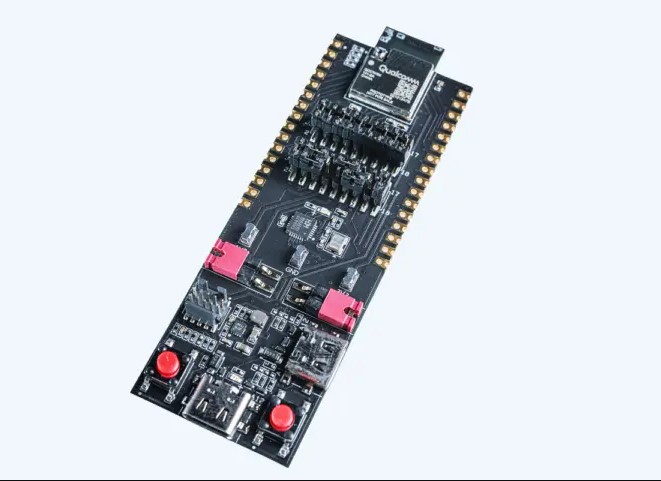

Qualcomm QCC748M Evaluation Kit EVK with PCB Antenna 16MB Flash Memory
The kit solves the problem of fragmented hardware choices for IoT prototypes. When you try to combine Wi-Fi, BLE, Thread and Matter on a single device, mismatched parts can cause instability and long debug cycles. This matters because time to market is critical for startups and product teams. The Qualcomm QCC748M Evaluation Kit provides a unified platform that includes a 32-bit RISC-V processor, 16 MB of external flash, and a built-in PCB antenna, so you can test every wireless protocol from one board.
Key Features
- 32-bit RISC-V CPU running at 325 MHz.
- Integrated DSP and floating-point unit.
- 128 KB ROM and 484 KB SRAM on board.
- 8 MB PSRAM and 8 MB module flash plus 16 MB external flash.
- 11 2.4 GHz Wi-Fi 6 (b/g/n/ac/ax) radio.
- Bluetooth Low Energy 5.4 with BLE commissioning.
- Thread and Zigbee ready via IEEE 802.15.4.
- Camera DVP interface and display DBI interface.
- USB 2.0, SDIO, UART, SPI, I2C, I2S, CAN bus ports.
- Power via USB or 5 V input, operating from -40 C to +85 C.
Specifications
| General |
|
| Model |
EVK-QCC748M-6-01-0-AA |
| Product |
QCC748M EVK |
| Module |
QCC748M |
| Antenna Configuration |
PCB Antenna |
| GPIOs |
Up to 32 |
| Processor |
|
| Processor |
32-bit RISC-V @ 325MHz |
| DSP |
Yes |
| FPU |
Yes |
| Memory |
|
| Onboard Memory |
128KB ROM, 484KB SRAM |
| SiP Memory |
8MB PSRAM |
| Module Onboard Flash |
8MB |
| Extended Memory |
16MB Flash |
| Wireless Connectivity |
|
| Wi-Fi Standard |
1x1 2.4GHz 802.11 b/g/n/ac/ax (Wi-Fi 6) |
| Bluetooth Standard |
Bluetooth Low Energy v5.4 |
| IEEE 802.15.4 |
Thread and Zigbee-ready |
| Matter Support |
Matter over Wi-Fi and Thread supported, with BLE commissioning |
| Multimedia |
|
| Camera Interface |
DVP (via GPIO) |
| Display Interface |
DBI (via GPIO) |
| Video Codec |
MJPEG Encoding |
| Audio Codec |
1x DAC (Speaker) / 1x ADC (Mic) via GPIO |
| Multimedia Features |
Camera & Display interfaces, A/V codecs, USB 2.0 |
| Interfaces |
|
| Ethernet |
RMII (via GPIO) |
| USB |
2.0 |
| SDIO |
SDIO 2.0 Secondary, SD Card Interface |
| UART |
2x |
| SPI |
Primary/Secondary |
| I2C |
2x |
| I2S |
Primary/Secondary |
| PWM |
1x PWM (4 channels) |
| QSPI |
XiP QSPI (Flash) |
| CAN Bus |
ISO 11898 (CAN Bus) |
| ADC |
General Purpose 12/14/16 bits |
| DAC |
General Purpose 12-bit |
| JTAG |
via GPIO |
| IR Controller |
Receiver |
| Timers |
|
| Timers |
RTC, 2x 32-bit, 1x 16-bit |
| Power |
|
| EVK Input Power |
USB or 5V |
| Environmental |
|
| Operating Temperature |
-40°C to +85°C |
