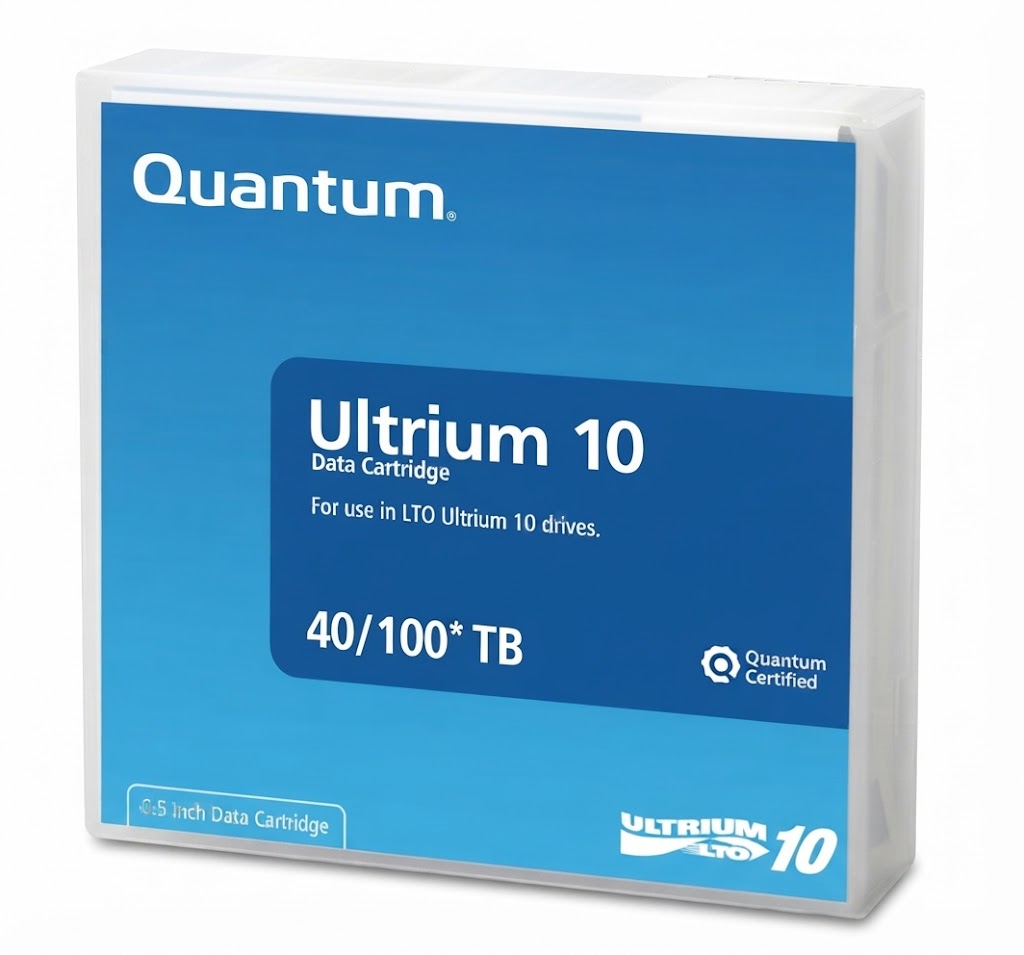

Quantum LTO-10 PA 40TB/100TB LTO Ultrium Data Cartridge
The Quantum LTO-10 PA Data Cartridge provides 40 TB of native storage capacity and up to 100 TB of compressed capacity using a 2.5:1 compression ratio. It uses the LTO Ultrium media format for high-capacity data backup, archiving, and storage applications.
The cartridge supports WORM functionality and AES 256-bit encryption. It offers an archival life of up to 30 years, making it suitable for long-term data retention requirements.
The recommended operating environment is 15°C to 25°C with 20% to 50% non-condensing relative humidity. The allowed operating range is 15°C to 35°C with 20% to 80% non-condensing relative humidity.
For shipping, the cartridge supports temperatures from -23°C to 49°C and relative humidity from 5% to 80%. These specifications define the recommended and allowable environmental conditions for the media.
Key Features
-
40 TB native storage capacity
-
Up to 100 TB compressed capacity
-
2.5:1 compression ratio
-
LTO-10 PA media type
-
LTO Ultrium media format
-
WORM support
-
AES 256-bit encryption
-
Up to 30 years archival life
-
15°C to 35°C allowed operating temperature
-
20% to 80% allowed relative humidity
Specifications
| Media |
|
| Media Type |
LTO-10 (PA) |
| Native Capacity |
40 TB |
| Compressed Capacity |
100 TB |
| Compression Ratio |
2.5:1 |
| Media Format |
LTO Ultrium |
| WORM Support |
Yes |
| Encryption |
AES 256-bit |
| Tape Length |
1,035 m (3,395 ft) |
| Tape Width |
12.65 mm (0.50 in) |
| Cartridge Dimensions (W x H x L) |
21.5 mm x 105.4 mm x 102.0 mm
(0.85 in x 4.15 in x 4.02 in) |
| Environmental Conditions |
|
| Recommended Dry-Bulb Temperature |
15 to 25°C (59 to 77°F) |
| Allowed Dry-Bulb Temperature |
15 to 35°C (59 to 95°F) |
| Shipping Temperature |
-23 to 49°C (-9 to 120°F) |
| Recommended Relative Humidity |
20 to 50% non-condensing |
| Allowed Relative Humidity |
20 to 80% non-condensing |
| Shipping Relative Humidity |
5 to 80% |
