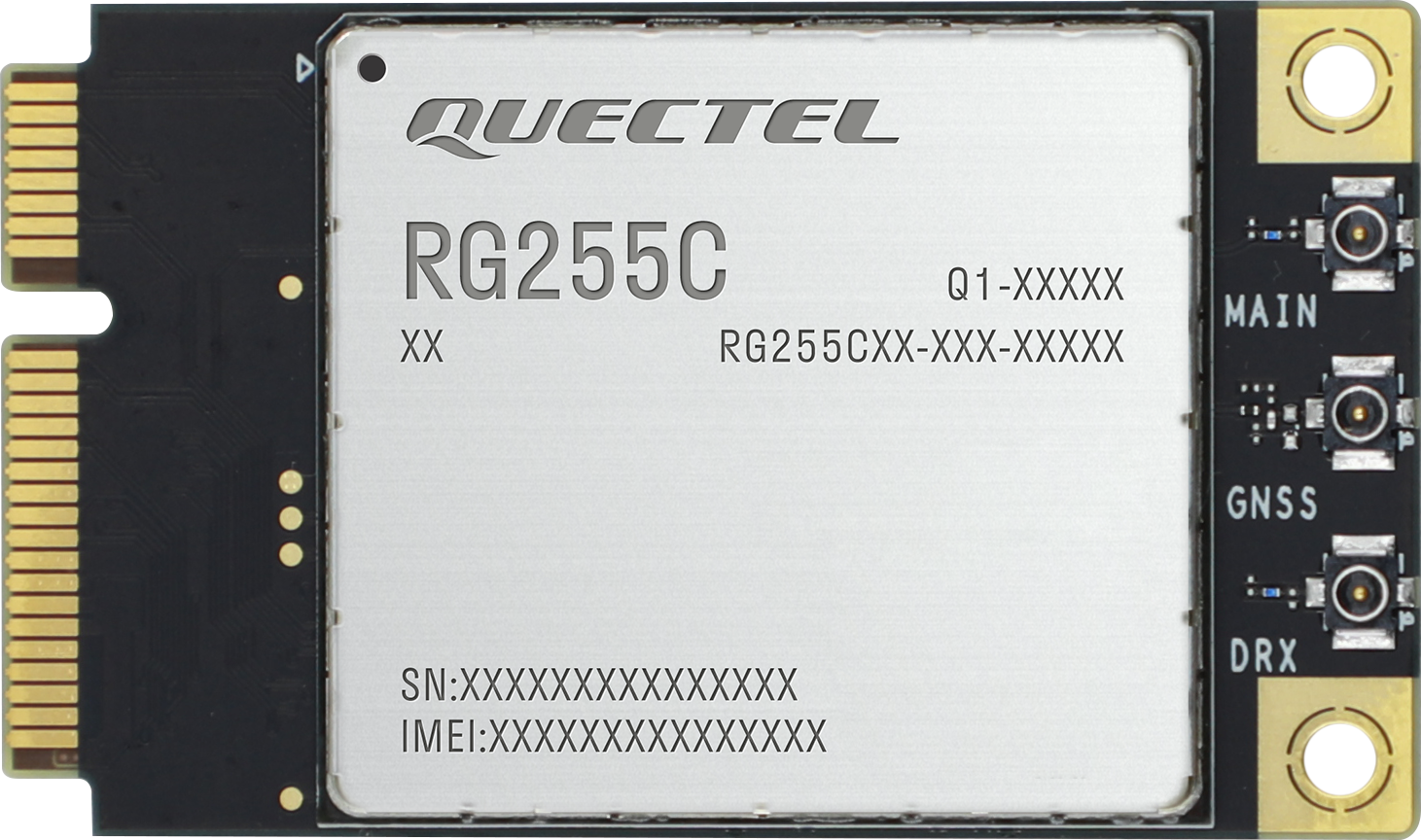

Quectel 5G RedCap RG255C M.2 series Module

Overview

RG255C M.2 series module is a 5G sub-6 GHz M.2 module. Based on 3GPP Rel-17 RedCap technology, with features of 5G LAN*/ URLLC/ Slicing, the module supports a theoretical peak data rate of 223 Mbps downlink and 123 Mbps uplink. The module supports LTE Cat 4 and 5G sub-6 GHzSA mode, and is backward compatible with Rel-15 and Rel-16 networks. The module can meet customers’ different application demands for medium speed, large capacity, low latency, high reliability, etc., and is convenient for customers to design.

RG255C M.2 series module supports Qualcomm® IZat™ location technology Gen 9VT (GPS, GLONASS, BDS, QZSS, Galileo and NavlC*). The integrated GNSS receiver greatly simplifies product design and provides quicker, more accurate and more dependable positioning capability.

A rich set of internet protocols, industry-standard interfaces (USB 2.0, PCIe 2.0, PCM, etc.) and abundant functionalities (USB drivers for Windows 10/ 11, Linux and Android) extend the applicability of the module to a wide range of RedCap applications.
