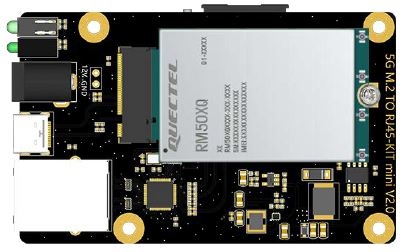

5G WWAN Card To RJ45 Adapter With SIM Slot
Product Model: 5G M.2 TO RJ45-KIT mini rev 2.0 . Lead time is 1-2 weeks, available for orders and tested well with Quectel RM50x modules ! R13 module firmware recommended.
The product is compact, plug and play, no need to install drivers. just plug in the pre-configured 5G module + 5G antenna + 5G SIM card, connect the network cable to use the 5G network, stable performance, fast and convenient use.
The product used wide 5 to 28V Operating Input Range DC-DC, Can adapt to customer different power supply range of products. The DC-DC Up to 3A output current, effectively ensure the stability of the product work.
The product size is small, easy to use, and after the customer installed integration.It can help customers to realize machine networking, state monitoring, remote equipment maintenance and other application requirements. It is suitable for intelligent factory, robot, video surveillance, intelligent power, electronic sentry and other fields.
User can use the TYPE-C to USB line to connect the board and computer. Then user can use AT Commands in the QCOM tool to manage the module. It is not a router, just adapter, but user can do ttl and change imei and other tune-up in the 5G module by AT command. Please take note that Quectel modules do not support TTL nor IMEI change by any AT command.
1. push the sim into the SIM CARD SOCKETS
2. Insert the 5G module into the seat of M.2 and lock the screws
3. Connect 5G antennas (not included in)
4. Connect the DC power supply.And use network cable to connect customer
equipment with the product. (DC and cable not included in)
5. Attention:Sometimes you may need set the APN through the USB DEBUG port
Specifications:
| Product Name |
5G M.2 WWAN Card to RJ45 Adapter Dongle with SIM Slot |
| Product Type |
5G M.2 to Ethernet Adapter (Non-router) |
| Description |
Adapter board enabling 5G M.2 modules to output Ethernet (RJ45) connectivity |
| Compatible Modules |
Quectel RM500Q, RM502Q, RM510Q, RM520N,
RM550 series, SIMCOM8200, Semtech, Sierra Wireless modules
|
| Supported Networks |
5G NR, 4G LTE |
| Mode Support |
Depends on installed module (NSA / SA supported via module) |
| Interface (Module) |
M.2 Key-B slot |
| Network Output |
RJ45 Ethernet port |
| Additional Interfaces |
USB Type-C (debug/control via AT commands) |
| SIM Interface |
SIM card slot (onboard) |
| Antenna Interfaces |
External antennas required (typically 4x for 5G) |
| Power Input |
Wide DC input (5V – 28V typical) |
| Power Output |
Up to 3A regulated output for module |
| Operation Mode |
Plug-and-play hardware (software configuration via AT commands) |
| Driver Requirement |
No drivers required for basic operation |
| Management |
AT commands via USB interface |
| Cooling |
Passive cooling (some versions include heatsink) |
| Dimensions |
Compact form factor (varies by revision) |
| Function |
Converts cellular module data to Ethernet connection |
