Imagine a car that can stay connected even in the toughest weather, delivering instant data for navigation, safety alerts, and entertainment. The Quectel AG55xQ-EU, 5G Automotive Module is a compact, rugged communication chip designed for modern vehicles. Drivers and manufacturers often struggle with unreliable networks, slow updates, and limited coverage. This module solves those problems by bringing fast, reliable 5G and multi-band support directly to the vehicle.

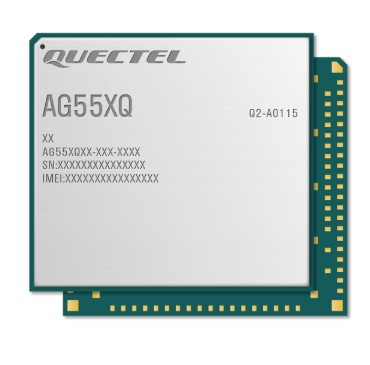

Quectel AG55xQ-EU, 5G Automotive Module
Cars need a steady link to the cloud for real-time maps, over-the-air updates, and emergency calls. When the link drops, the driver loses critical information and the vehicle may not meet safety regulations. This module removes that risk. It combines 5G SA/NSA, LTE, and legacy bands in one small board, giving you seamless coverage across Europe, Asia, and the Americas. The result is a stable, high-speed connection that works in extreme temperatures and harsh automotive environments.
Key Features
- 5G NR bands n1, n3, n8, n20, n28, n41, n78.
- LTE FDD/TDD and legacy GSM/3G bands for global roaming.
- Peak downlink up to 2.4 Gbps (5G NSA) and uplink 550 Mbps.
- Multiple antenna ports: main, diversity, MIMO3, MIMO4, C-V2X.
- USB 2.0/3.1, PCIe 3.0, UART, I2C, SPI, and RGMII interfaces.
- Integrated voice codec with VoLTE, echo cancellation, and noise suppression.
- eCall, DFOTA, and QuecOpen Linux support for easy software updates.
- Security features: TrustZone, Secure Boot, SELinux, optional TPM.
- Power consumption as low as 0.04 mA in off mode and 1.4 mA in sleep.
- CE and RCM certifications for European and Australian markets.
Specifications
| General |
|
| Product Series |
Quectel AG55xQ-EU |
| Technology |
5G NR |
| Region |
EMEA, Australia, Korea, India, Latin America, Southeast Asia |
| Dimensions |
54.5 mm × 53.0 mm × 3.45 mm |
| Operating Conditions |
|
| Operating Temperature |
-35 °C to +75 °C |
| Extended Temperature |
-40 °C to +85 °C |
| eCall Operating Temperature |
-40 °C to +95 °C |
| Frequency Bands |
|
| 5G FDD |
n1 / n3 / n8 / n20 / n28 |
| 5G TDD |
n41 / n78 |
| LTE-FDD |
B1 / B2 / B3 / B4 / B5 / B7 / B8 / B20 / B28 / B32 (Rx only) |
| LTE-TDD |
B38 / B40 / B41 / B42 |
| WCDMA |
B1 / B3 / B5 / B6 / B8 |
| GSM |
850 / 900 / 1800 / 1900 MHz |
| C-V2X |
B47 (For AG550Q/AG553Q Series) |
| Data Transmission (Peak Rate) |
|
| 5G SA |
2.0 Gbps (DL) / 450 Mbps (UL) |
| 5G NSA |
2.4 Gbps (DL) / 550 Mbps (UL) |
| LTE-FDD |
1.6 Gbps (DL) / 200 Mbps (UL) |
| LTE-TDD |
1.4 Gbps (DL) / 120 Mbps (UL) |
| DC-HSDPA / HSUPA |
42 Mbps / 5.76 Mbps |
| WCDMA |
384 kbps (DL) / 384 kbps (UL) |
| EDGE |
296 kbps (DL) / 236.8 kbps (UL) |
| GPRS |
107 kbps (DL) / 85.6 kbps (UL) |
| C-V2X |
48 Mbps (Tx) / 48 Mbps (Rx) |
| Interfaces |
|
| USB |
USB 2.0 / 3.1 × 1 |
| UART |
×3 (UART1 / Debug / Bluetooth UART) |
| (U)SIM |
×2 |
| PCIe |
PCIe 3.0 ×1 |
| I2C |
×1 |
| I2S |
×1 |
| Digital Audio (PCM) |
×1 |
| SDIO |
×1 (for eMMC / SD) |
| ADC |
×2 (15-bit) |
| RGMII |
×1 |
| SPI |
×1 |
| RESET_N |
×1 (Reset the module) |
| GPIO |
×15 (For QuecOpen® version only) |
| Antenna Interfaces |
|
| Main Antenna |
×1 (2G/3G/4G TRx0, n1/n3/n8/n20/n28 TRx0 SA/NSA, 4G B42 DRx0, n41/n78 DRx0) |
| Diversity Antenna |
×1 (3G/4G/5G DRx0, n41 DRx1, 4G B42 TRx0, n78 TRx0 SA/NSA) |
| MIMO3 |
×1 (4G MHB Rx1, 4G B42 Rx1, n41 TRx0 SA/NSA, n1/n3/n78 Rx1) |
| MIMO4 |
×1 (4G MHB DRx1, 4G B42 Rx1, n41 DRx1, n1/n3/n78 DRx1) |
| DSDA - Main |
×1 (2G/4G TRx0) |
| DSDA - Diversity |
×1 (3G/4G DRx0) |
| C-V2X Antenna |
×2 (TRx0/TRx1) |
| GNSS Antenna |
×1 |
| Voice |
|
| Speech Codec Modes |
HR / FR / EFR / AMR / AMR-WB |
| Echo Processing |
Echo Cancellation / Noise Suppression |
| VoLTE |
Digital Audio and VoLTE (Voice over LTE) |
| SMS |
|
| Point-to-point MO and MT |
Supported |
| SMS Cell Broadcast |
Supported |
| Text and PDU Mode |
Supported |
| Enhanced Features |
|
| eCall |
Supported |
| DFOTA |
Supported |
| QuecOpen® (Open Linux) |
Supported |
| PCIe for WLAN Function |
Supported |
| UART/PCM for Bluetooth Function |
Supported |
| (U)SIM Detection |
Supported |
| Temperature Management |
Supported |
| eSIM (eUICC) |
Optional |
| Single-Frequency GNSS (GPS/GLONASS/BeiDou/Galileo/QZSS) |
Optional |
| Dual-Frequency GNSS (L1 + L5) |
Optional |
| PPE (RTK) |
Optional |
| QDR 3.0 (External IMU Required) |
Optional |
| Gigabit Ethernet |
Optional |
| 1 GB NAND + 1 GB DDRAM |
Optional |
| Security |
|
| Security Features |
TrustZone, TPM* (External HSM required), Secure Boot, SELinux |
| ESD / EMI Protection |
|
| Protection |
Realized through internal specific circuits and components |
| Certifications |
|
| Regulatory |
AG551Q-EU: CE / RCM* |
| Carrier |
TBD |
| Other Certifications |
TBD |
| Software Drivers |
|
| USB ECM Driver |
Linux 2.6–5.12 |
| USB RNDIS Driver |
Windows 7/8/8.1/10, Linux 2.6–5.12 |
| USB GobiNet Driver |
Linux 2.6–5.12 |
| USB QMI_WWAN Driver |
Linux 3.4–5.12 |
| USB Serial Driver |
Windows 7/8/8.1/10, Linux 2.6–5.12, Android 4.x–11.x |
| Electrical Features |
|
| Supply Voltage (VBAT_BB/VBAT_RF) |
3.3–4.3 V (typ. 3.8 V) |
| Supply Voltage (VBAT_C-V2X) |
4.75–5.25 V (typ. 5.0 V) |
| Power Consumption (Power Off) |
0.04 mA |
| Power Consumption (Sleep, typ.) |
1.40 mA |
| Power Consumption (Idle) |
25.0 mA |
