Imagine a car that can talk to the network at lightning speed, even in the toughest weather. The Quectel AG57xQ-EU, 5G NR Module makes that possible. It is a compact automotive-grade 5G modem designed for connected cars, trucks, and smart-city vehicles. Many manufacturers struggle with slow data links, dropped connections, and limited coverage, which hurts driver experience and fleet efficiency. This module gives you the reliable, high-speed link you need to keep vehicles online and data flowing.

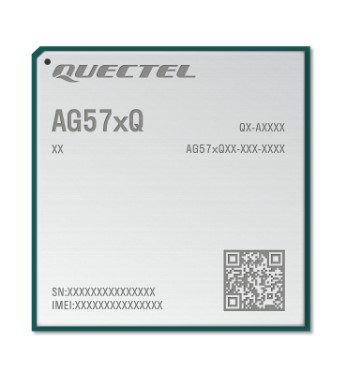

Quectel AG57xQ-EU, 5G NR Module
The main problem is unstable or low-bandwidth connectivity in moving vehicles. When a car loses its link, navigation, over-the-air updates, and telematics data stop, leading to safety risks and higher operating costs. This matters because modern fleets rely on real-time information to route efficiently and keep passengers safe. The Quectel module solves the issue by supporting both 5G SA and NSA, LTE Cat 16, and a wide range of frequency bands, delivering up to 2.4 Gbps downlink even in harsh environments.
Key Features
- Form factor: compact LGA 54.5 53.0 3.45 mm.
- Supports 5G NSA (n41/78) and 5G SA (n1/3/5/8/20/28A/38/40/41/78).
- LTE Cat 16 with downlink up to 1.2 Gbps.
- Dual (U)SIM slots for redundancy and DSDA.
- USB 2.0/3.1, PCIe 3.0, and RGMII for high-speed data paths.
- Three UART ports, including a debug UART.
- Integrated GNSS (GPS, GLONASS, BeiDou, Galileo, QZSS).
- C-V2X support with 30 Mbps Tx/Rx for vehicle-to-everything communication.
- 15-bit dual ADC for precise analog measurements.
- GPIO bank of 15 pins for custom control signals.
- Software drivers for Android RIL, GNSS, USB ECM, RNDIS, GobiNet, QMI_WWAN, and USB serial.
Specifications
| General |
|
| Product |
Quectel AG57xQ-EU |
| Description |
5G NR Automotive Module |
| Region |
EMEA / Australia / South Korea / India / Southeast Asia |
| Form Factor |
LGA |
| Dimensions |
54.5 × 53.0 × 3.45 mm |
| Temperature Range |
|
| Operating Temperature |
-40°C to +85°C |
| Frequency Bands |
|
| 5G NSA |
n41/78 |
| 5G SA |
n1/3/5 (or n71)/8/20/28A/38/40/41/78 |
| LTE Category |
LTE Cat 16 |
| LTE-FDD |
B1/B3/B5 or B71/B7/B8/B20/B28A/B32 |
| LTE-TDD |
B38/B40/B41/B42* |
| WCDMA |
B1/B3/B5/B8 |
| GSM |
900/1800 MHz |
| GNSS |
GPS/GLONASS/BeiDou/Galileo/QZSS |
| Data Transmission (Max.) |
|
| 5G SA |
2.0 Gbps (DL) / 450 Mbps (UL) |
| 5G NSA |
2.4 Gbps (DL) / 550 Mbps (UL) |
| LTE FDD |
1.2 Gbps (DL) / 100 Mbps (UL) |
| LTE TDD |
1.0 Gbps (DL) / 60 Mbps (UL) |
| DC-HSDPA/HSUPA |
42 Mbps (DL) / 5.76 Mbps (UL) |
| WCDMA |
384 kbps (DL) / 384 kbps (UL) |
| EDGE |
296 kbps (DL) / 236.8 kbps (UL) |
| GPRS |
107 kbps (DL) / 85.6 kbps (UL) |
| C-V2X |
30 Mbps (Tx) / 30 Mbps (Rx) |
| Interfaces |
|
| (U)SIM |
×2 |
| UART |
×3 (UART1 / Debug UART / BT UART) |
| USB 2.0/3.1 |
×1 |
| PCIe 3.0 |
×1 |
| I2C |
×1 |
| I2S |
×1 |
| RGMII |
×1 |
| SDIO |
×1 (for eMMC/SD) |
| SPI |
×2 |
| PCM |
×1 |
| ADC |
×2 (15-bit) |
| GPIO |
×15 (For QuecOpen® version only) |
| RESET_N |
×1 (Reset the module) |
| Antenna |
Main ×1; Diversity ×1; MIMO 3 ×1; MIMO 4 ×1; C-V2X ×2; GNSS ×1; DSDA ×2 |
| Software Features |
|
| RIL Driver |
Android 4.x/5.x/6.x/7.x/8.x/9.x |
| GNSS Driver |
Android 4.x/5.x/6.x/7.x/8.x/9.x |
| USB ECM Driver |
Linux 2.6–6.7 |
| USB RNDIS Driver |
Windows 10/11; Linux 2.6–6.7 |
| USB GobiNet Driver |
Linux 2.6–6.7 |
| USB QMI_WWAN Driver |
Linux 3.4–6.7 |
| USB Serial Driver |
Windows 10/11; Linux 2.6–6.7 |
