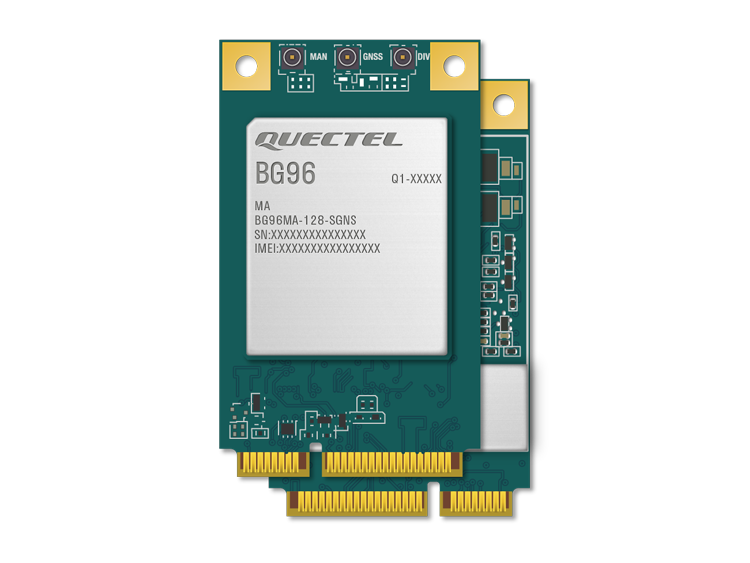

Quectel LPWA BG96 Cat M1/NB1/EGPRS Mini PCIe

Overview

The BG96 Mini PCIe is a multi-band LTE Cat M1/Cat NB1/EGPRS module which achieves maximum downlink rates of 375Kbps and uplink rates of 375Kbps. It has a highly integrated and cost-effective standard PCI Express Mini Card form factor measuring 51.0mm × 30.0mm × 4.9mm which allows integrators and developers to benefit from its mechanical intensity and low power consumption and design their applications with ease.

A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux etc.) allow the module to serve a wide range of IoT applications such as wireless POS, smart metering, asset tracking and more.

Key features

• Global coverage with LTE Cat M1/Cat NB2/EGPRS
• Easy migration from Quectel LTE Mini PCIe modules
• ARM A7 Processor
• Multi-constellation GNSS receiver
• USB 2.0 interface
• Supports DFOTA
• Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design and development efforts
• Robust mounting and interfaces

Specifications:
