Overview

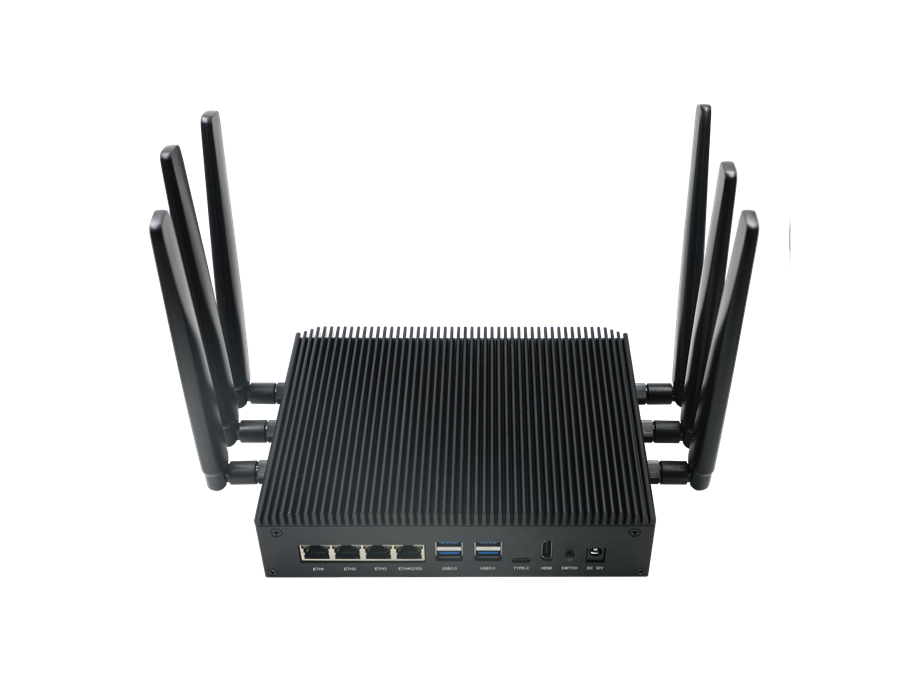

The QB560D series is Quectel’s new multi-mode 5G edge computing box with built-in Ubuntu OS. Based on the Quectel SG560D high-performance module, the product features a 64-bit octa-core processor and the AdrenoTM 643 GPU. It is an ideal device for industrial and consumer applications that require high data rates and computing power. The QB560D series is available in two variants: QB560D-CN and QB560D-WF.
Compliant with 3GPP Release 15 specification, the product supports 5G NSA, SA, 4G, and 3G network. In addition, it supports Wi-Fi 6E & DBS, Wi-Fi 2 × 2 MU-MIMO, and Bluetooth 5.2.
A rich set of interfaces (such as HDMI, ethernet, UART, USB, DP over USB, RS-232, and RS-485) extend the applicability of the product to a wide range of M2M applications. It can be widely used in many edge computing applications such as smart retail, smart parks, smart safety, and industrial applications.
Features:
- Ubuntu OS
- Worldwide 5G/ 4G/ 3G coverage
- Wi-Fi 6E & DBS, IEEE 802.11ax, 2 × 2 MU-MIMO
- 5G & LTE MIMO technology for high data rate and network reliability
- 4K H.265/ H.264 video encoding and decoding
- 14 TOPS comprehensive computing power
- 12 TOPS edge computing power
- Qualcomm AdrenoTM 643 GPU
Specifications:
| Product Type |
Multi-mode 5G edge computing box
|
| Frequency |
5G sub-6GHz
|
| Performance |
LTE Cat 18
|
| Connectivity |
Bluetooth 5.2
|
| Wireless |
Wi-Fi 6E
|
| Dimensions |
200 mm × 154.7 mm × 51.3 mm
|
| Opreating Temperature |
-35 °C to +75 °C
|
