Quectel RM500Q-GL 5G Sub-6GHz M.2 Module

Many developers need a reliable way to add fast 5G connectivity to small devices, but they often face bulky antennas, high power draw, and limited band support. When a device cannot keep up with modern networks, users experience slow downloads, dropped calls, and missed updates. The Quectel RM500Q-GL 5G Sub-6GHz M.2 Module solves these issues by delivering high-speed 5G and LTE in a tiny M.2 form, low power consumption, and global band coverage, so your product stays fast and connected wherever it goes.

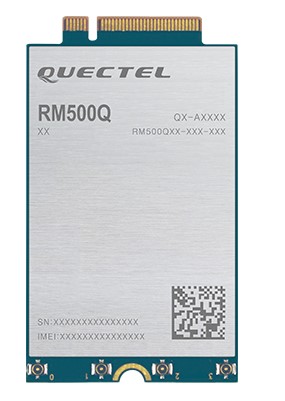

Quectel RM500Q-GL 5G Sub-6GHz M.2 Module with Quectel

Imagine a tiny chip that brings carrier-grade 5G into a laptop, a drone, or an industrial sensor. The Quectel RM500Q-GL is exactly that - a Sub-6 GHz 5G module built for M.2 slots. It lets you upgrade any compatible board to 5G NSA/SA, LTE-Cat 16, and even GNSS positioning. If your project needs faster data, lower latency, or reliable global roaming, this module gives you the network edge without redesigning the whole hardware.

Key Features

• Sub-6 GHz 5G NR, NSA and SA, covering n1-n79 bands.
• LTE-Cat 16 downlink, Cat 18 uplink for seamless fallback.
• 4 x 4 downlink MIMO, 2 x 2 uplink MIMO for strong throughput.
• Four antenna ports to maximize signal gain.
• Supports GPS, GLONASS, BeiDou, and Galileo for precise positioning.
• USB 2.0, USB 3.0/3.1, and PCIe 3.0 interfaces for flexible integration.
• Power supply 3.135-4.4 V, typical 3.7 V, with sleep mode under 5 mA.
• DFOTA and DTMF support for over-the-air updates and tone signaling.
• Certified for GCF, CE, SRRC, KC, RCM and carrier-approved in Europe, China, Korea.

Specifications
