Overview

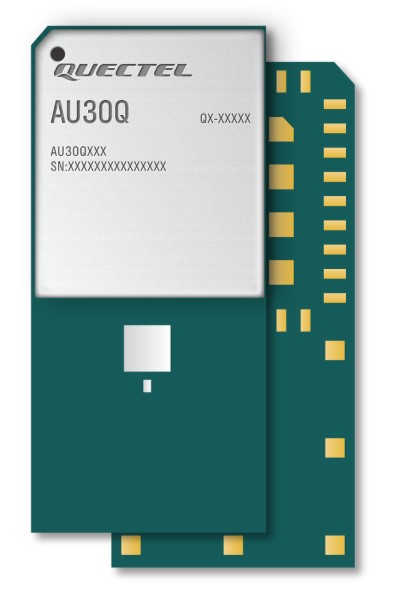

The AU30Q is an automotive grade UWB module which conforms to the Car Connectivity Consortium specification, in a compact and unified form factor of 12.0mm × 25.0mm × 2.45mm, making it an ideal UWB solution for size sensitive applications, helping customers reduce product size and optimize application design cost.
The surface mount technology enhances durability and robustness, and the LGA package ensures the module can be easily embedded into size-constrained applications to provide reliable connectivity. The advanced package allows for the strict requirements on cost and efficiency of large-scale automated manufacturing.
Designed with a reliable SPI interface to provide UWB Location capability, AU30Q achieves low-power, high-precision location and data transmission. It can be used in SS-TWR, DS-TWR, TDoA and PDoA systems to locate assets to an accuracy of 10cm. Coupled with its compact size and extended temperature range, the AU30Q module can meet the design requirements of digital car key applications in the automotive industry.
Key features
- Supports UWB Channels 5(6.5GHz) and 9(8GHz)
- Internal antenna
- SPI interface to host processor
- 2-way ranging or TDoA Location system
- Data rates of 850kbps, 6.8Mbps
- IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant
- Fully aligned with FiRa PHY, MAC and certification development
- Low power consumption
- Integrated MAC support features
- Fast time-to-market: simple design minimizes design-in time and development efforts
Specifications:
| General |
|
| Product Grade |
Automotive grade UWB module |
| Form Factor |
LGA form factor |
| Dimensions |
12.0 mm × 25.0 mm × 2.45 mm |
| Performance |
|
| Data Rates |
850 kbps (BRRF) and 6.8 Mbps (BPRF) |
| Data Rates |
850 kbps, 6.8 Mbps |
| Operating Conditions |
|
| Operating Temperature Range |
-40°C to +85°C |
| UWB Features |
|
| Supported UWB Channels |
Supports UWB Channels 5 (6.5 GHz) and 9 (8 GHz) |
| Antenna |
Internal antenna |
| Positioning |
2-way ranging or TDoA Location system |
| Interfaces |
|
| Host Interface |
SPI interface to host processor |
| Standards & Compliance |
|
| IEEE Compliance |
IEEE 802.15.4-2015 and IEEE 802.15.4z BPRF compliant |
| FiRa Support |
Fully aligned with FiRa PHY, MAC and certification development |
| Power & Integration |
|
| Power Consumption |
Low power consumption |
| MAC Features |
Integrated MAC support features |
| Time-to-Market |
Fast time-to-market: simple design minimizes design-in time and development efforts |
