Overview

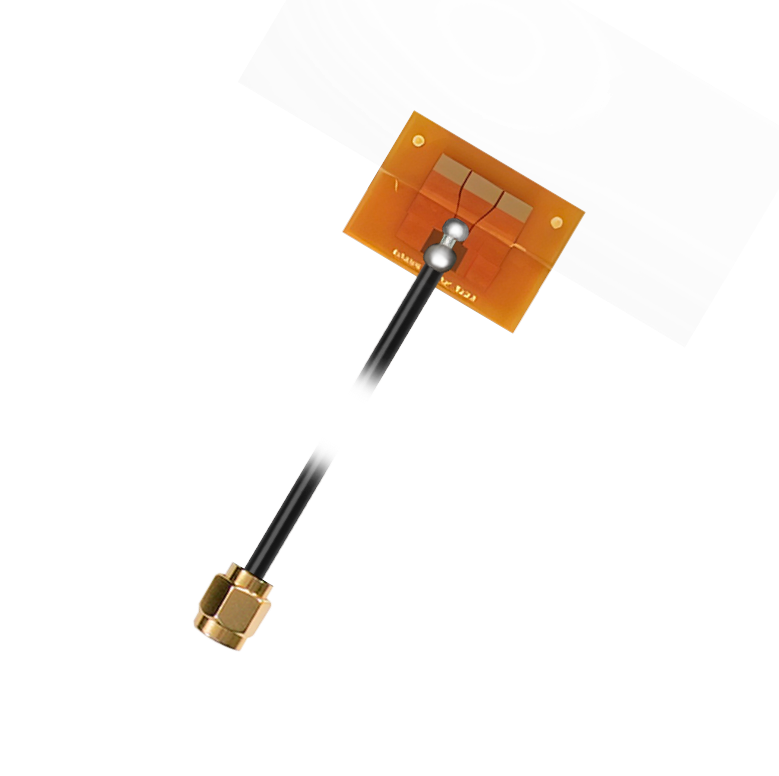

YFCX001WWAH is 5G an omni-directional transparent antenna with a frequency band of 600–960MHz, 1450–2690MHz, 3300–6000MHz and is RoHS and REACH compliant. Its transparent mounting means that it can be placed on surfaces such as ceilings and walls where it can be connected almost invisibly so is ideal for applications where the antenna is required to be discreet.
The YFCX001WWAH leverages advanced material science and micro-manufacturing techniques to deliver high signal efficiency in a near invisible form. Utilizing nano-scale fabrication, it ensures precise signal transmission while maintaining over 85% transparency, allowing seamless integration into glass, plastic, and composite materials. Its ultra-thin design, measuring just 0.123mm thick (about the thickness of an A4 sheet), makes it ideal for space-constrained applications, eliminating the need for bulky external antennas.
The ultra-thin design enables lightweight and ergonomic designs making it suitable for for wearables, automotive, and industrial applications across multiple industries, including VR and AR wearables, automotive, smart agriculture and smart cities. Additionally, the antenna is built with multi-layer flexible composite materials, allowing installation on curved surfaces, transparent displays, and architectural glass, enhancing connectivity across smart agriculture, smart cities, and industrial IoT environments.
Features:
- Optimized for 5G networks
- Adhesive backing/glass interlayer mount
- SMA male connector
Specifications:
|
Category
|
|
|
Manufacturer
|
|
|
Series
|
|
|
RF Family/Standard
|
|
|
Frequency Group
|
|
|
Frequency (Center/Band)
|
|
|
Frequency Range
|
700MHz ~ 960MHz, 1.45GHz ~ 2.69GHz, 3.3GHz ~ 6GHz
|
|
Antenna Type
|
|
|
Number of Bands
|
|
|
Gain
|
|
|
Features
|
|
|
Termination
|
|
|
Mounting Type
|
|
|
Applications
|
|
