Stop worrying about traffic floods that can shut down your site. The Radware Defensepro X800, 200 Gbps 2U DDoS Mitigation Appliance is a powerful hardware box that protects your network from massive DDoS attacks. If you run an online service, a financial portal, or a gaming platform, a sudden surge of malicious traffic can cost you customers, reputation, and revenue. This appliance gives you the strength to block those attacks before they reach your servers.

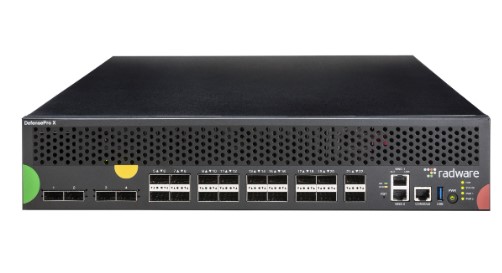

Radware Defensepro X800, 200 Gbps 2U DDoS Mitigation Appliance
The main problem it solves is the inability to handle large-scale DDoS floods that overwhelm ordinary firewalls. When traffic spikes beyond normal capacity, your applications become unavailable and your users leave. This appliance detects, scrubs, and drops malicious packets while letting legitimate traffic flow, so you keep your services online even during the biggest attacks. It delivers up to 3.4 Tbps of blocking throughput and supports advanced SSL/TLS decryption, giving you a clear, reliable shield.
Key Features
- Maximum programmable mitigation throughput of 800 Gbps.
- On-demand clean throughput of 380 Gbps.
- DDoS flood prevention rate of 1.119 Bpps.
- SSL/TLS decryption with hardware acceleration and TLS 1.3 support.
- Multiple deployment modes: inline, SPAN, copy port, and out-of-path scrubbing.
- Advanced block actions including drop, reset, suspend, and challenge-response for TCP, HTTP, and DNS.
- Fail-open/fail-close logic for optical transceivers ensures continuous operation.
- Dual 970 W power supplies, 80 PLUS certified, with 3,300 BTU/h heat dissipation.
- Compliance with RoHS, ECCN 5A002.a.2, and 1-year warranty with Certainty Support.
Specifications
| PROGRAMMABLE MITIGATION PERFORMANCE |
| Product Type |
DDoS Protection / Mitigation Platform |
| Maximum Programmable Mitigation Throughput |
800 Gbps |
| On-Demand Scalable Clean Throughput |
380Gbps |
| DDoS Flood Attack Prevention Rate |
1.119 Bpps |
| SSL / TLS DECRYPTION |
| Legitimate Traffic Throughput |
200 KCPS (RSA 2K) |
TLS 1.3 Perfect Forward Secrecy (PFS)
HW Acceleration Support |
Yes |
| INSPECTION PORTS |
| 10 /100/1000 Copper Ethernet |
Supported |
| 1 GE / 10 GE |
Supported |
| 10 GE / 25 GE |
Supported |
| 40 GE |
Supported |
| 100 GE Ports |
18 × QSFP28 |
| 400 GE Ports |
4 × QSFP-DD* |
| BLOCKING PERFORMANCE |
| Maximum DDoS Blocking Throughput |
3.4 Tbps |
| Maximum DDoS Blocking Rate |
2.7 Billion PPS |
| MANAGEMENT PORTS |
| 10/100/1000 Copper Ethernet |
2 |
| Management Console |
RJ-45 |
| OPERATION MODE |
| Network Operation |
Transparent L2 Forwarding, IP Forwarding |
| Deployment Modes |
| Deployment Modes |
Inline, SPAN port monitoring, Copy port monitoring, Out-of-path mitigation (scrubbing center solution) |
| Tunneling Protocols |
| Tunneling Protocols |
VLAN Tagging, L2TP, MPLS, GRE, GTP, IPinIP |
| IPv6 |
| IPv6 |
Yes |
| Jumbo Frame |
| Jumbo Frame |
Supported |
| Block Actions |
| Block Actions |
Drop packet, reset (source, destination, both), suspend (source IP address, source port, destination IP address, destination port or any combination), challenge-response for TCP, HTTP and DNS suspicious traffic |
| HIGH AVAILABILITY |
| Fail-open/fail-close2 |
Internal fail-close for optical transceivers (e.g., QSFP28, QSFP-DD) |
| PHYSICAL |
| Dimensions |
424 x 600 x 88 mm (2U) EIA rack or standalone: 482 mm (19 in) |
| Weight |
Dual power supply: 27.5 kg (60.6 lbs.) |
| Power Supply |
80 plus certified AC:100–120V/200–240V, 47–63 Hz DC: -41 to -72V |
| Power Consumption |
Dual power supply: 970W |
| Heat Dissipation |
Dual power supply: 3,300 BTU/h |
| Operating Temperature |
0°–40°C (32°–104°F) |
| Humidity |
5% to 95% non-condensing |
| COMPLIANCE & CERTIFICATIONS |
| RoHS |
Compliant (EU directive 2011/65/EU, 2015/863/EU) |
| ECCN |
5A002.a.2 |
| Warranty |
1-year hardware and software maintenance |
| Support |
Certainty Support Program |
