Description

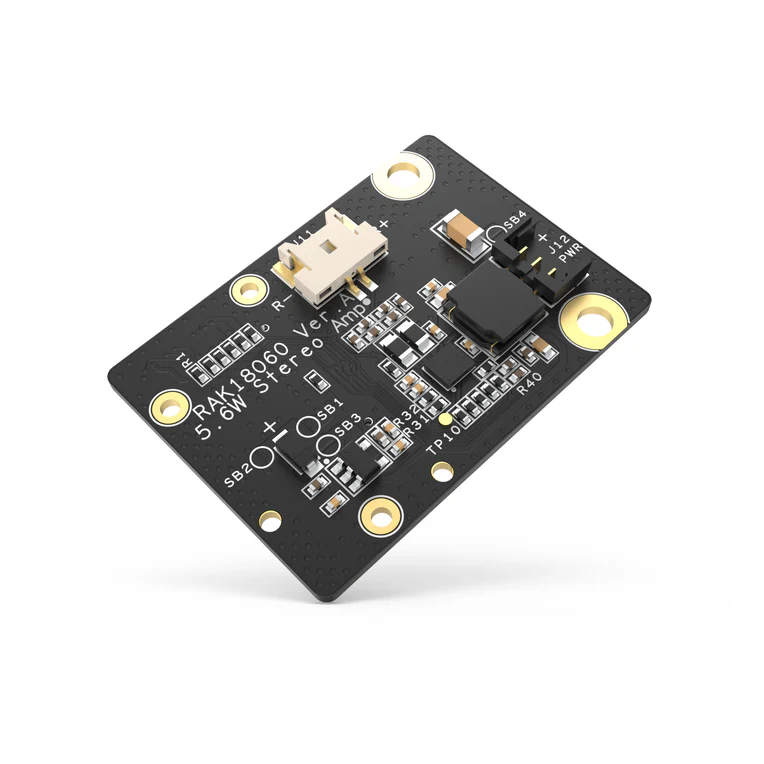

The RAK18060 is a 5.6W stereo amplifier module based on the Texas Instruments TAS2560 which extends the WisBlock system with sound generating capability.
The RAK18060 is a module that converts I2S digital audio to analog signals to drive a speaker. It supports left and right I2S audio channels and control over I2C.
The RAK18060 can be used in applications such as music players, audible alarms and really any device that needs speakers!
Features
- I2S interface for audio data and I2C interface for control
- 6 W at 1% THD*N into 4 Ohm Load from 4.2V supply
- High Efficiency Class-H Boost Converter
- Built-ln Speaker Sense and Automatic Gain Control
- Short-Circuit, and Under-voltage Protection
- Size 25mmx 35mm
Texas Instruments TAS2560 chip specifications:
- Manufacturer: Texas Instruments
- Chip Name: TAS2560
- Device Type: Smart Class-D Audio Amplifier with integrated DAC
- Audio Input Interface: I2S digital audio input
- Control Interface: I2C control interface
- Amplifier Type: Class-D smart amplifier
- Output Power: Up to 6 W into 4 Ω at 4.2 V supply
- Channels: Mono amplifier (two chips used for stereo in RAK18060)
- Integrated DAC: Ultra-low noise audio DAC included
- Boost Converter: Integrated Class-H boost converter
- Speaker Sense: Built-in voltage and current sensing for speaker protection
- Dynamic Range: Around 110 dB
- Signal Processing: Smart amplifier algorithm with speaker monitoring
- Protection Features: Thermal protection, overcurrent protection, short-circuit protection, undervoltage protection
- Supply Voltage: Approximately 2.7 V to 5.5 V
- Output Current Capability: High current Class-D output stage
- Efficiency: High efficiency Class-D architecture
- Application Areas: Smart speakers, IoT audio systems, portable audio devices, voice output systems
- Operating Temperature Range: −40°C to 85°C
- Package Type: WQFN package
- Speaker Support: 4 Ω to 8 Ω speakers
Specifications:
| Product Name |
RAK18060 Stereo Amplifier Module |
| Chipset |
Texas Instruments TAS2560 |
| Module Type |
Stereo Audio Amplifier |
| System |
WisBlock Audio Series |
| Function |
Converts I2S digital audio to analog speaker output |
| Amplifier Type |
Class-D Audio Amplifier |
| Audio Channels |
Stereo (Left and Right) |
| Output Power |
5.6 W stereo (6 W at 1% THD+N into 4Ω at 4.2V) |
| Audio Interface |
I2S |
| Control Interface |
I2C |
| DAC |
Integrated ultra-low noise DAC |
| Boost Converter |
High-efficiency Class-H boost converter |
| Speaker Sense |
Built-in speaker voltage and current sensing |
| Gain Control |
Automatic Gain Control (AGC) |
| Protection Features |
Thermal, short-circuit, under-voltage protection |
| Load Resistance |
4Ω to 8Ω speaker |
| Signal-to-Noise Ratio |
~110 dB |
| Power Supply (VBUS) |
2.9V – 5.5V |
| Battery Supply (VBAT) |
3.3V – 4.25V |
| Digital Supply |
3.0V – 3.6V |
| External Power Option |
Supported via solder bridge |
| Current Limit (Boost Converter) |
3 A (typical) |
| Output Current Limit |
4 A (Class-D output) |
| Operating Temperature |
-40°C to 85°C |
| Module Size |
25 mm × 35 mm |
| Connector |
40-pin WisBlock IO connector |
| Mounting |
WisBlock Base or Audio Stack |
| Application |
Music player, audio alarms, voice output, IoT speaker systems |
| Package Contents |
RAK18060 module, screws, amplifier power cable |
