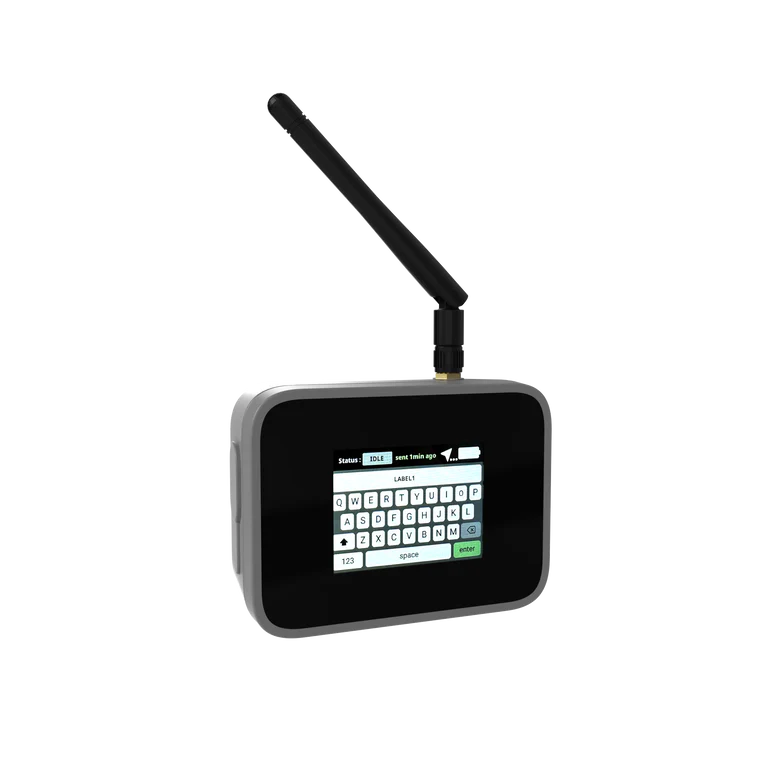

What Is Field Tester for LoRaWAN RAK10701-Plus?
The RAK10701-Plus Field Tester for LoRaWAN is a tool for LoRaWAN network deployment and coverage assessment. It provides gateway details, uplink and downlink RSSI/SNR, packet loss rates, and GPS location. The touch-screen LCD makes it easy to use.
It works with the WisGateOS 2 Field Test Extension and supports indoor and outdoor network coverage testing. It is compatible with AWS IoT, The Things Network, Chirpstack, and the built-in LNS. The rechargeable battery and USB Type-C charging make it suitable for field use. This tool simplifies the LoRaWAN network testing.
Why You Need Field Tester for LoRaWAN RAK10701-Plus
Deploying a LoRaWAN network? The RAK10701-Plus helps you verify coverage, locate weak spots, and optimize signal performance—right on-site. With real-time signal data, built-in GPS, and no need for external apps, it’s the smart tool every installer or network engineer should have in their toolkit.
Why it's useful:
- Real-time signal insights – See RSSI, SNR, and packet loss as you test
- Quickly check network health – Evaluate coverage and performance on the spot
- Standalone, no phone needed – Works fully on its own with a touch screen
- Durable and compact design – Built for rugged outdoor and indoor environments
- Plug-and-play compatibility – Supports WisGateOS2 Built-in LNS, TTN/TTI, Chirpstack, and AWS IoT Core for LoRaWAN
Key Features of Field Tester for LoRaWAN RAK10701-Plus
- Real-time RSSI/SNR and PLR Monitoring
- RAK Patented Packet Loss Rate Calculation
- Indoor and Outdoor Testing Modes
- Flexible Location Labeling
- Offline Testing with Built-in LNS
- Graphical Signal Strength Visualization
- Simplified Configuration
- Comprehensive CSV Reports
Key Benefits of Field Tester for LoRaWAN RAK10701-Plus
Quickly test LoRaWAN signal strength and packet loss on-site with accurate, real-time results.
- Real-time performance data: See RSSI, SNR, and packet loss live
- All-in-one, no app needed: Use it independently with touch screen controls
- Easy test location tagging: Label each spot directly on the device
Specifications:
| Product Name |
RAK10701-Plus Field Tester Plus |
| Manufacturer |
RAKwireless |
| Product Type |
LoRaWAN Field Tester / Network Coverage Mapping Device |
| Technology |
LoRaWAN |
| LoRaWAN Version |
LoRaWAN 1.0.3 Class A |
| Frequency Bands |
EU868, US915, AU915, RU864, IN865, KR920, AS923 |
| Display |
Touchscreen LCD |
| Antenna |
External LoRa antenna (2.0 dBi / 2.3 dBi / 2.8 dBi options) |
| GPS |
Built-in GPS for location and distance measurement |
| Connectivity |
Built-in LNS, TTN, ChirpStack, AWS IoT Core for LoRaWAN |
| Wireless Configuration |
BLE support via WisToolBox Mobile App |
| Data Monitoring |
RSSI, SNR, Packet Loss Rate, Gateway count |
| Testing Modes |
Field Tester Mode, LinkCheck Mode |
| Data Export |
CSV reports and heatmap generation |
| Battery |
3200 mAh rechargeable battery |
| Charging Interface |
USB Type-C |
| Battery Life |
12+ hours field operation |
| Operation |
Standalone (no phone required) |
| Indoor/Outdoor Support |
Yes (GPS or manual labeling) |
| Gateway Compatibility |
WisGateOS 2 gateways and third-party LNS |
| Metrics Displayed |
Uplink & Downlink RSSI, SNR, Packet loss, Distance to gateway |
| Additional Features |
Location labeling, real-time signal graph, offline testing |
| Applications |
LoRaWAN deployment, coverage testing, network planning, signal mapping |
