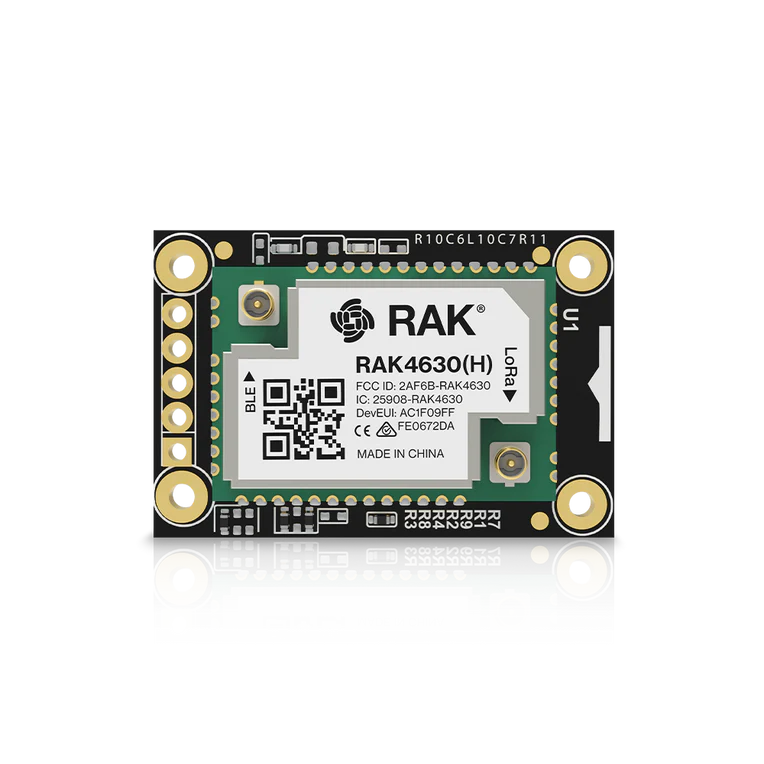

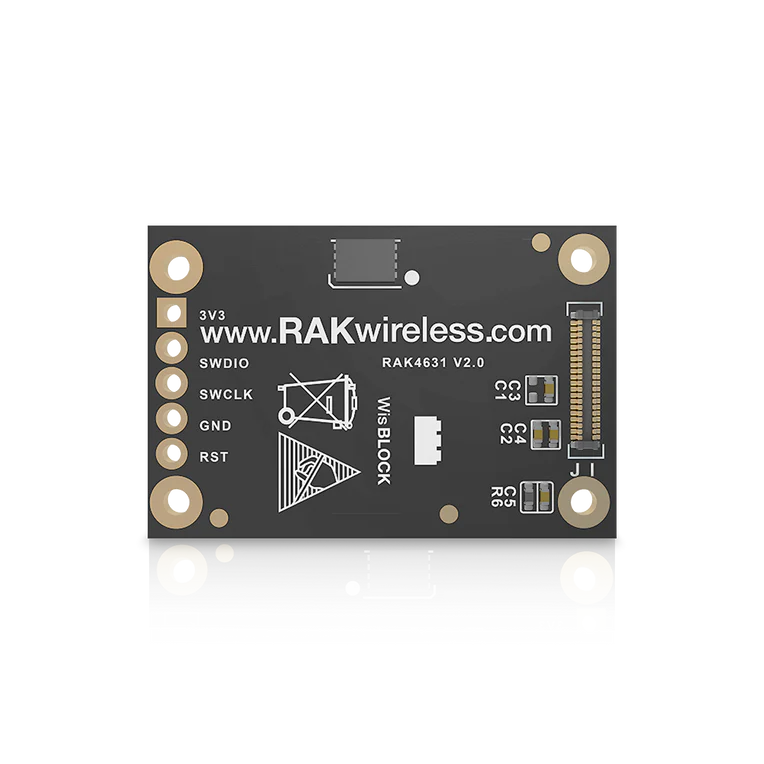

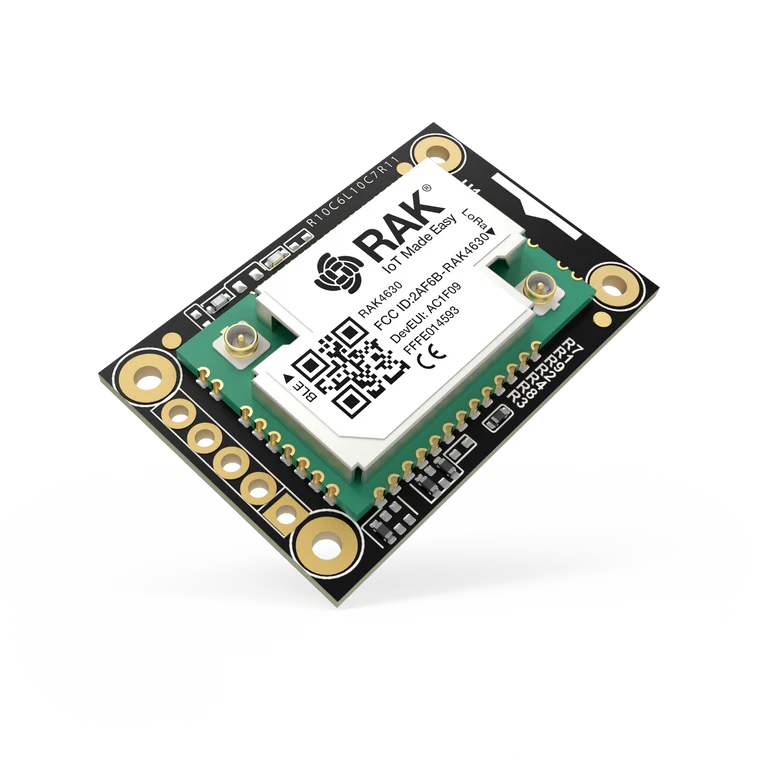

RAK Nordic nRF52840 BLE Core Module for LoRaWAN with LoRa SX1262

Tired of unreliable wireless links that break your IoT projects? The RAK Nordic nRF52840 BLE Core Module for LoRaWAN with LoRa SX1262 gives you a single board that talks both Bluetooth Low Energy and LoRaWAN. It is built for developers who need long-range, low-power connectivity without juggling many chips. If you have been fighting with missed packets, short battery life, or complex wiring, this module solves those headaches in one compact package.

RAK Nordic nRF52840 BLE Core Module for LoRaWAN with LoRa SX1262

Many IoT nodes fail because the radio cannot reach far enough or drains the battery quickly. This matters when you place sensors in fields, factories, or remote meters where you cannot replace power often. The RAK module combines a powerful nRF52840 MCU with a high-gain SX1262 LoRa transceiver and BLE 5.0, delivering up to +22 dBm TX power, a 170 dB link budget and ultra-low sleep current. It also includes a TCXO for stable frequency and IPEX connectors for separate antennas, so you get reliable links in harsh industrial temperature ranges.

Benefits

• Long-range LoRaWAN up to 15 km saves you from adding repeaters.
• BLE 5.0 lets you configure devices locally with a phone.
• 64 MHz ARM Cortex-M4F runs complex algorithms without lag.
• Ultra-low power design keeps battery life in the hundreds of days.
• Easy programming via Arduino IDE or PlatformIO speeds development.

Usages

You can mount this module on a WisBlock base board and turn it into a smart-agriculture node that reports soil moisture over LoRaWAN while a technician configures it via BLE. The same hardware works for city-wide air-quality sensors, industrial equipment monitors, or asset-tracking tags that need both long-range uplink and nearby Bluetooth access. It also fits wildlife tracking collars, smart parking meters, and remote water-meter readers, giving you flexibility across many projects.

Key Features

• Nordic nRF52840 MCU with 32-bit ARM Cortex-M4F
• 1 MB flash and 256 KB RAM for code and data
• Semtech SX1262 LoRa transceiver supporting LoRaWAN 1.0.2/1.0.3
• Bluetooth Low Energy 5.0 radio
• Up to +22 dBm transmit power and 170 dB link budget
• UART, I2C, SPI, ADC, USB, GPIO interfaces
• IPEX connectors for separate LoRa and BLE antennas
• Integrated TCXO for stable frequency
• Compatible with WisBlock Base and sensor modules
