Description

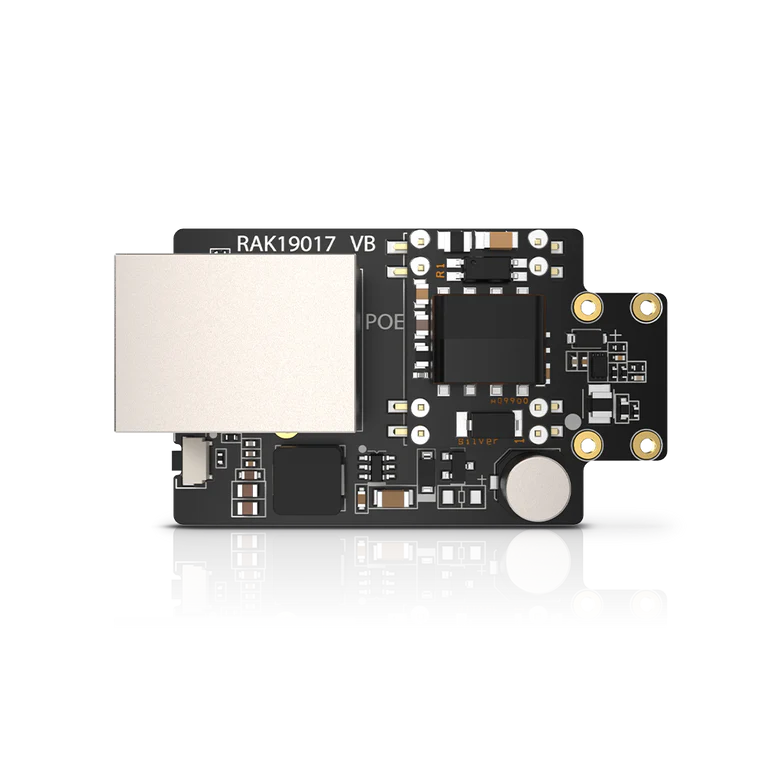

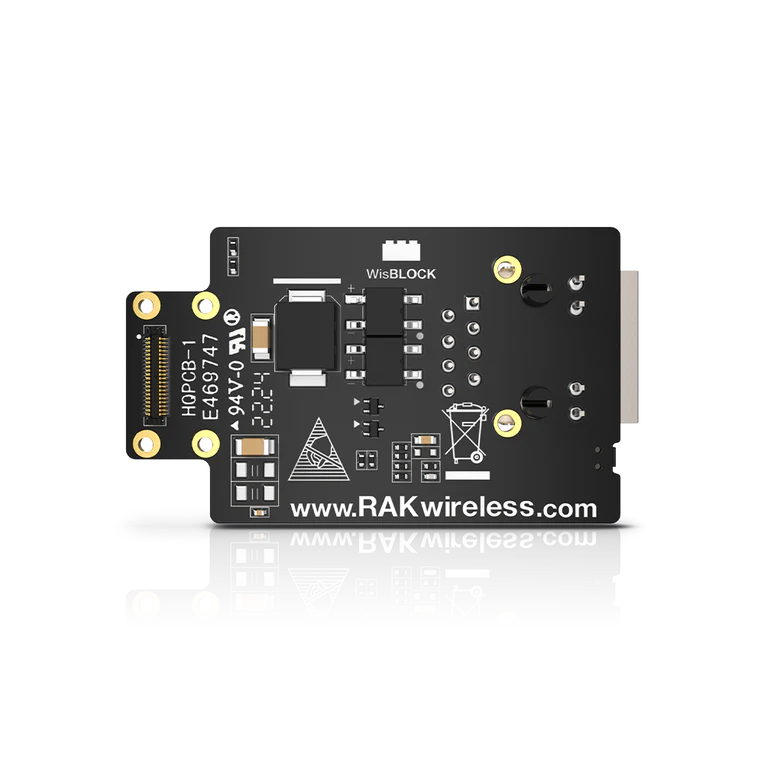

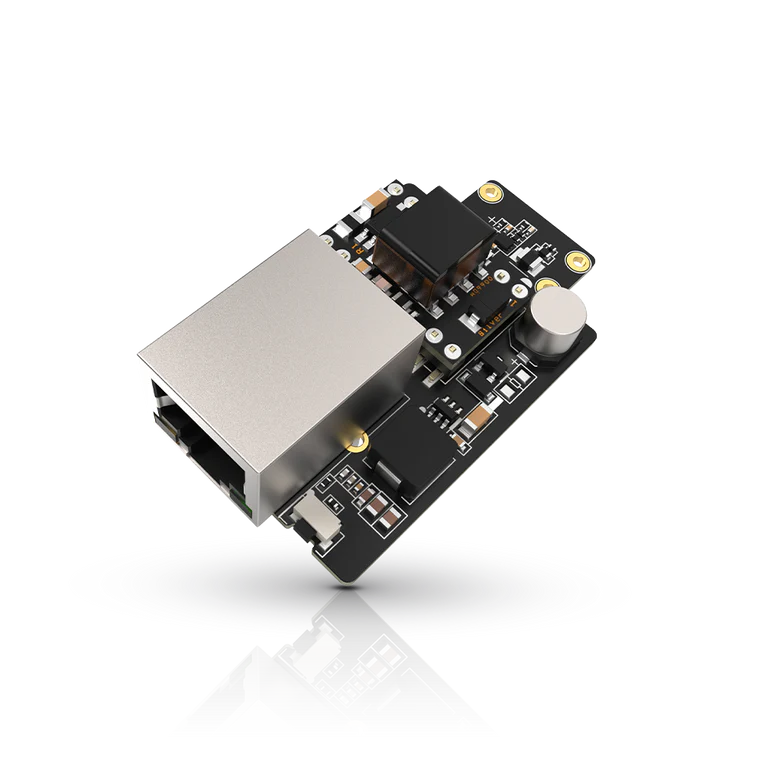

The RAK19017 is a WisBlock POE Power Slot Module that has an Ethernet connector with POE (power supply only, no Ethernet connection) capability and a reset button. It is compatible with the WisBlock Base board with Power Slot.
The RAK19017 WisBlock POE module is a power board that is designed based on Ag9905MT from Silvertel. RAK19017 Wisblock POE module is an IEEE 802.3af compliant POE module that can draw power from the conventional twisted pair CAT5 ethernet cable. This circuit provides the necessary signature required by the Power Sourcing Equipment (PSE) before delivering up to 9 W of power to the port. The Ag9905MT provides a regulated 5 V output from the internal DC-DC converter that has a built-in short-circuit output protection.
Features
- POE Power Module (power supply only, no Ethernet connection capability)
- 36 V to 57 V Input voltage range
- Short-circuit protection and Over temperature protection
- Compact size, the minimum size is: 30 x 50 mm
Specifications:
| Module Name |
PoE Power Slot Module RAK19017 |
| PoE Standard |
IEEE 802.3af compliant |
| Input Voltage Range |
36 V to 57 V |
| Output Voltage |
5 V |
| Output Power |
9 W |
| PoE Power Capability |
Power over Ethernet (power only – no data) |
| Converter IC |
Silver Ag9905MT PoE converter |
| Protection |
Short-circuit & over-temperature protection |
| Connector |
PoE Ethernet connector |
| Indicator LEDs |
Two controllable LEDs in RJ45 |
| Reset Button |
Yes |
| Size (approx.) |
30 mm × 50 mm × ~1 mm |
| Compatibility |
WisBlock Base board with Power Slot |
| Programming Consideration |
Requires additional USB Power Slot module to flash firmware |
