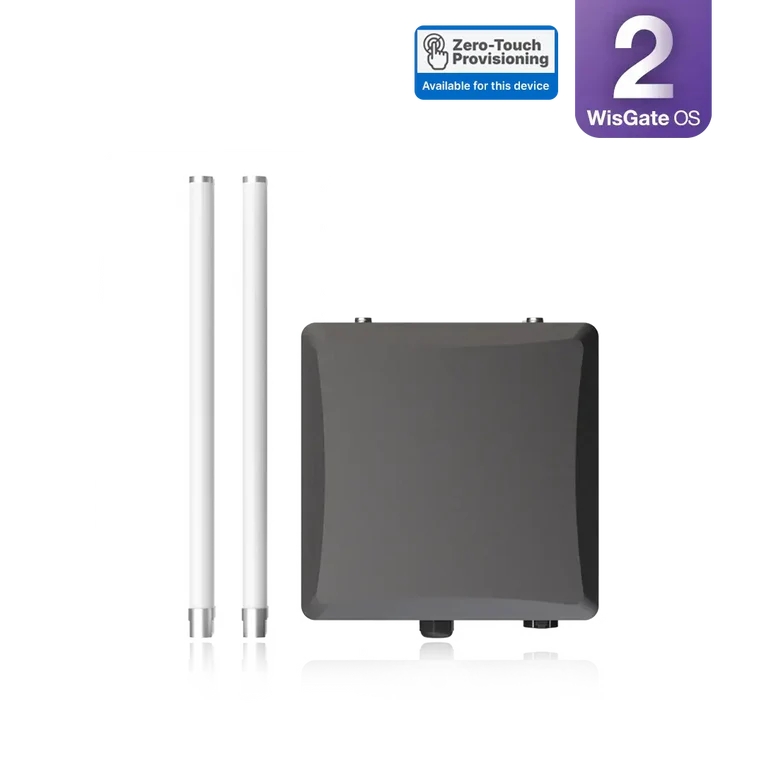

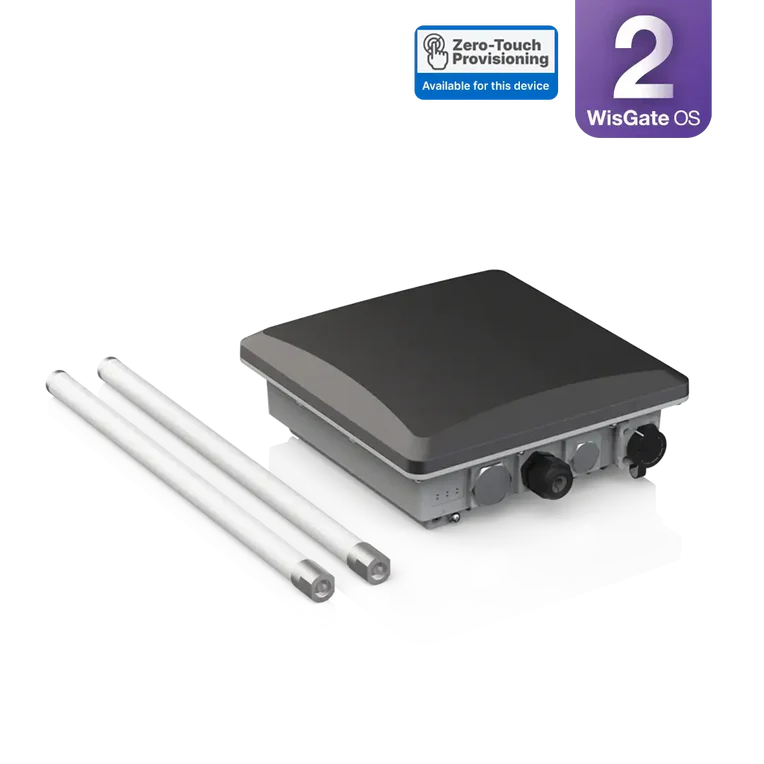

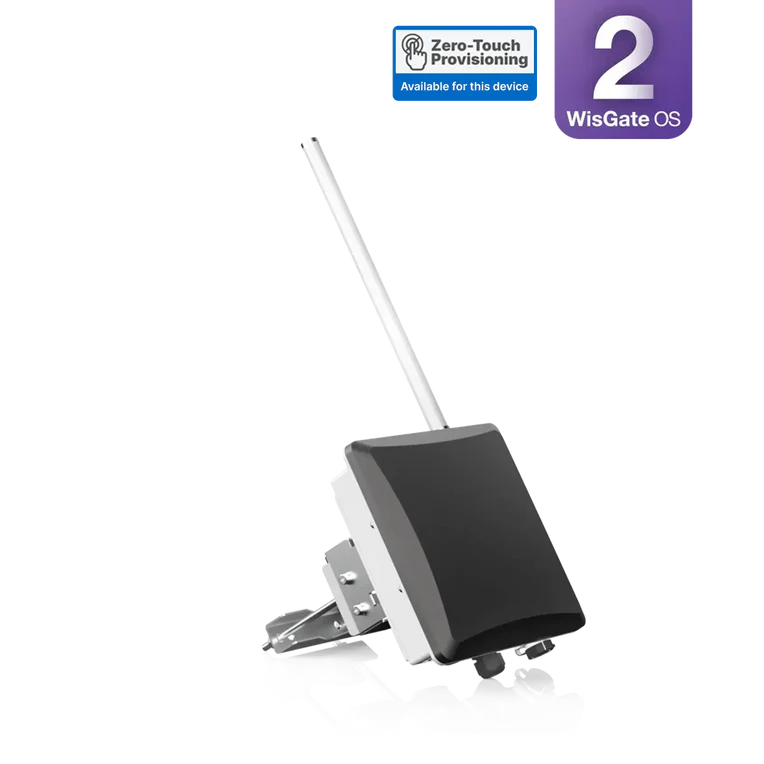

The RAK7289V2 WisGate Edge Pro (16-channel version) is a high-performance outdoor LoRaWAN gateway for industrial IoT applications.
Features:
- 16 channels with the latest Semtech SX1303 LoRa core, which provides higher sensitivity and improved network performance.
- IP67 certified housing that is waterproof and dustproof, ideal for harsh outdoor environments.
- Power over Ethernet (PoE) support for easy installation, as well as the ability to integrate with the RAK Battery Plus system for off-grid deployments.
- WisGateOS 2 operating system, which provides a user-friendly management interface and supports remote management via the WisDM platform.
- Integrated network server for easy deployment, compatible with LoRaWAN v1.0.3 (v1.0.4 coming soon) and networks such as ChirpStack and The Things Network (TTN).
Specifications:
| Product Name |
RAK7289V2 WisGate Edge Lite 2 |
| LoRa Concentrator |
SX1302 |
| LoRa Chip |
SX1250 |
| Frequency Bands |
EU868 / US915 / AS923 / AU915 / KR920 / IN865 (region-specific) |
| Transmit Power |
Up to 27 dBm |
| Sensitivity |
Up to -139 dBm |
| Processor |
Quad-core Cortex-A53 |
| Memory |
1GB RAM |
| Storage |
8GB eMMC |
| Network Connectivity |
10/100 Mbps Ethernet, Wi-Fi (optional), LTE (optional) |
| Antenna Connector |
1× N-type (LoRa), 2× SMA (Wi-Fi optional) |
| GPS |
Optional GPS module |
| Power Supply |
12V DC / PoE (802.3af) |
| Operating System |
OpenWRT-based |
| Interfaces |
Ethernet, USB, UART |
| Enclosure |
IP30-rated enclosure |
| Operating Temperature |
-20°C to +55°C |
| Mounting |
Wall or pole mount |
| Certifications |
CE, FCC, RoHS (region dependent) |
