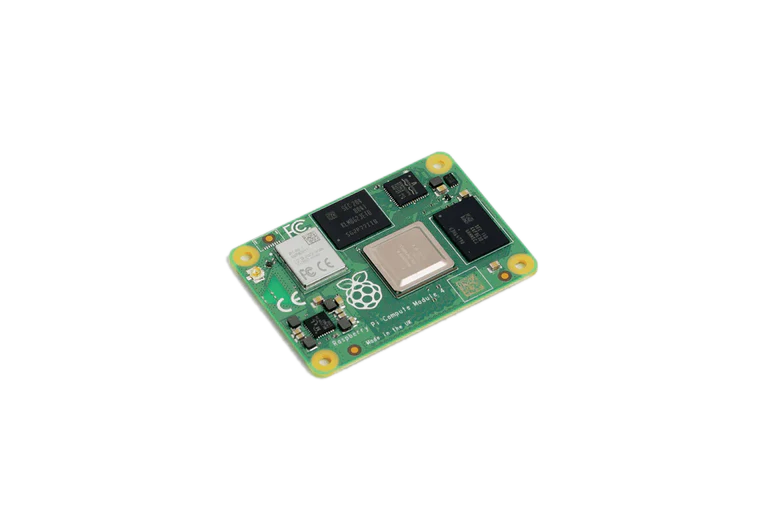

The Raspberry Pi Compute Model 4 (CM4) leverages the computing power of the popular Raspberry Pi 4 Model B, with dramatic performance changes compared to its predecessor: faster CPU cores, better multimedia, more interface capabilities. And for the first time, this release offers multiple choices of RAM density and wireless connectivity options.
In terms of external dimensions, this version adopts a completely new mechanical standard. The overall footprint of the module on its carrier board is reduced, resulting in a smaller and more compact form factor suitable for integration into products.
For storage, the Raspberry Pi Compute Module 4 (CM4) has an optional 8GB, 16GB, or 32GB onboard eMMC, which is different from the Raspberry Pi 4's Micro SD card slot.
The dual-band 2.4/5.0GHz wireless LAN and Bluetooth 5.0 have modular compliance certification. This allows the board to be designed into end products with significantly reduced compliance testing, improving both cost and time to market. Either the onboard antenna or an external antenna kit can be used.
Features
- High-performance 64-bit Quad-core Cortex A72 processor
- More memory options (2GB/4GB/8GB), suitable for large data compilation
- Dual display（HDMI) support at resolutions up to 4K
- Faster eMMC flash with up to 100 MB/s transfer rate, 4x faster than CM3+
- Added wireless module option with on-board PCB antenna and external antenna for industrial applications
- Designed with B to B connectors for enhanced stability
- Add on-board Gigabit Ethernet design, support IEEE1588, suitable for network application development
- Add PCIe interface expansion, can flexibly add related modules
Package Inclusion
- Raspberry Pi Compute Model 4 x 1
Specifications:
| Processor |
High-performance 64-bit Quad-core Cortex-A72 |
| CM4 RAM |
2GB RAM 16G emmc |
| Display Support |
Dual HDMI display, up to 4K resolution |
| Storage |
Faster eMMC flash (up to 100 MB/s, ~4× faster than CM3+) |
| Wireless Connectivity |
Optional wireless module with on-board PCB antenna and external antenna support |
| Connector Design |
B-to-B connectors for enhanced stability |
| Networking |
On-board Gigabit Ethernet with IEEE 1588 support |
| Expansion Interface |
PCIe interface for flexible module expansion |
