Product Description

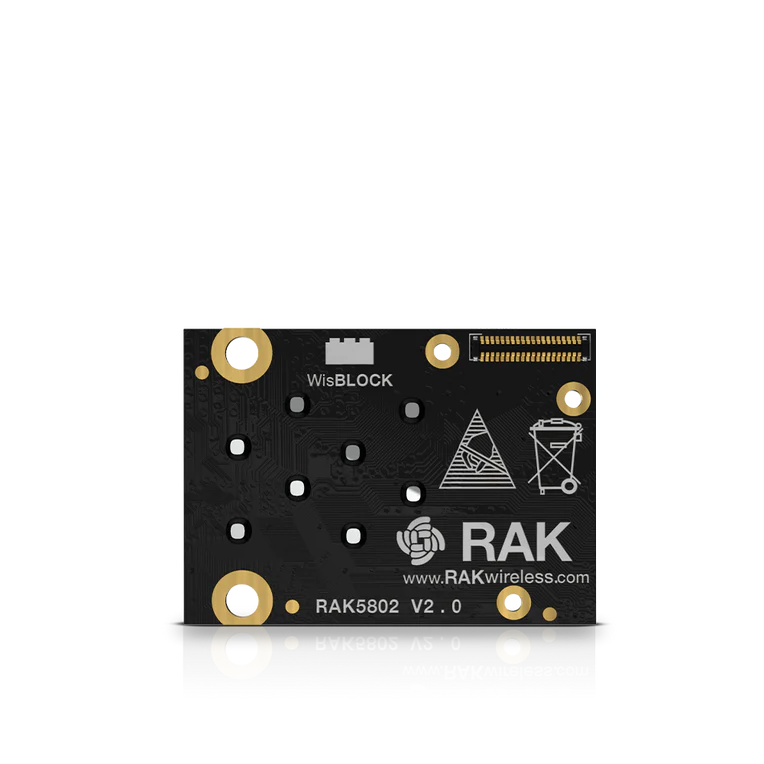

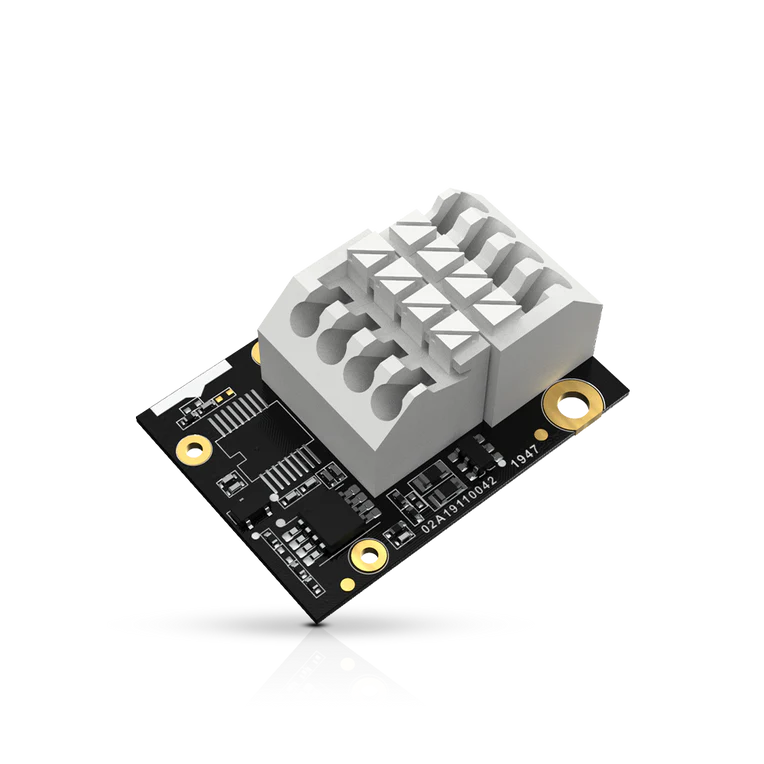

RAK5802 is a WisBlock RS485 interface module based on TP8485 from 3PEAK that extends the WisBlock system with an industrial RS485 data transmission interface. A ready-to-use SW library and tutorial makes it easy to connect any sensor that is using the RS485 interface.
RAK5802 supports one RS485 interface and has a battery and 3.3V power output to supply sensors. In addition, an I2C interface connection is available on the crimping terminal.
RAK5802 combined with the RAK4631 WisBlock Core gives your solution for an interface to industrial sensors and actuators that support the RS485 interface. This interface is the bridge between such sensors and LoRaWan® communication, LoRa® point to point connections or BLE.
RAK5802 is ideal for battery-powered applications because of its low power consumption. In addition, the WisBlock system allows to power down the module completely to reduce the power consumption of the system even more.
Key Features
- The converter of industry-standard RS485 interface to serial.
- Low power consumption
- Small form factor
- Battery and 3.3V output for sensors
- 18kV ESD protection
- 1 RS485 port
Package Inclusion
Specifications:
| Product Name |
RAK5802 |
| Module Type |
RS485 Interface Module (WisBlock) |
| Chipset |
3PEAK TP8485E |
| Communication Interface |
RS485 to UART Converter |
| RS485 Ports |
1 RS485 Interface |
| Protocol Support |
RS485 / Modbus |
| I2C Interface |
Available for external sensor connection |
| Power Output |
Battery output and 3.3V output for sensors |
| ESD Protection |
18 kV ESD Protection (IEC61000-4-2 compliant) |
| Node Support |
Up to 16 RS485 nodes |
| TX/RX Detection |
Automatic TX/RX detection (No DE signal required) |
| Power Consumption |
Low power consumption, power-down supported |
| Form Factor |
WisBlock Interface Module |

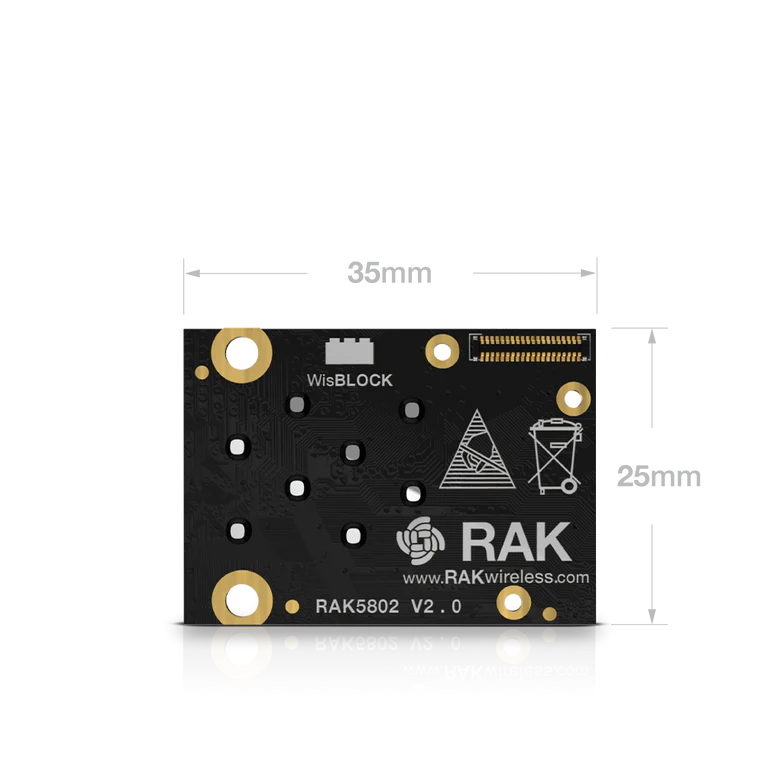

| Dimensions |
35 × 25 mm |
| Integration |
Works with WisBlock Core modules (e.g., RAK4631) |
| Function |
Converts RS485 signals to UART for IoT communication |
| Connectivity |
Enables RS485 sensors to LoRaWAN, LoRa P2P, or BLE via WisBlock |
| Installation |
Fast crimping terminal connector |
| Application |
Industrial IoT, Environmental Monitoring, Agriculture, Automation |
| Package Includes |
1 × RAK5802 Module |
