What Is WisGate Connect for mioty?
The WisGate Connect for mioty is a hybrid gateway supporting both mioty and LoRaWAN® protocols. It connects via Ethernet, Wi-Fi, or optional LTE, offering flexible backhaul options. Built with an industrial-grade enclosure, it ensures reliable performance in harsh environments. This gateway is ideal for urban and industrial IoT deployments, supporting long-range communication for both mioty and LoRaWAN® networks.
Why You Need WisGate Connect for mioty

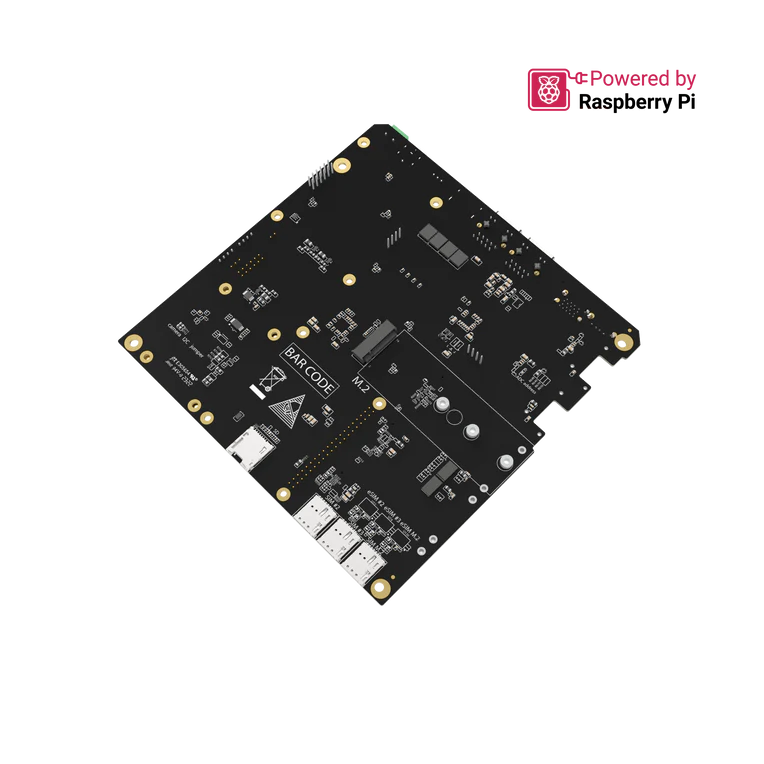

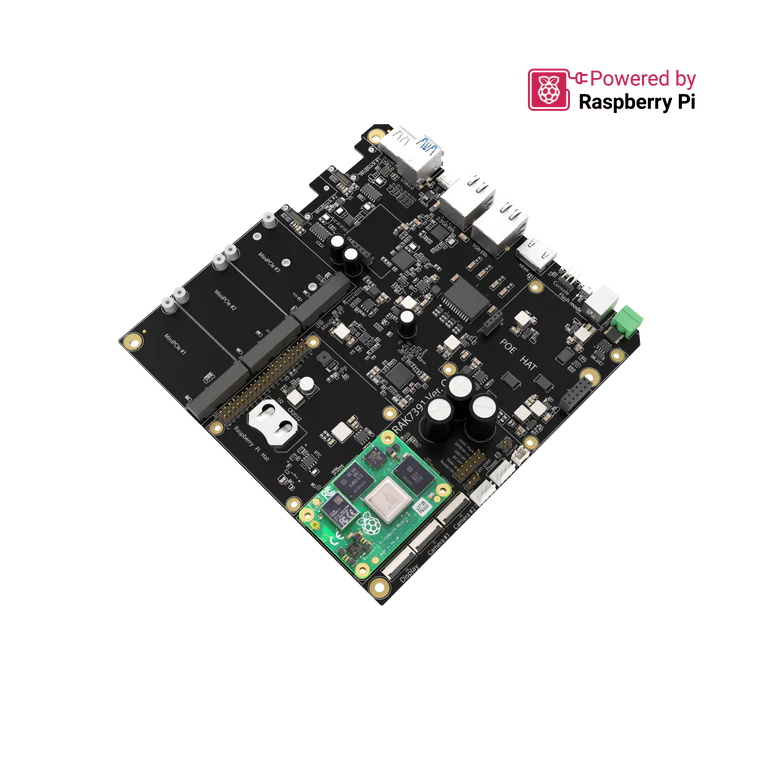

The WisGate Connect is built on the Raspberry Pi CM4, offering mioty support alongside an optional LoRaWAN module for a true Dual Protocol gateway. Powered by the latest SX1303 LoRa core, it improves sensitivity and performance. It also supports multi-backhaul options, such as Ethernet, Wi-Fi, and optional Cellular connectivity.
Why it's useful:
- Dual Protocol Gateway – Supports both mioty and LoRaWAN® technologies.
- Improved Sensitivity – Enhanced signal reception with the SX1303 LoRa core.
- Multi-Backhaul Options – Connect via Ethernet, Wi-Fi, or optional Cellular.
- Better Antenna Performance – Antennas extend outside the enclosure for superior signal strength.
- Pre-Flashed with RAKPiOS – Comes with RAKPiOS and a convenient utility for configuration.
Key Features of WisGate Connect for mioty
- Hardware
- Industrial-grade enclosure
- Supports 9-28VDC (barrel jack or Phoenix terminal) or PoE+ (optional)
- mioty Base Station support
- 8 channels subGHz LoRa concentrator (RAK5146, optional)
- Backhaul: Wi-Fi, Ethernet, and LTE (optional)

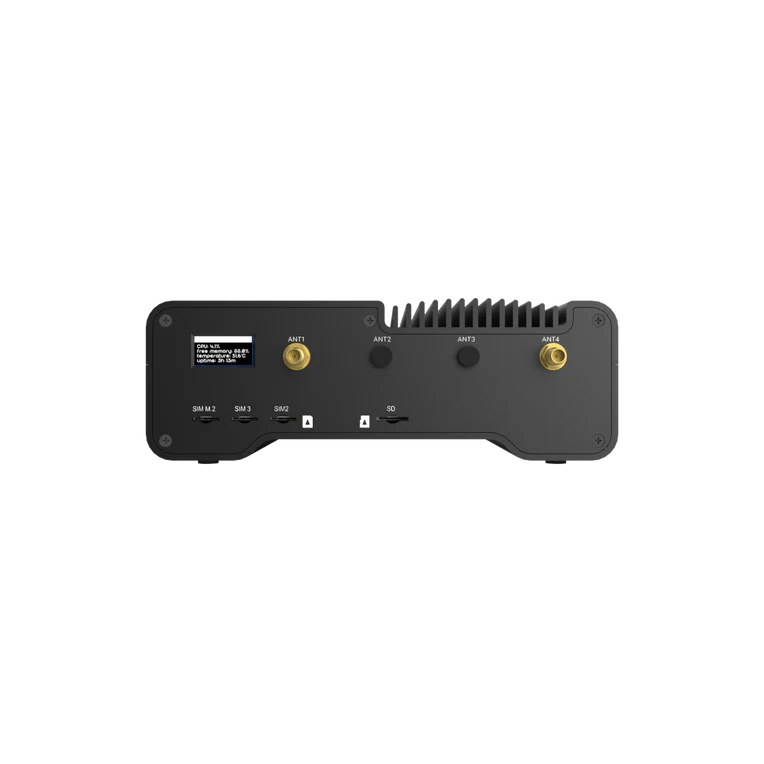

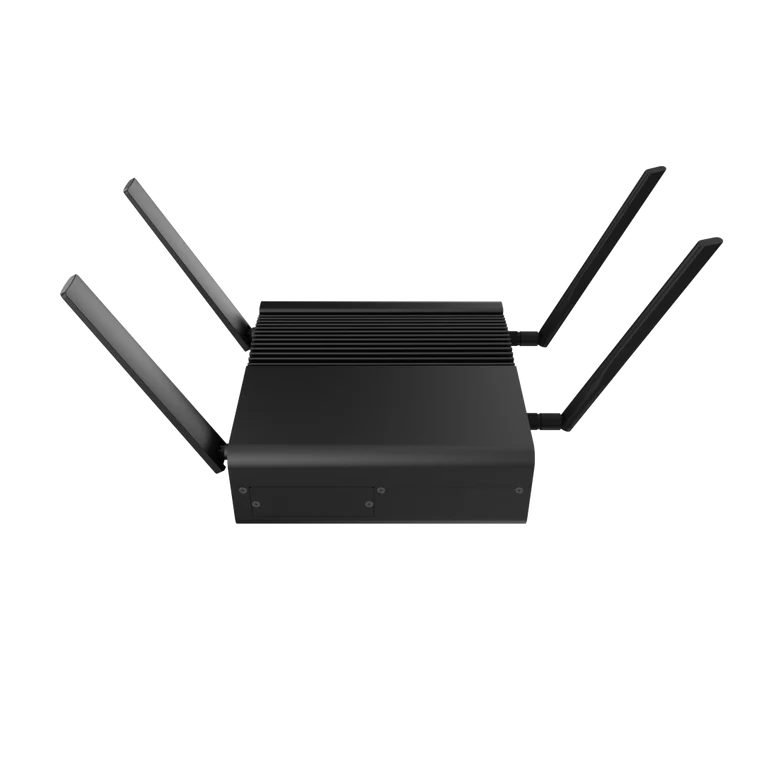

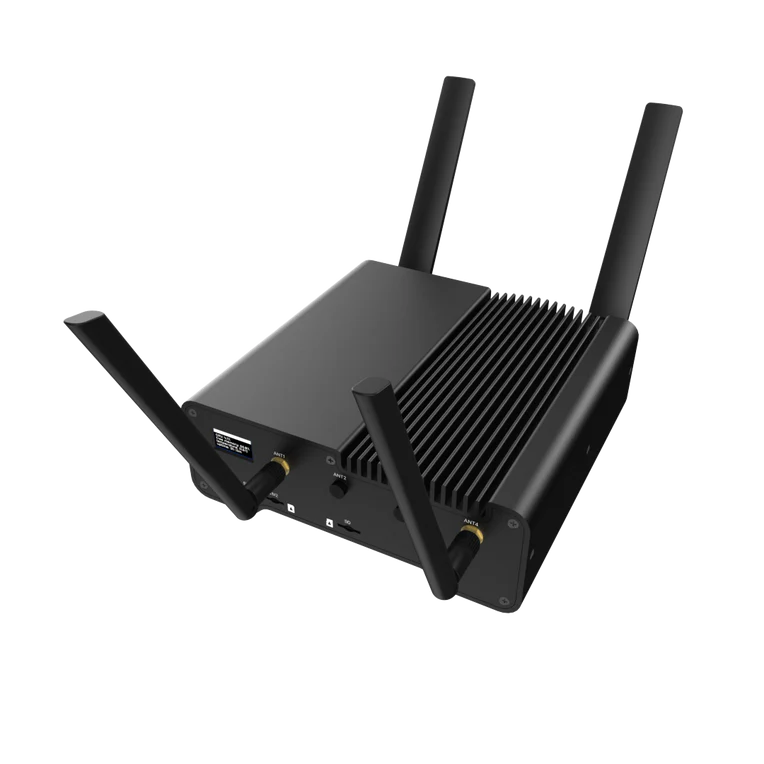

- SMA connectors for mioty, LoRa, Wi-Fi, and LTE antennas

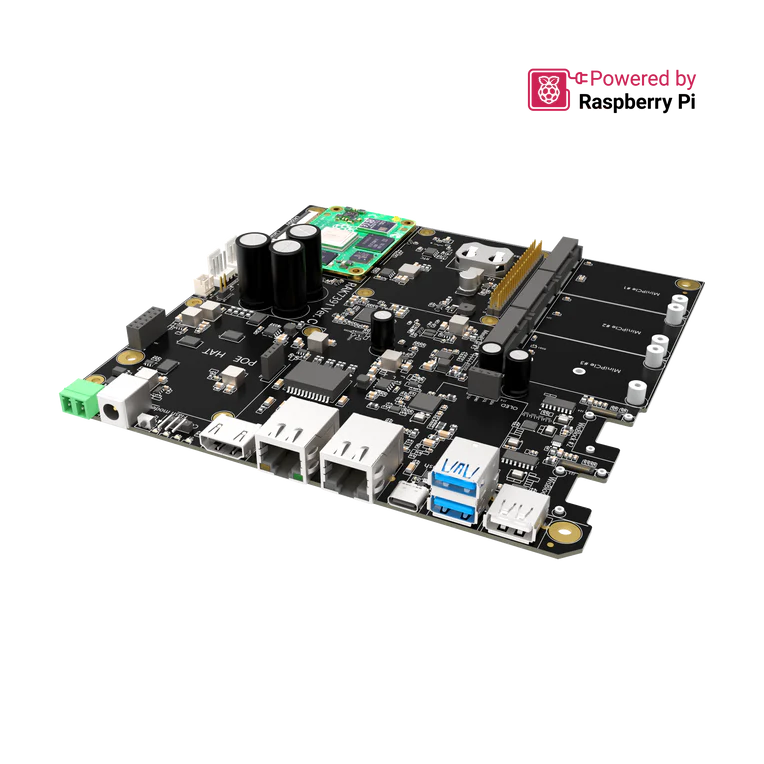

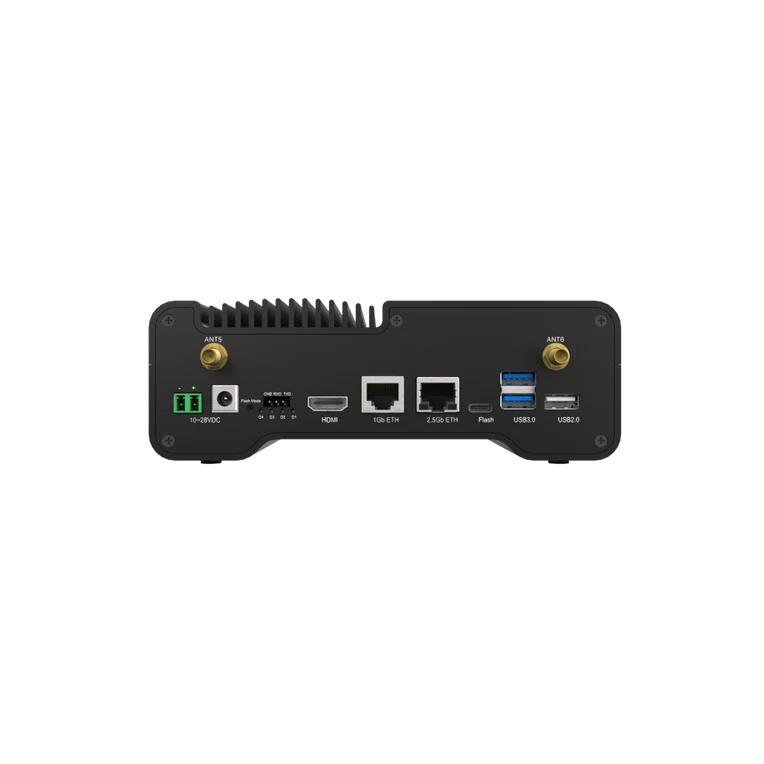

- 1x Gigabit Ethernet port with PoE support (optional)
- 1x 2.5 Gigabit Ethernet
- 1x USB2.0 + 2x USB3.0
- Dying gasp
Key Benefits of WisGate Connect for mioty
A robust and flexible gateway designed for reliable, long-range IoT deployments with mioty and LoRaWAN® support.
- Dual Protocol Support – Enables both mioty and LoRaWAN® connectivity for versatile IoT applications.
- Reliable Multi-Backhaul – Connect via Ethernet, Wi-Fi, or optional LTE for stable network coverage.
- Industrial-Grade Design – Durable enclosure with multiple antenna options for optimal signal performance.
Use Case #1
Deploy the WisGate Connect for mioty in industrial settings to monitor machinery and environmental conditions. Its robust dual-protocol support ensures reliable data transmission even in interference-prone environments.
Use Case #2
Use the WisGate Connect for mioty to manage urban infrastructure, such as smart lighting and waste management systems. Its long-range capabilities and scalability make it ideal for city-wide deployments.
Package Inclusions

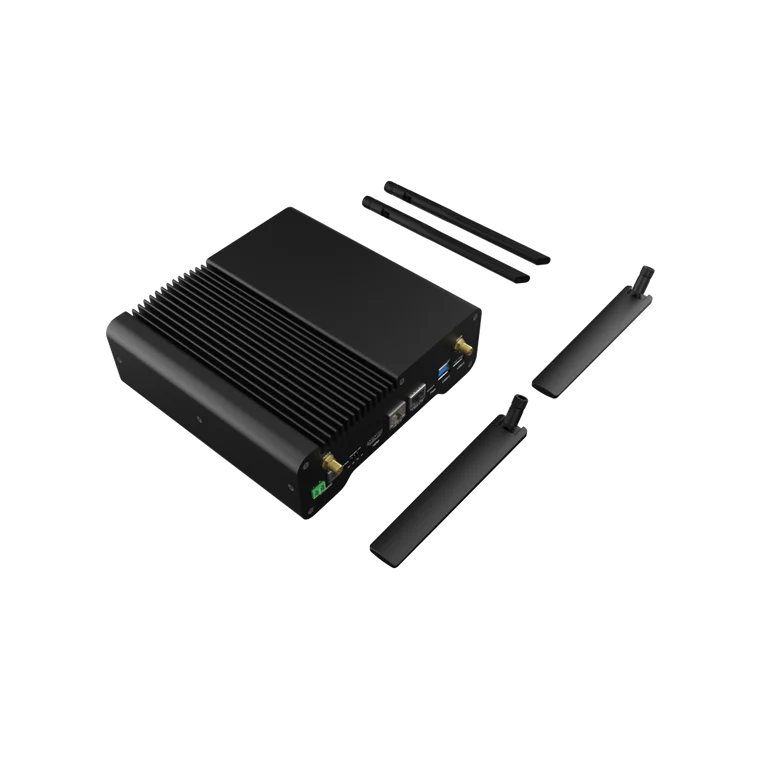

- 1 pc WisGate Connect for mioty
- 1 pc 12V2A power supply
- 1 pc Phoenix male connector
- 2 pcs LTE Antenna (If you select With LTE)
- 1 pc LoRa Antenna (If you select With LoRaWAN)
- Set of standoffs and screws to protect the board
Specifications:
| Enclosure |
Industrial-grade enclosure |
| Power Input |
9–28 VDC (barrel jack or Phoenix terminal) or PoE+ (optional) |
| mioty Support |
mioty Base Station support |
| LoRa Capability |
8-channel subGHz LoRa concentrator (RAK5146, optional) |
| Backhaul Connectivity |
Wi-Fi, Ethernet, LTE (optional) |
| Antenna Interfaces |
SMA connectors for mioty, LoRa, Wi-Fi, and LTE antennas |
| Ethernet Ports |
1 × Gigabit Ethernet (PoE support, optional)
1 × 2.5 Gigabit Ethernet
|
| Feature |
Dying gasp support |
