Imagine trying to connect dozens of sensors in a small office and watching the data disappear because the network cant keep up. The RAK WisGate Edge Lite 2 RAK7268CV2 (With LTE) Compact Indoor LoRaWAN Gateway is built to collect that data reliably and send it where you need it. It works indoors, needs only a power outlet, and adds LTE backup so you never lose a signal. If you need a simple, sturdy gateway that stops data loss, this device is the answer.

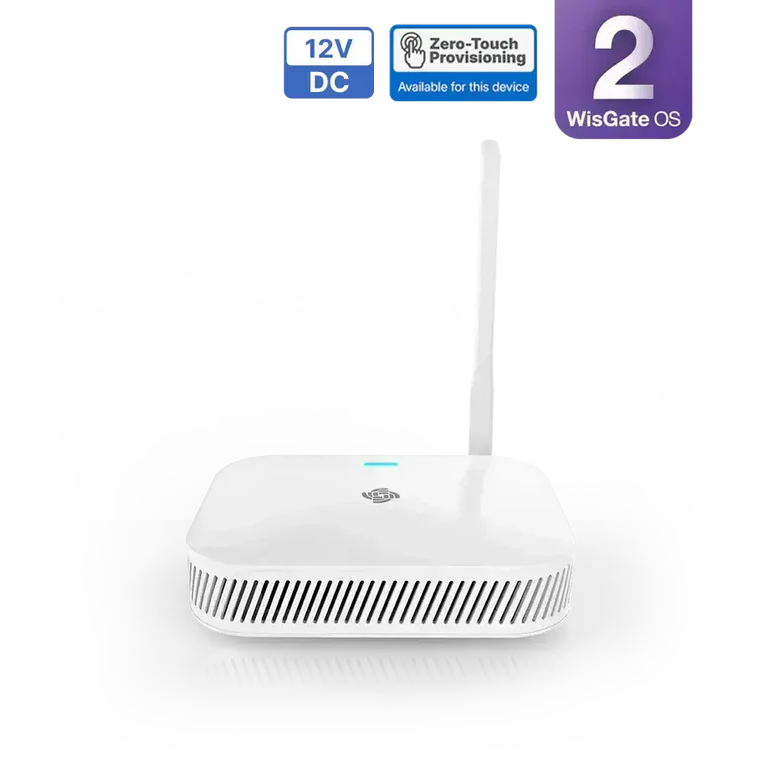

RAK WisGate Edge Lite 2 RAK7268CV2(With LTE) Compact Indoor LoRaWAN Gateway
Many small businesses and hobby projects struggle with unreliable back-haul and limited range. Without a strong gateway, sensor data can be delayed or dropped, leading to wrong decisions and wasted time. This RAK gateway solves the issue by offering eight LoRa channels, 27 dBm transmit power, and three back-haul options - Ethernet, Wi-Fi, and LTE. The result is a clear, always-on connection that keeps your IoT network alive even when one link fails.
Benefits
- Easy indoor setup - just plug in power and you are ready to collect data.
- Three back-haul choices let you stay online even if one network drops.
- High transmit power and sensitive receiver capture signals from far-away sensors.
- Low power draw means the device runs quietly and saves electricity.
- Compact size fits on a desk, wall, or DIN rail without taking up space.
Key Features
- MT7628 processor with 128 MB DDR2 RAM for smooth operation.
- MicroSD slot (usually 16 GB) for log storage and buffering.
- SX1302 LoRa concentrator on Mini PCIe with 8 channels.
- Supports EU868, US915, AU915, AS923, IN865, KR920, EU433, CN470 bands.
- Up to 27 dBm transmit power and -139 dBm receiver sensitivity.
- Wi-Fi 2.4 GHz (AP & client) and Ethernet 10/100 Mbps with PoE support.
- LTE Cat 4 module (Quectel EG95/EC25) for cellular back-haul.
- External RP-SMA LoRa antenna, internal Wi-Fi antenna, optional LTE antenna.
- Power options: PoE 36-57 V, 12 V DC, or 9-24 V DC.
- Operating temperature -10 C to +55 C, IP30 indoor enclosure.
Specifications
| Product Name |
RAK7268CV2 WisGate Edge Lite 2 |
| Processor |
MT7628 |
| Memory |
128 MB DDR2 RAM |
| Storage |
MicroSD card slot (typically 16GB pre-installed for logs & buffering) |
| LoRa Concentrator |
SX1302 (Mini PCIe) |
| LoRa Channels |
8 channels |
| Frequency Bands |
EU868 / US915 / AU915 / AS923 / IN865 / KR920 / EU433 / CN470 |
| Transmit Power |
Up to 27 dBm |
| Receiver Sensitivity |
Up to -139 dBm |
| Wi-Fi |
2.4 GHz (802.11 b/g/n), AP & Client mode |
| Ethernet |
10/100 Mbps (PoE IEEE 802.3af supported) |
| LTE |
LTE Cat 4 (Quectel EG95 / EC25 series) |
| Antennas |
LoRa: External RP-SMA, Wi-Fi: Internal, LTE: Internal or External (model dependent) |
| Backhaul Connectivity |
Ethernet, Wi-Fi, LTE |
| Operating System |
WisGateOS 2 (OpenWRT-based) |
| Interfaces |

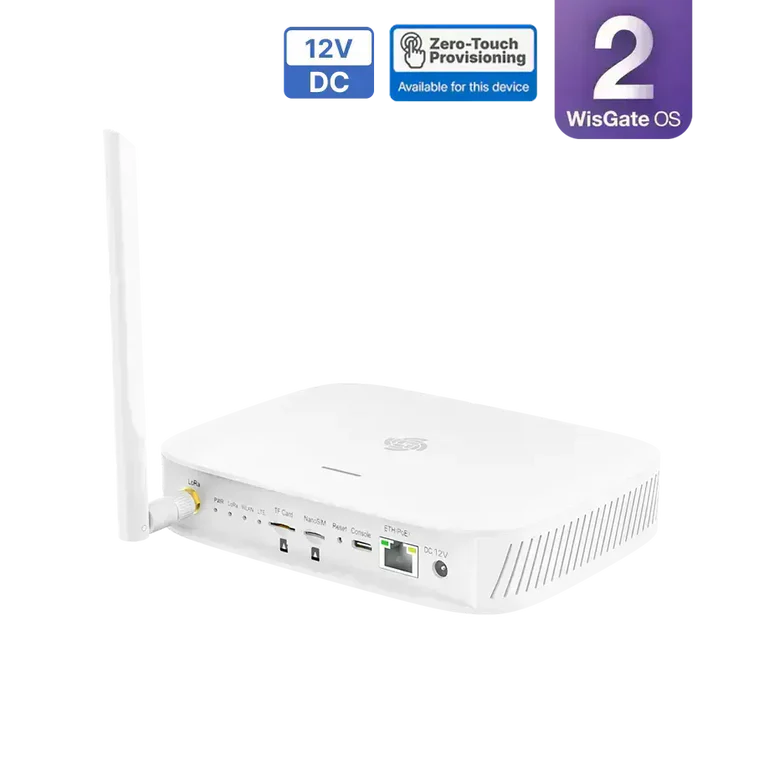

Ethernet (RJ45), USB-C (console), MicroSD slot, Nano SIM slot |
| Power Supply |
PoE (36–57V DC), 12V DC, or 9–24V DC |
| Power Consumption |
3W (typical) |
| LED Indicator |
Status “breathing” LED |
| Enclosure |
Plastic (PC+ABS), IP30 |
| Dimensions |
166 × 127.5 × 36 mm |
| Weight |
0.3 kg |
| Operating Temperature |
-10°C to +55°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
0% to 95% (non-condensing) |
| Mounting |
Desktop, wall, or DIN rail mounting |
