Imagine a sensor network that never drops a signal, even in a crowded office or a busy warehouse. The RAK WisGate Edge Lite 2 Compact Indoor LoRaWAN Gateway for Reliable Deployments is a small, powerful gateway that brings all your LoRa devices together. If you struggle with dead spots, unreliable connections, or costly hardware, this gateway solves those problems with strong coverage and easy setup.

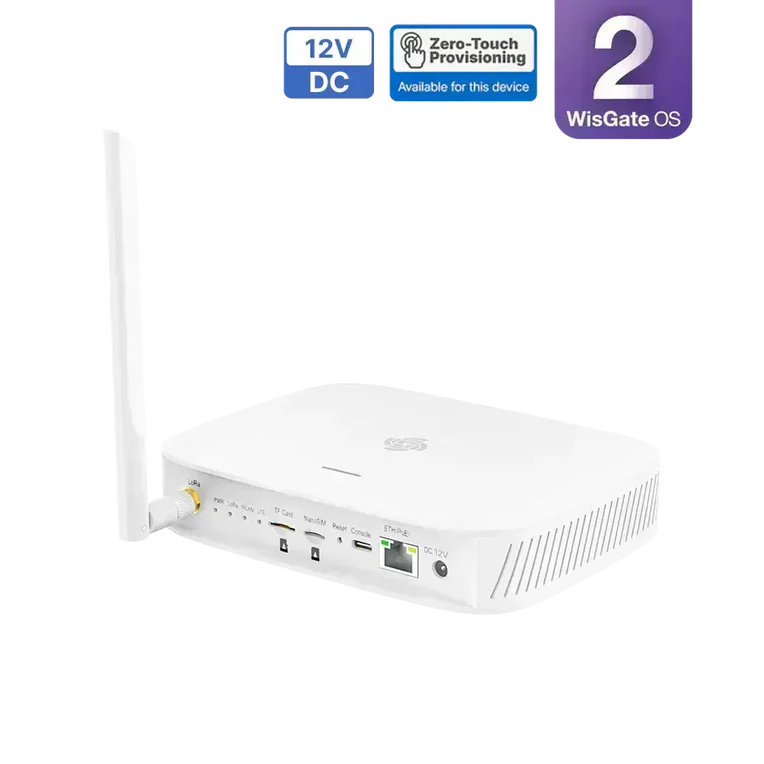

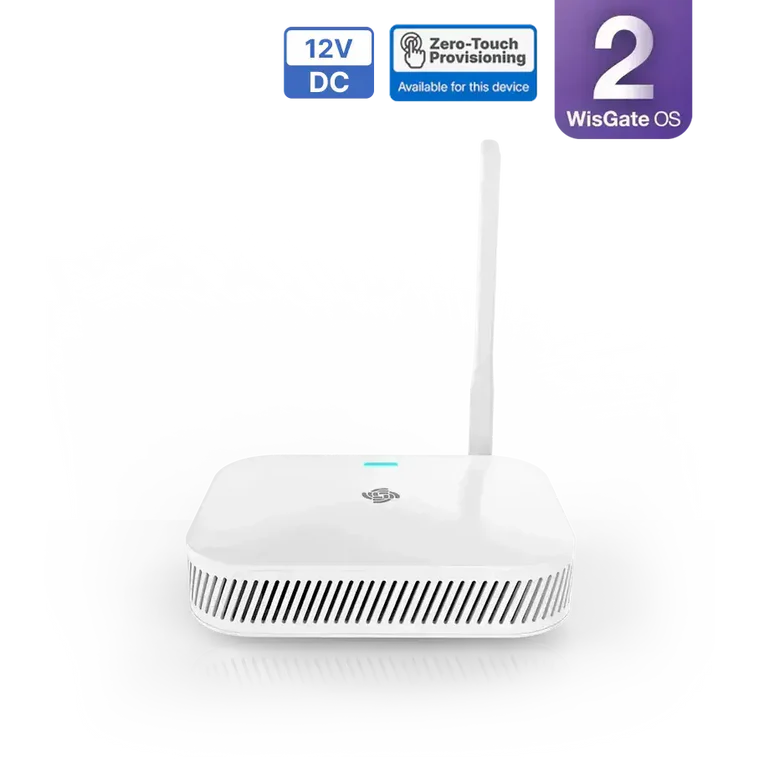

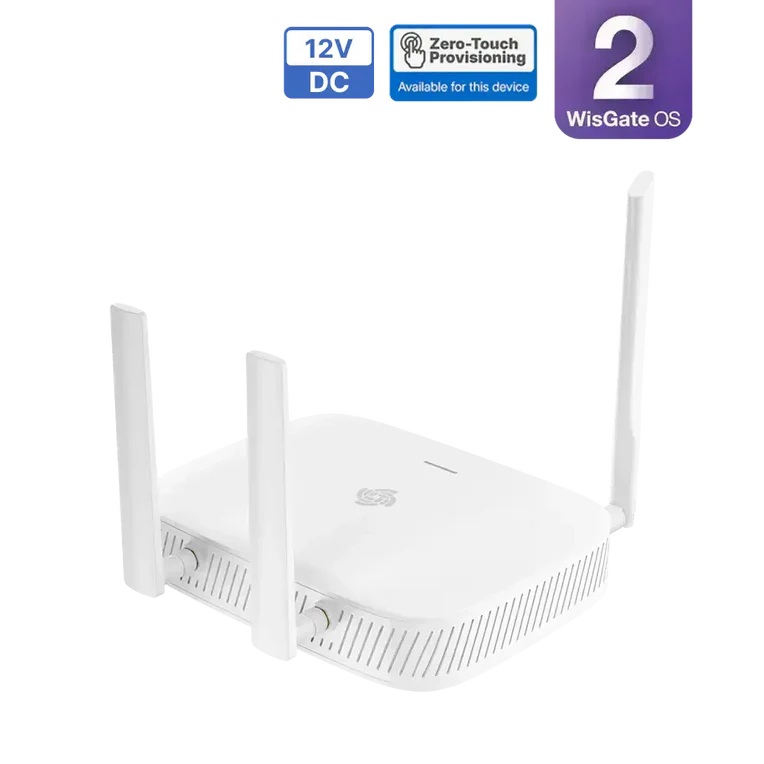

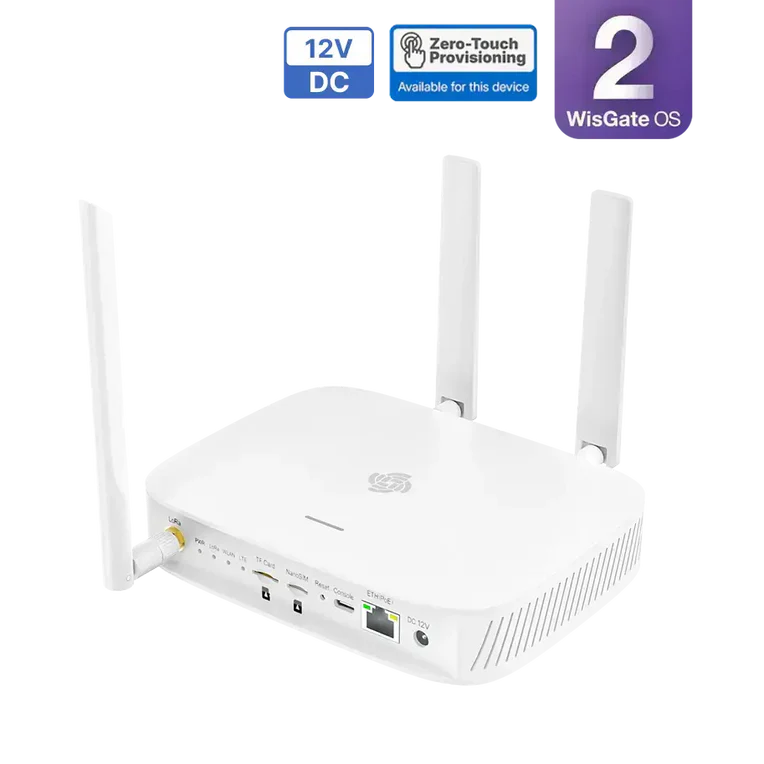

RAK WisGate Edge Lite 2 Compact Indoor LoRaWAN Gateway for Reliable Deployments
Many small-scale IoT projects fail because the gateway cannot handle many devices or different regional frequencies. When a gateway drops packets, data is lost and decisions become wrong, which can cost time and money. The RAK WisGate Edge Lite 2 removes that risk. It supports all major LoRa bands, offers up to 27 dBm transmit power and a sensitivity of -139 dBm, so every sensor can reach the cloud reliably. Its built-in Wi-Fi and Ethernet give you flexible back-haul options, and the OpenWRT base lets you manage the network without extra software.
Key Features
- MT7628 processor with 128 MB RAM for smooth operation.
- SX1302 LoRa concentrator handles many simultaneous devices.
- SX1250 LoRa chip provides high sensitivity up to -139 dBm.
- Transmit power up
Specifications
| Product Name |
RAK7268V2 WisGate Soho Pro |
| Processor |
MT7628 |
| Memory |
128 MB RAM |
| Storage |
16 MB Flash |
| LoRa Concentrator |
SX1302 |
| LoRa Chip |
SX1250 |
| Frequency Bands |
EU868 / US915 / AU915 / AS923 / KR920 / IN865 |
| Transmit Power |
Up to 27 dBm |
| Receiver Sensitivity |
Up to -139 dBm |
| Wi-Fi |
2.4 GHz (802.11 b/g/n) |
| Ethernet |
10/100 Mbps Ethernet |
| LTE |
Not supported |
| GPS |
Not supported |
| Antenna Connector |
1× External antenna (LoRa) |
| Operating System |
OpenWRT-based |
| Backhaul Connectivity |
Ethernet, Wi-Fi |
| Interfaces |
Ethernet, Wi-Fi |
| Power Supply |
12V DC |
| Operating Temperature |
-10°C to +55°C |
| Dimensions |
110 × 85 × 30 mm |
| Enclosure |
Indoor enclosure |
| Mounting |
Desktop / wall mount |
