You have many sensors spread over a field, a park, or a factory, but the data never reaches your server. When signals are weak or the gateway cannot survive outdoor weather, you lose valuable information and waste time fixing the network. The RAK WisGate Edge Pro 8- or 16-Channel Outdoor LoRaWAN Gateway collects every signal, protects it from rain and dust, and sends it to the cloud so you can see real-time data without gaps.

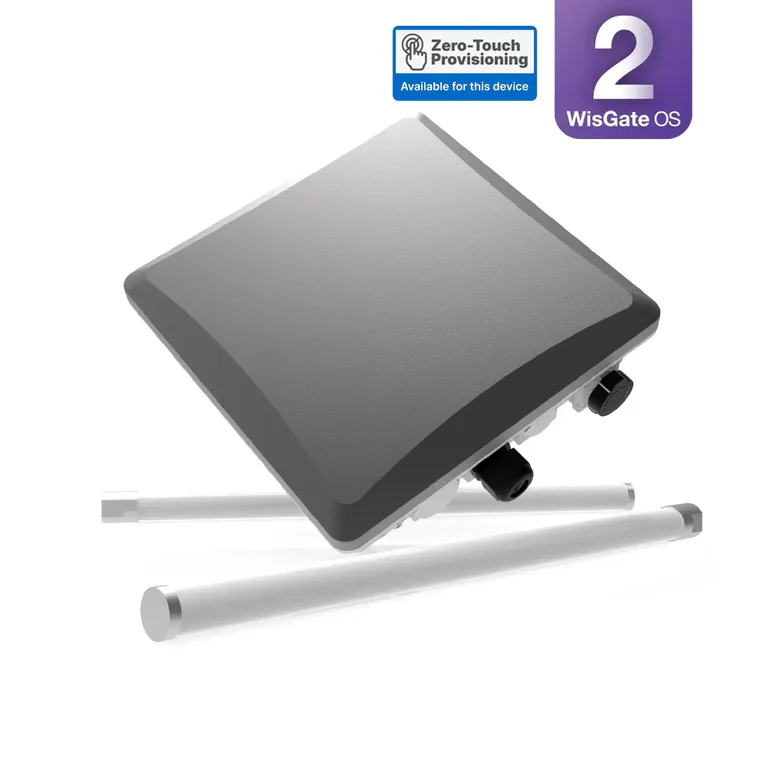

RAK WisGate Edge Pro 8- or 16-Channel Outdoor LoRaWAN Gateway with RAK
Connect every sensor, everywhere. This gateway is a rugged outdoor hub that receives LoRaWAN messages from up to 16 devices and forwards them over Ethernet, Wi-Fi or LTE. It solves the common problem of lost data in large-scale IoT projects by giving you a single point that works in harsh weather and supports many frequency bands. With RAK technology you get a proven, open-source stack that is easy to manage and update.
Key Features
- 8 or 16 LoRa channels with dual SX1303 concentrators.
- Transmit power up to 27 dBm for strong signal reach.
- Receiver sensitivity down to -139 dBm for weak messages.
- Supports EU868, US915, AU915, AS923, IN865, KR920, EU433, CN470 bands.
- IP67 aluminum-plastic enclosure for outdoor durability.
- Power over Ethernet (IEEE 802.3af) or 12 V DC input.
- Built-in GPS for precise location tracking.
- 2.4 GHz Wi-Fi with 22 MIMO for fast back-haul.
- LTE Cat 4 modem (Quectel EG95/EC25) for cellular backup.
- USB-C console, Nano SIM slot and 16 GB pre-installed MicroSD.
- WisGateOS 2 (OpenWRT) provides a flexible, open software platform.
- Wall or pole mounting options fit any outdoor site.
Specifications
| Product Name |
RAK7289CV2 WisGate Edge Pro V2 |
| Processor |
MT7628 |
| Memory |
128 MB DDR2 RAM |
| LoRa Concentrator |
Dual SX1303 (up to 16 channels) |
| LoRa Frequency Bands |
EU868 / US915 / AU915 / AS923 (1/2/3/4) / IN865 / KR920 / EU433 / CN470 |
| Transmit Power |
Up to 27 dBm |
| Receiver Sensitivity |
Up to -139 dBm |
| Wi-Fi |
2.4 GHz (802.11 b/g/n), 2×2 MIMO |
| LTE |
LTE Cat 4 (Quectel EG95 / EC25 series) |
| SIM Slot |
Nano SIM |
| Ethernet |
10/100 Mbps Ethernet (PoE supported) |
| GPS |
Built-in GPS (internal antenna) |
| Antennas |
LoRa: External N-type (1 for 8ch / 2 for 16ch), Wi-Fi/LTE/GPS: Internal |
| Operating System |
WisGateOS 2 (OpenWRT-based) |
| Backhaul Connectivity |
Ethernet, Wi-Fi, LTE |
| Interfaces |
USB-C (console), SIM slot, MicroSD slot (16GB pre-installed) |
| Power Supply |
PoE (IEEE 802.3af, 37–57V DC) or 12V DC |
| Enclosure |
IP67 industrial-grade (aluminum + plastic) |
| Dimensions |
240 × 240 × 89.5 mm |
| Weight |
4.6 kg |
| Operating Temperature |
-40°C to +70°C |
| Storage Temperature |
-40°C to +85°C |
| Humidity |
0% to 95% (non-condensing) |
| Mounting |
Wall or pole mounting |
