Product Description

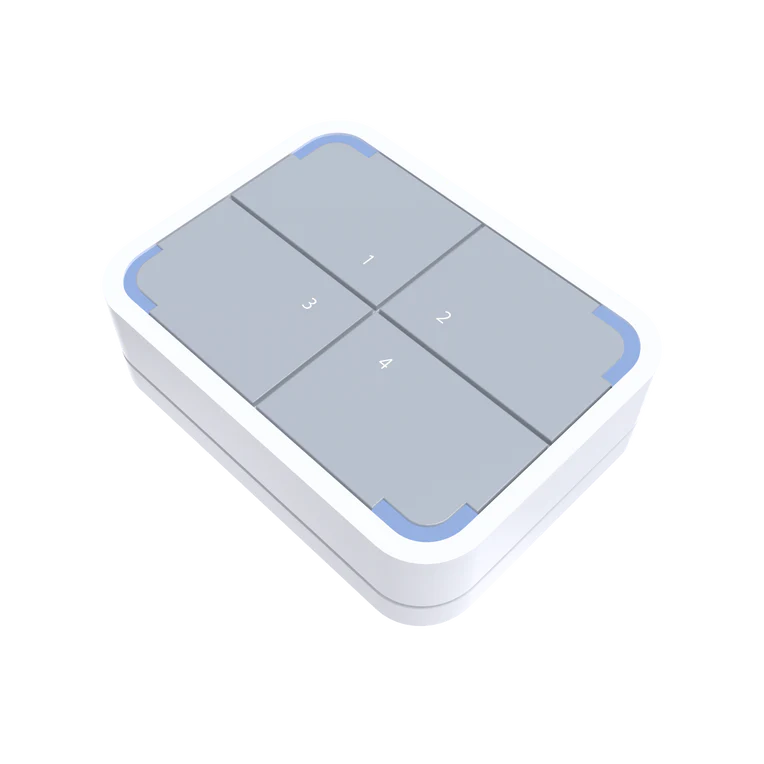

The WisNode Button is a remote wireless trigger device. It supports user-defined functions for each key and is based on the LoRaWAN 1.0.2 protocol. Supported LoRaWAN bands are IN865, EU868, AU915, US915, KR920, and AS923.
The Button is suitable for a variety of Smart Home applications: Entertainment system control, Control of Lights, as a Snooze Button for your Alarms, or a remote trigger. With long-range wireless connectivity, amazing battery life, and four programmable buttons, there are a ton of applications this device can fit into.
Product Features
- 4 Buttons with LED indicator
- LoRaWAN® 1.0.2 compatible
- Battery: 350 mAh
- Battery working time: 1 year (Rechargeable)
- Power Consumption: Transmit: 77.4-153* mA, Standby: 4.8 uA
- Working Environment: Indoor
- Product Size: 43x57x15 mm
- Operating Temperature: -20º C to 60º C
Specifications:
| Product Name |
WisNode Button 4K |
| Model |
RAK7201 |
| Manufacturer |
RAKwireless |
| Product Type |
LoRaWAN Smart Button / Remote Wireless Trigger |
| Wireless Technology |
LoRaWAN |
| LoRaWAN Protocol |
LoRaWAN 1.0.2 Class A |
| Frequency Bands |
EU868, IN865, US915, AU915, AS923, KR920 |
| Buttons |
4 programmable buttons |
| LED Indicators |
4 blue LEDs + red status LEDs |
| Antenna |
Spring antenna |
| Max TX Power |
20 dBm |
| RX Sensitivity |
-136 dBm |
| Battery Type |
Rechargeable Li-Po battery |
| Battery Capacity |
350 mAh |
| Battery Life |
Up to 1 year |
| Charging Interface |
Micro USB (USB 2.0) |
| Charge Voltage |
5V |
| Charge Current |
500 mA |
| Power Consumption |
TX: 77.4–153 mA |
| Standby Current |
4.8 µA |
| Operating Temperature |
-20°C to +60°C |
| Working Environment |
Indoor |
| Dimensions |
43 × 57 × 15 mm |
| Mounting |
Sticker / Adhesive |
| Communication Mode |
OTAA, ABP |
| Applications |
Smart home control, alarm trigger, remote switch, IoT control |
