Looking for a tiny radio that can talk far and still connect to a phone? The RAKwireless RAK11720, LoRa Bluetooth Module without MHF4 900MHz gives you both long-range LoRa and low-energy Bluetooth in a 15 15 mm stamp. It solves the common problem of needing two separate chips, saving board space and design time. If you have been struggling with weak signals or complex wiring, this module is the shortcut you need.

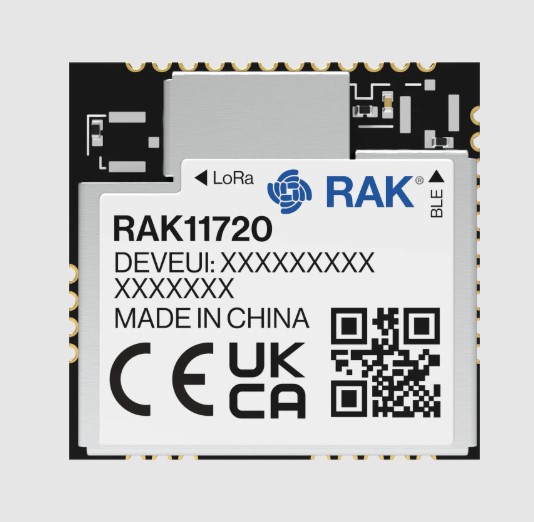

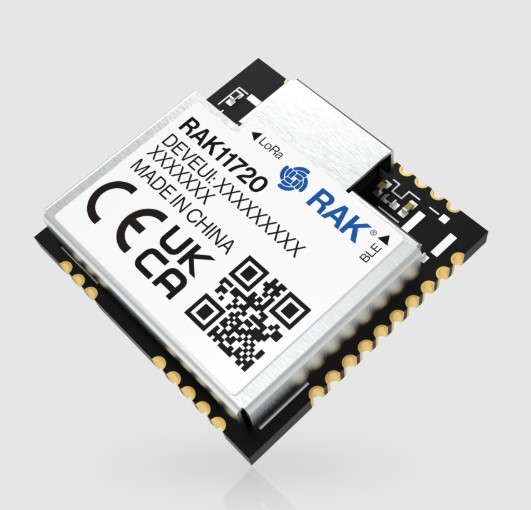

RAKwireless RAK11720, LoRa Bluetooth Module without MHF4 900MHz
Many IoT projects require both long-range data and quick local control, yet designers often buy separate LoRa and BLE chips. That adds cost, increases power draw, and makes firmware integration harder. The problem matters because it slows product launch and raises the risk of bugs. This module merges a Semtech SX1262 LoRa chip with a Bluetooth 5.0 radio on a single MCU, giving you a clean, low-power solution that works on US915, AU915, KR920 and AS923 bands.
Key Features
- Ambiq Apollo3 Blue MCU with 1 MB flash and 348 KB SRAM.
- Semtech SX1262 LoRa chip supporting Class A, B, C.
- Bluetooth 5.0 Low Energy radio for fast local links.
- RF pad (no IPEX) for custom antenna designs.
- Two UART, one I2C, one SPI ports for easy peripheral connection.
- Six GPIOs and five ADC inputs for sensor integration.
- OTAA and ABP activation methods for LoRaWAN networks.
- Typical LoRa TX current 87 mA at 20 dBm, BLE TX 12.7 mA at 4 dBm.
- CE, UKCA, FCC, ISED certifications for global compliance.
- RUI3 default firmware with AT command support and BLE OTA updates.
Specifications
| General |
|
| Model |
RAK11720-9-SM-NI |
| Product Series |
WisDuo LPWAN + BLE Module |
| Form Factor |
Stamp Module |
| Variant |
900 MHz, No IPEX connector (RF pad only), Supports US915, AU915, KR920, AS923-1/2/3/4 |
| Processor |
|
| MCU |
Ambiq Apollo3 Blue AMA3B1KK-KBR-B0 |
| CPU |
ARM Cortex-M4F |
| Wireless Connectivity |
|
| LoRa Chip |
Semtech SX1262 |
| LoRaWAN |
LoRaWAN® 1.0.3 (Class A, B, C) |
| LoRa P2P |
Supported |
| Bluetooth |
Bluetooth® 5.0 Low Energy (BLE) |
| Frequency Bands |
US915, AU915, KR920, AS923-1/2/3/4 |
| Activation |
OTAA, ABP |
| Maximum Range |
Greater than 15 km (optimized antenna) |
| Memory |
|
| Flash |
1 MB |
| SRAM |
348 KB |
| Interfaces |
|
| UART |
2 UART ports |
| I2C |
1 I2C port |
| SPI |
1 SPI port |
| GPIO |
6 GPIOs |
| ADC |
5 ADC inputs |
| Debug Interface |
SWD |
| RF |
|
| Antenna Connection |
RF Pad (No IPEX Connector) |
| TCXO |
Supported |
| Power |
|
| Supply Voltage |
1.8 V ~ 3.6 V |
| Sleep Current |
2.37 μA (Typical) |
| LoRa TX Current |
87 mA @ 20 dBm (Typical) |
| BLE TX Current |
12.7 mA @ 4 dBm (Typical) |
| Environmental |
|
| Operating Temperature |
-40°C ~ +85°C |
| Mechanical |
|
| Dimensions |
15.5 × 15 × 2.6 mm |
| Pin Count |
34 pins |
| Firmware |
|
| Default Firmware |
RUI3 |
| Programming |
Arduino-compatible RUI3 API, AT Commands over UART, BLE Firmware Update |
| Certifications |
|
| Certifications |
CE, UKCA, FCC, ISED |
