Tired of blind spots and missed footage? The Reolink OMVI 3i PoE, AlO Triple-Lens 180 Panoramic Pan-Tilt Security Camera gives you a full view of any area with one device. It captures high-resolution video, moves on command, and lets you talk through the built-in speaker. If you worry about intruders, stray pets, or package theft, this camera fills the gap and keeps you in control.

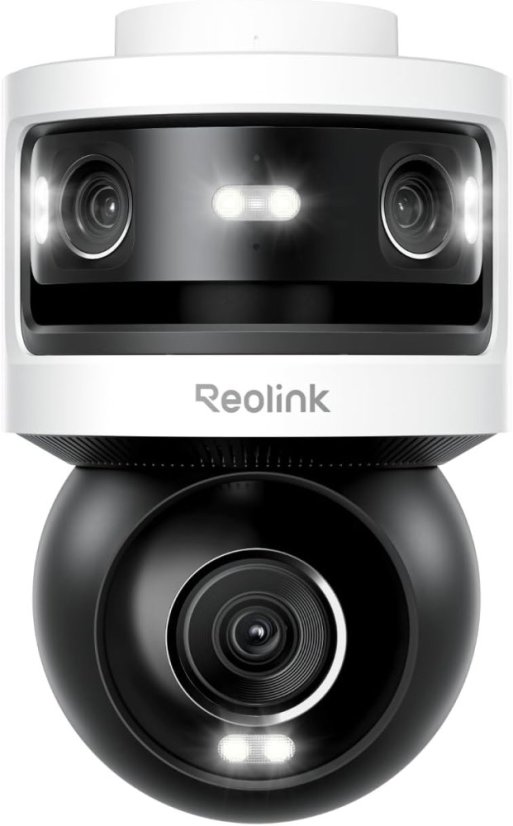

Reolink OMVI 3i PoE, AlO Triple-Lens 180 Panoramic Pan-Tilt Security Camera
Many home and business owners struggle with cameras that only see a narrow slice of the scene, forcing them to install several units and run multiple power cords. That extra hardware raises cost, creates wiring clutter, and still leaves corners uncovered. Reolink solves this by combining three lenses into one sleek box that sweeps 180 horizontally and tilts to watch vertical space. The PoE connection delivers power and data over a single cable, so installation is quick and tidy. With 10 MP and 8 MP sensors, night-vision LEDs, and two-way audio, you get crystal-clear detail day or night, and you can check the feed from any phone or computer.
Key Features
- Upper camera 10 MP (5120 x 1920) and lower camera 8 MP (3840 x 2160).
- Dual lenses: 180 horizontal, 65 vertical on top, 55 on bottom.
- Pan 350 and tilt 50 with smooth speed control.
- Digital zoom for close-up inspection.
- H.264 / H.265 compression saves bandwidth.
- Infrared night vision up to 30 m and color night vision with 8 7 W LEDs.
- Built-in microphone and speaker for two-way talk.
- Supports up to 512 GB microSD for local storage.
- 64 preset positions and one patrol route for automated monitoring.
- Compatible with iOS, Android, Windows, Mac and major browsers.
Specifications
| Video & Audio |
|
| Image Sensor |
1/2.7" + 1/2.8" CMOS sensor |
| Resolution |
Upper cam: 5120 x 1920 (10MP), Lower cam: 3840 x 2160 (8MP) |
| Lens |
Upper cam: f=2.8mm, F=1.6, Lower cam: f=6mm, F=1.6 |
| Video Compression |
H.264/H.265 |
| Zoom |
Digital zoom |
| Field of View |
Upper Cam: H:180°, V:65°, Lower Cam: H:55°, V:30° |
| Infrared Night Vision |
Up to 30 meters (100ft) (auto-switching with IR-cut filter) |
| Color Night Vision |
With spotlight: 8pcs/7W/6000K |
| Frame Rate |
Main stream: 2fps - 20fps (default: 20fps), Sub stream: 4fps - 20fps (default: 20fps) |
| Code Rate |
Upper cam: Main stream: 3072Kbps - 8192Kbps (default: 6144Kbps),
Sub stream: 256Kbps - 2048Kbps (default: 1536Kbps),
Lower cam: Main stream: 3072Kbps - 7168Kbps (default: 5120Kbps),
Sub stream: 256Kbps - 1228Kbps (default: 1228Kbps)
|
| Audio |
Two-way audio |
| Power Requirements |
|
| PoE |
IEEE 802.3at, 48V, active |
| DC Power |
DC 12.0V⎓2A, <24W |
| Interface |
|
| Power Port |
DC power port |
| Ethernet Port |
One 10M/100Mbps; RJ45 |
| SD Card Slot |
Supports Max. 512GB microSD card |
| Reset Button |
YES |
| Audio In/Out |
Built-in microphone and speaker |
| Pan & Tilt |
|
| PT Angle (Max.) |
Pan: 350°, Tilt: 50° |
| Pan Speed |
60/4°-60°/s |
| Tilt Speed |
30/8°-30°/s |
| Preset Points |
Suppots 1 guard position & up to 64 preset positions |
| Patrol |
Supports 1 patrol; up to 4 presets per patrol |
| Sync Tracking |
YES |
| Software |
|
| Browsers Supported |
Edge, Chrome, Firefox, Safari |
| OS Supported |
PC: Windows, Mac OS; Smartphone: iOS, Android |
| Protocols & Standards |
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P |
| User Access |
Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams) |
