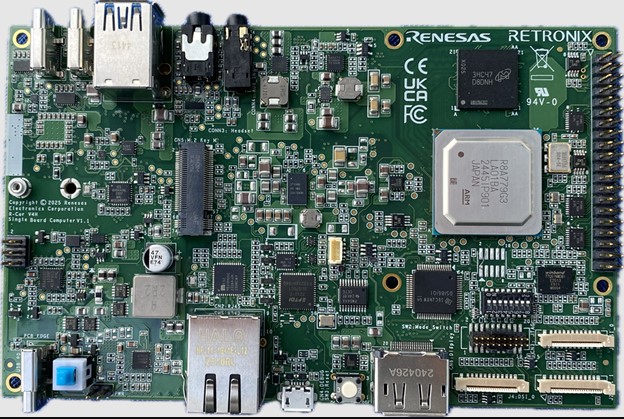

Retronix Sparrow Hawk R-Car V4H Single Board Computer
Retronix Sparrow Hawk R-Car V4H Single Board Computer is a high-performance AI and edge computing development platform built around the Renesas R-Car V4H automotive-grade System-on-Chip (SoC). It is designed for AI inference, robotics, industrial automation, smart manufacturing, autonomous mobile machines, and embedded vision applications.
The board combines powerful Arm processing cores, dedicated AI acceleration, extensive industrial I/O, and an open Linux software ecosystem, making it suitable for rapid prototyping as well as commercial edge AI development. It supports Yocto Linux and Debian Linux and is compatible with Raspberry Pi HAT expansion modules.
Features:
- Support Renesas R-Car V4H series Processor
- 8GB/16GB LPDDR5 memory
- GPU AXM-8-256 @ 600MHz, >150 GFLOPS
- Communicatioon: CAN, Ethernet AVB
- PCIe Gen4 x 1
- Computing power up to 30 TOPS
- Target Applications: Autonomous Mobile Manipulator, Smart Manufacturing, Smart Healthcare
Specifications:
| Main |
|
| Processor |
Four Arm® Cortex®-A76 cores at 1.8GHz, Three lockstep Arm® Cortex®-R52 cores at 1.4GHz |
| Memory |
LPDDR5 6400Mbps 8GB / 5500Mbps 16GB |
| NOR Flash |
64MB Security QSPI |
| microSD Card Slot |
Support SD, SDHC, SDXC |
| I/O |
|
| Camera I/F |
2x Raspberry Pi Camera |
| Display |
1x DP, 1x Raspberry Pi Display Connector |
| Ethernet AVB |
1 Port (1Gbps) |
| Debug Serial |
2 Port |
| Audio |
In / Out |
| PCIe 4.0 |
1x M.2 Key-M |
| USB3.0 |
2x Type-C, 2x Type-A |
| CAN-FD |
2 Port |
| Extensions |
Raspberry Pi 40-Pin Connector |
| Power |
USB PD 20V 3A~5A (60~100W) |
| Environment |
|
| Operating Temperature |
0°C ~ 40°C |
| Humidity |
5% - 95% Non-condensing |
| Dimension |
|
| Form Factor |
146 × 90 mm |
| OS |
|
| Linux |
Yocto/Debian Linux |
