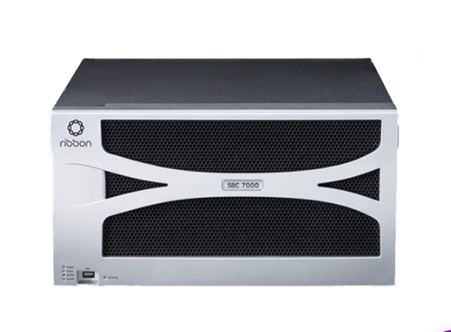

Ribbon SBC 7000, 10GbE, 5U Enterprise Session Border Controller
The Ribbon SBC 7000 is an enterprise Session Border Controller designed for high-capacity voice and communications networking environments. Its 5U rack-mount form factor provides a scalable platform with 10Gbps Ethernet media connectivity, dedicated high-availability interfaces, management ports, and modular DSP expansion.
The SBC 7000 provides four 10Gbps Ethernet fiber media ports using SFP interfaces, along with two 10Gbps Ethernet fiber high-availability ports. Two GigE management ports support RJ-45, SFP-LC-MM, and SFP-LC-SM connectivity, while a dedicated field service port, serial craft port, and alarm interface provide additional management and service options.
The modular DSP slots allow DSP expansion, while the replaceable filter and adjustable 19-inch or 23-inch mounting brackets support installation and maintenance in enterprise and telecommunications infrastructure. Status, alarm, active, locator, and power LEDs provide front-panel system indicators.
The appliance can be deployed in demanding enterprise and communications environments where high-speed media connectivity, network management, and high availability are required. Its 10GbE media and high-availability interfaces make it suitable for high-bandwidth voice and session networking infrastructure.
The SBC 7000 supports AC or DC power configurations. The AC option operates from a nominal 200–240VAC input, while the DC option supports a nominal 48VDC input. The chassis is designed for operating temperatures of 5°C to 40°C and short-term temperatures from -5°C to 55°C, with 5% to 90% non-condensing operating humidity.
Main Features
- Enterprise Session Border Controller
- 5U rack-mount form factor
- Four 10Gbps Ethernet fiber media ports
- Two 10Gbps Ethernet fiber high-availability ports
- Two GigE management ports
- Modular DSP slots
- AC and DC power options
- Maximum heat dissipation: 2900W
- Operating temperature: 5°C to 40°C
Specifications:
| Front Panel |
|
| Status Indicators |
LEDs: Status, Alarm, Active, Locator, Power |
| USB |
Single USB V2.0 interface |
| Rear Panel |
|
| Management Ports |
Two GigE Ethernet ports (RJ-45, SFP-LC-MM, SFP-LC-SM) |
| Media Ports |
Four 10 Gbps Ethernet fiber (SFP-LC-MM, SFP-LC-SM) |
| High Availability Ports |
Two 10 Gbps Ethernet fiber via SFP |
| Field Service Port |
Single Field Service port with RJ45 connector |
| Locator |
Locator LED |
| Alarm Port |
Alarm port with DB15 connector |
| Serial Port |
Single serial craft DB9 port |
| DSP Expansion |
|
| DSP Slots |
Modular DSP slots |
| Chassis |
|
| Form Factor |
5U rack mount |
| Dimensions |
17” wide x 8.75” high x 23” deep |
| Dimensions (Metric) |
43.2 cm wide x 22.2 cm high x 58.4 cm deep |
| Filter |
Replaceable filter |
| Chassis Mounting Options |
19” or 23” adjustable brackets |
| AC Power Option |
|
| Maximum Current |
15.0 A |
| RMS Input Voltage |
Minimum 180 VAC, Nominal 200-240 VAC, Maximum 264 VAC |
| Input Frequency |
Minimum 47 Hz, Nominal 50/60 Hz, Maximum 63 Hz |
| DC Power Option |
|
| Maximum Current |
62 A |
| DC Input Range |
Maximum 60 VDC, Nominal 48 VDC, Minimum 40 VDC |
| Operating Altitude |
6,000 feet / 1,800 meters |
| Heat Dissipation |
Fully-populated maximum: 2900 Watts |
| Weight |
Maximum Fully Populated: 98 lbs. (44.4 kg) |
| Environmental |
|
| Operating Temperature |
5 to 40º C operating |
| Short-Term Temperature |
-5 to 55º C short term |
| Operating Humidity |
5 to 90% non-condensing operating humidity |
| Regulatory Compliance |
|
| DC Systems |
SR-3580 NEBS Level 3 |
| GR-1089-CORE |
| GR-63-CORE |
| AC Systems |
SR-3580 NEBS Level 3 |
| GR-1089-CORE |
| GR-63-CORE |
