Imagine trying to teach a robot to pick up a delicate part without breaking it. The Robotiq FT 300-S Force Torque Sensor gives you the exact feel of force and twist, letting you control motion with human-like precision. Without this sensor, you risk damaging parts, losing repeatability, and wasting time fixing errors. This compact 6-axis device fits on most robot wrists and tells you exactly how much force or torque is applied, so you can program safe, reliable actions.

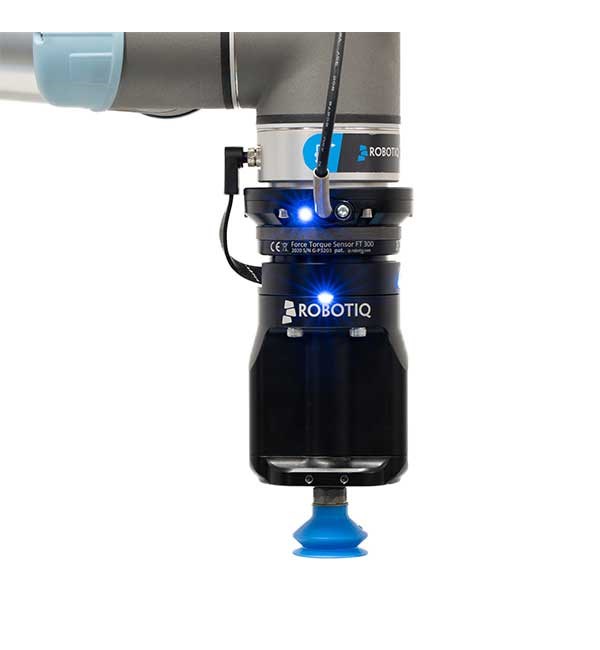

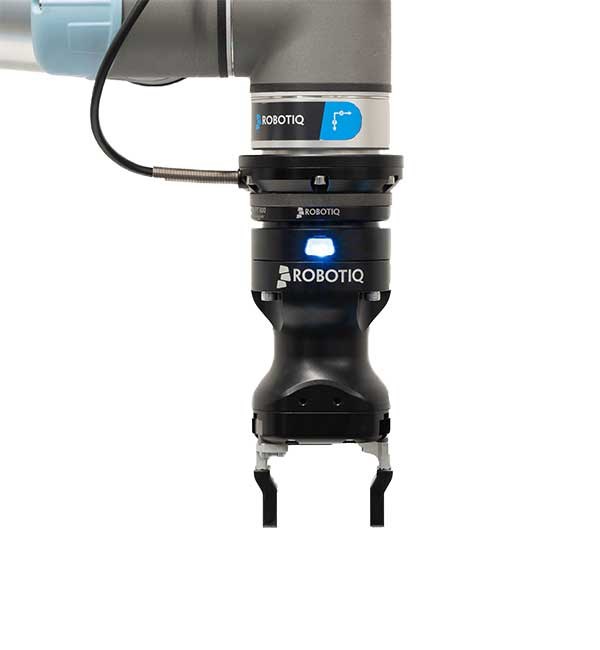

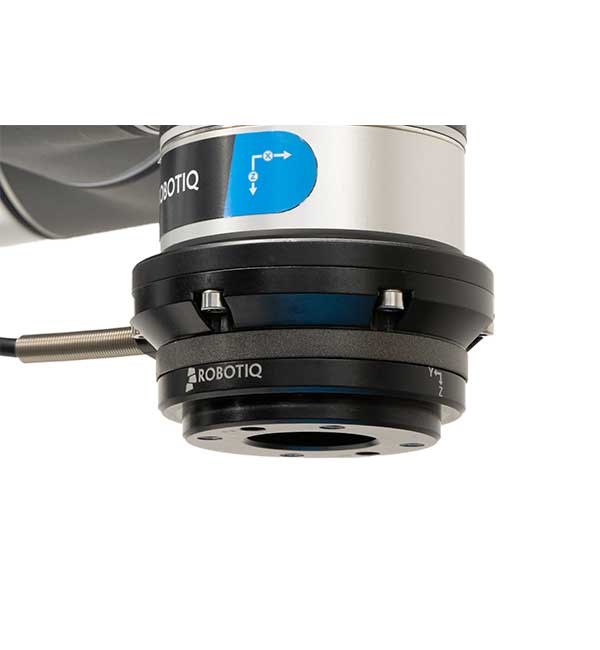

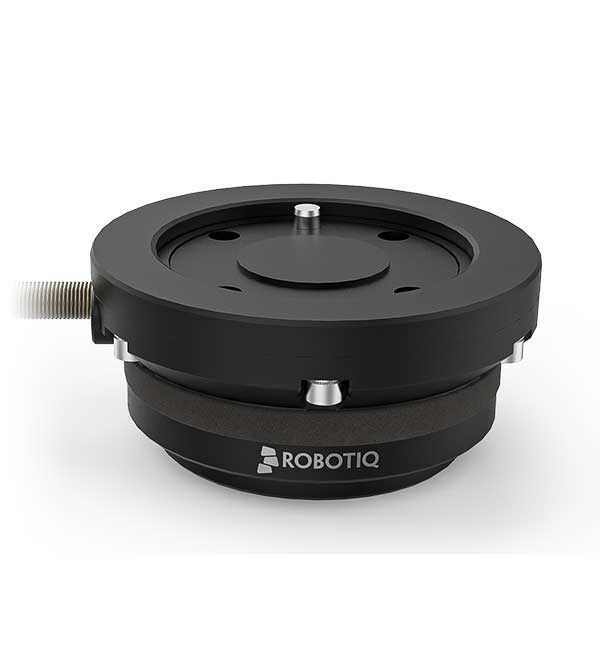

Robotiq FT 300-S Force Torque Sensor
The FT 300-S is a multi-axis force and torque sensor that enables Universal Robots to perform force sensitive tasks. It precisely detects and measures robot contacts in order to improve the robot control as well as simplifying its programming. The IP65 rating makes it perfect for any kind of applications. Whether they take place in a clean, dirty or harsh environment, the FT 300-S was designed to check all the boxes.
The FT 300-S takes precise, repeatable, and high-resolution measurements. Its stiff metal composition and wear-free sensing technology ensure high accuracy and repeatability. The sensing technology Robotiq uses also means no calibration will be needed over the life of the product. No calibration means no production downtime!
You don’t need a background in robotics to use the FT 300-S Force Torque Sensor.
Make force control easy! Enter your task parameters, press play, and perform your application.
Force Copilot does the hard work for you!
Key Features
Perform high-precision assembly tasks by simply using our free, ready-to-go software programs to perform many force-insertion tasks.
Teach your robot in seconds with our path recording software and speed up your programming of complex robot trajectories. Get more time to focus on production.
Use our URCap software to speed up and improve your programming for your specific application:
- Plug + Play for quick and easy integration
- IP65 rating perfect for harsh or dirty applications
- Fully metallic hardware suited for industrial needs
- Wear-free sensing technology means no calibration needed, no production downtime
- High resolution and no loss of precision over time
- Force Copilot programing software included
Specifications
| Product Name |
FT 300-S Force Torque Sensor |
| Manufacturer |
Robotiq |
| Sensor Type |
6-axis (6-DOF) force/torque sensor |
| Measuring Range (Force) |
300 N (FX, FY, FZ) |
| Measuring Range (Torque) |
±30 Nm (MX, MY, MZ) |
| Overload Capacity |
500% |
| Data Output Rate |
100 Hz |
| Communication |
Modbus RTU (RS485) |
| Protection Rating |
IP65 |
| Tooling Weight |
0.44 kg |
| Operating Temperature |
5 to 40°C |
| External Noise Sensitivity |
Immune |
