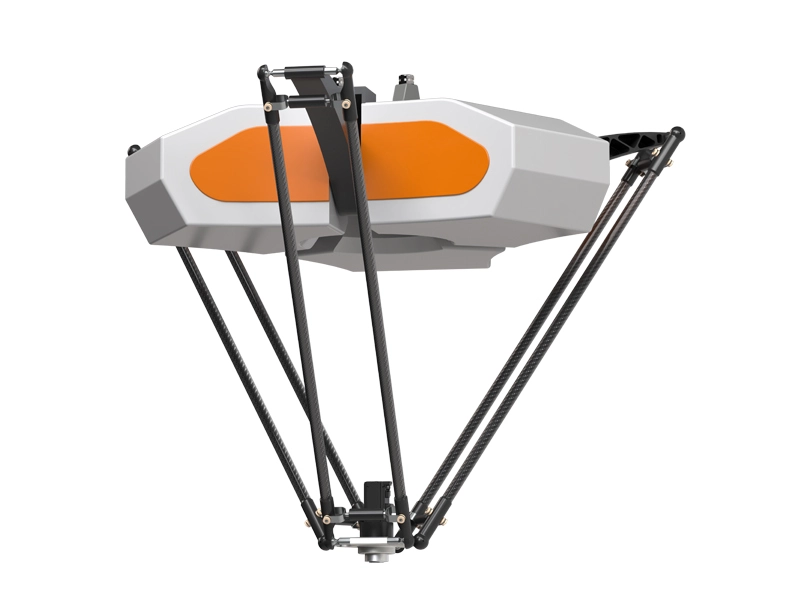

Robotphoenix BAT2000M-S15 Delta Robot - 2000mm

Imagine a production line that never slows down because a single robot can pick, place, and move heavy parts with millimetre accuracy. The Robotphoenix BAT2000M-S15 Delta Robot - 2000mm is built for that need. It is a high-speed, four-axis delta robot that works in a 2-meter circular area and can lift up to 15 kg. If you are losing time to manual handling or to slower machines, this robot removes the bottleneck and keeps your workflow smooth.

Robotphoenix BAT2000M-S15 Delta Robot - 2000mm

Many factories struggle with limited reach and inconsistent placement, which leads to scrap and overtime costs. The problem matters because every second of delay adds to labor expenses and reduces output quality. Robotphoenix solves this by offering a 2000 mm working diameter, 0.1 mm repeatable positioning, and a top speed of 10 m/s. The result is a reliable, fast, and precise tool that fits into existing lines without major redesign.

Benefits

• Fast cycle times cut production cost and increase daily output.
• High repeatability ensures every part is placed exactly the same way.
• Large 2 m work envelope reduces the need for multiple machines.
• Built-in safety features protect operators and meet industry standards.
• Energy-efficient 6.1 kW motor lowers electricity bills.

Key Features

• Model: Bat2000M-S15
• Rated load capacity: 15 kg
• Working space diameter: 2000 mm
• Four-axis design for smooth motion
• Positioning accuracy: 0.1 mm
• Axis angle accuracy: 0.05
• Maximum speed: 10 m/s
• Maximum acceleration: 150 m/s
• Power supply: three-phase AC 380V 10%, 50/60 Hz
• Rated power: 6.1 kW
• IP54 protection for dusty or humid environments
• Weight: 220 kg with built-in emergency stop and monitoring
