Robustel MG460-A5AAZ-5G-A25GL, Quad Core Cortex-A53 5G Gateway
The Robustel MG460-A5AAZ-5G-A25GL is a 5G gateway designed to provide fast cellular connectivity, wired networking, serial communication, and industrial I/O in one compact platform. It uses a quad core Cortex-A53 processor running at 1.6 GHz, 4 GB DDR4 RAM, 64 GB eMMC flash, and an NPU with 2.3 TOPS performance. This hardware configuration supports demanding gateway and edge connectivity applications.
The gateway provides 5 x RJ45 Ethernet ports supporting 10/100/1000 Mbps and 1000BASE-T compliance, with ports configurable for LAN or WAN use. It also includes 2 x RS-232/RS422/RS-485 software configurable serial ports, allowing connection to different types of industrial and automation equipment. Two digital inputs and two relay output ports provide additional options for monitoring and control applications.
For wireless connectivity, the MG460 supports 5G and 4G cellular communication with multiple antenna connections and 2 x Mini SIM (2FF) slots. It also includes dual-band Wi-Fi with 2 × 2 MU-MIMO and support for IEEE 802.11 a/b/g/n/ac/ax. GNSS functionality is provided through GPS, while a microSD slot, HDMI interface, USB ports, and console port add further connectivity options.

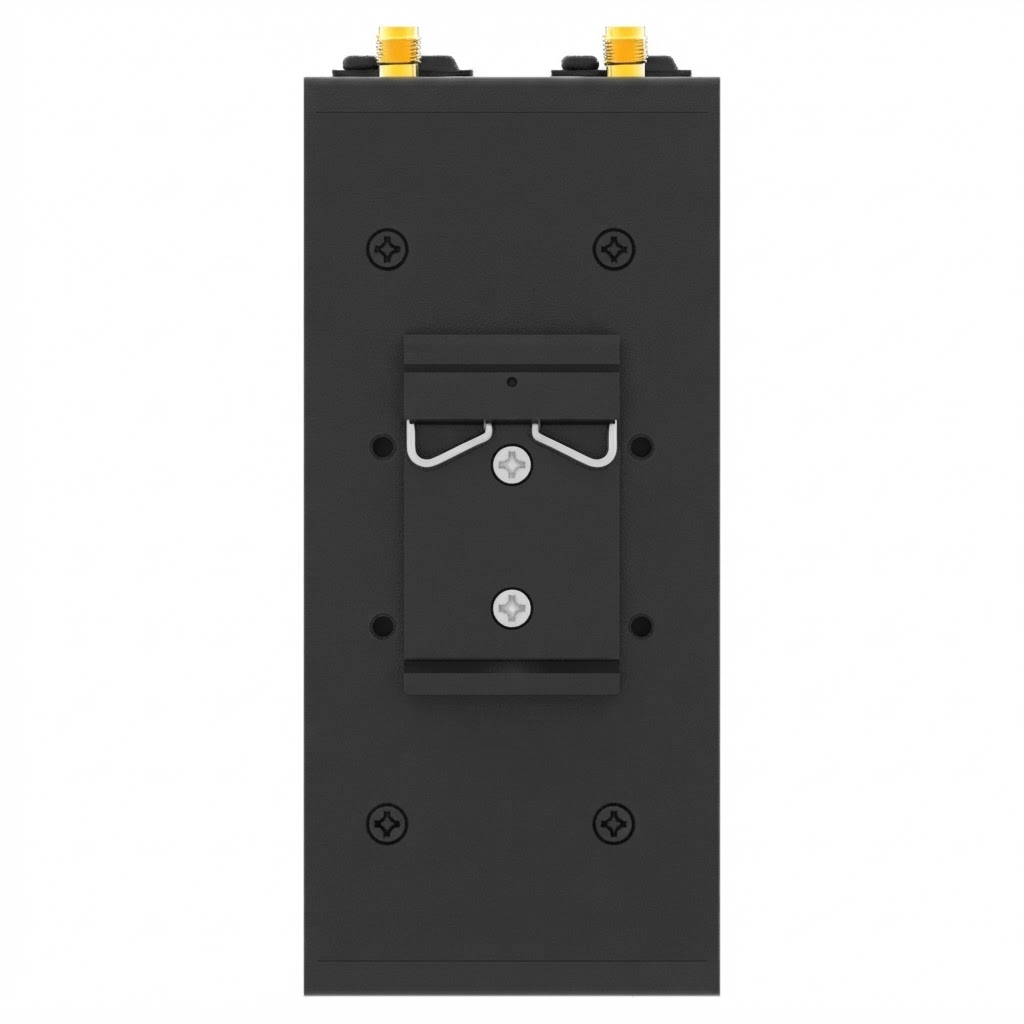

The gateway is designed for industrial installations with a metal housing, IP30 ingress protection, and operating temperatures from -30 ~ +70 °C. It supports desktop, wall mounting, and 35 mm DIN rail mounting. The power input is 24 V DC with reverse polarity protection and surge protection, while power consumption is specified as 6.24 W at idle and 14.64 W maximum at 24 V.
The Robustel MG460-A5AAZ-5G-A25GL supports a wide range of 5G NR, LTE, and WCDMA frequency bands. Its combination of 5G connectivity, Ethernet, serial interfaces, digital I/O, relay outputs, Wi-Fi, GNSS, and industrial mounting options makes it suitable for industrial networking, remote monitoring, edge connectivity, automation, and other connected applications.
Key features
-
Quad core Cortex-A53 processor at 1.6 GHz with 2.3 TOPS NPU
-
4 GB DDR4 RAM and 64 GB eMMC flash
-
5 x RJ45 10/100/1000 Mbps Ethernet ports
-
2 x software configurable RS-232/RS422/RS-485 serial ports
-
5G/4G cellular connectivity with 2 x Mini SIM (2FF)
-
Dual-band Wi-Fi 2.4 GHz/5 GHz with 2 × 2 MU-MIMO
-
2 x digital inputs and 2 x relay output ports
-
IP30 metal housing with DIN rail, wall, and desktop installation
SPECIFICATION
| Hardware System |
|
| CPU |
Quad core Cortex-A53, 1.6 GHz |
| NPU |
2.3 TOPS |
| RAM |
4 GB DDR4 |
| Flash |
64 GB eMMC |
| Cellular Interface |
|
| Version |
4G, 5G |
| Number of antennas |
2, 4 |
| Connector |
SMA-K |
| SIM |
2 x Mini SIM (2FF) |
| Ethernet Port |
|
| Number of ports |
5 x RJ45, 10/100/1000 Mbps |
| Compliance |
1000BASE-T, LAN or WAN |
| Magnet isolation protection |
1 KV |
| Serial Port |
|
| Number of ports |
2 x RS-232/RS422/RS-485 (software configurable) |
| Connector |
2 x 5-pin 3.5 mm terminal block |
| ESD protection |
8 KV Air, 4 KV Contact |
| Baud rate |
300 bps to 115200 bps |
| Signal |
RS-232: TXD, RXD, GND, CTS, RTSRS-485: Data+ (A), Data- (B), GNDRS422: RX+, RX-, TX+, TX-, GND |
| Console Port |
|
| Number of ports |
1 x RS-232 |
| Connector |
RJ45 |
| Baud rate |
115200 bps |
| Signal |
TXD, RXD, GND |
| Digital Input Port |
|
| Number of ports |
2 x DI, wet contact |
| Connector |
4-pin 3.5 mm terminal block |
| Isolation |
Bi-directional optocoupler (DI) |
| Absolute maximum VDC |
+ 30 V DC |
| Absolute maximum ADC |
100 mA |
| Signal definition |
DI1+, DI1-, DI2+, DI2- |
| Relay Output Port |
|
| Number of ports |
2 x Relay Output |
| Connector |
6-pin 3.5 mm terminal block |
| Absolute maximum VDC |
+ 48 V DC |
| Absolute maximum ADC |
100 mA |
| Signal definition |
NC1, NO1, COM1, NC2, NO2, COM2 |
| USB Port |
|
| Number of ports |
2 x USB 3.0 (host), Type A, 5V, 900mA1 x USB 2.0 (OTG), Type C |
| Wi-Fi Interface |
|
| Wi-Fi |
Wi-Fi 2.4 GHz/5 GHz , 2 × 2 MU-MIMOIEEE 802.11 a/b/g/n/ac/ax |
| GNSS Interface |
|
| Version |
4G |
| Number of antennas |
1 |
| Connector |
SMA-K |
| Technology |
GPS |
| Others |
|
| SD |
1 x microSD |
| HDMI |
1 x HDMI |
| Reset button |
1 x RST |
| LED indicators |
1 x RUN, 1 x Signal, 1 x MDM, 1 x VPN, 2 x USR |
| Watchdog |
External |
| Power Supply and Consumption |
|
| Connector |
2-pin 3.5 mm terminal block with lock |
| Input voltage |
24 V DC, reverse polarity protection, surgeprotection |
| Power consumption |
Idle: 6.24 W@24 V Max: 14.64 W@24 V |
| Physical Characteristics |
|
| Ingress protection |
IP30 |
| Housing & Weight |
Metal, 649 g |
| Dimensions |
58 x 111 x 128 mm |
| Installations |
Desktop, wall mounting and 35 mmDINrail mounting |
| Operating temperature |
-30 ~ +70 °C |
| Storage temperature |
-40 ~ +85 °C |
| Relative humidity |
5 ~ 95% RH (non-condensing) |
| Frequency Bands |
|
| 5G NR |
NSA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
SA: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
|
| 4G |
LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
LTE TDD: B34/38/39/40/41/42/43/48
|
| LAA |
B46 |
| 3G |
WCDMA: B1/2/4/5/8/19 |
| Certification |
|
| Certification |
CE UKCA RCM FCC |
| Package content |
|
| Package content |
1 x MG460 Gateway (B C ode: B014700005)1 x DIN Rail Mounting Kit |
