Robustel MG460SW-08GP2S Gigabit Managed Switch for Maritime Systems

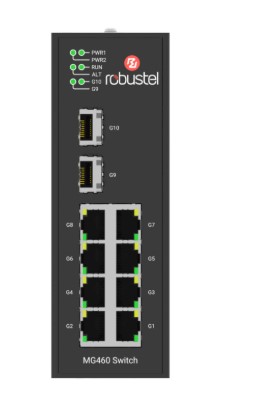

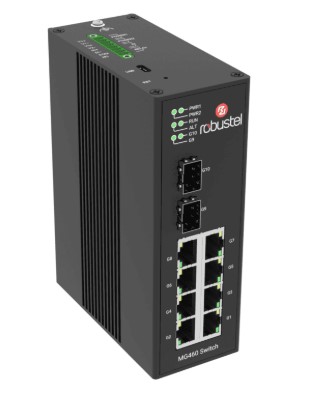

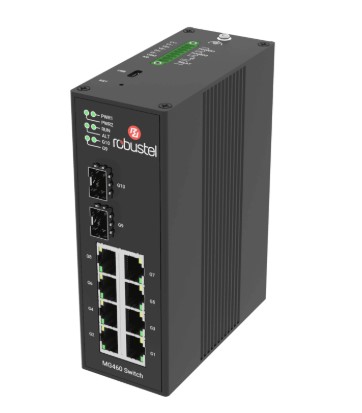

The Robustel MG460SW-08GP2S is a Gigabit managed switch designed for maritime systems that require high-speed Ethernet connectivity, PoE, fiber links, and advanced network management. It provides 8 x 10/100/1000BASE-T RJ45 ports with PoE support and 2 x SFP slots for 1000/2500BASE-X fiber connections. Its dual redundant 24 VDC power input supports maritime installations where reliable network connectivity is required.
The switch provides PoE on all eight Ethernet ports using IEEE 802.3af and IEEE 802.3at standards. Each PoE port can deliver up to 30 W, with a total PoE power budget of up to 120 W depending on power supply capacity. The two SFP slots provide additional fiber connectivity, while the USB-C console port, alarm relay, and digital input provide additional system interfaces.
With a 26 Gbps non-blocking switching capacity and a forwarding rate of 19.34 Mpps, the MG460SW-08GP2S supports high-speed data handling across connected network devices. It provides a MAC address table of 8,192 entries and supports jumbo frames up to 9,600 bytes. Layer 2+ features include VLAN, spanning tree, IGMP snooping, link aggregation, port mirroring, and storm control.
The switch also provides quality of service functions with 8 priority queues per port, multiple traffic classification methods, strict priority and weighted round robin scheduling, and per-port ingress and egress rate limiting. IEC 61162-460 compliance features include flow management, bandwidth control, admission control, and real-time flow monitoring. Security features include role-based access, MAC address limiting, secure boot, and dual-bank firmware with automatic rollback.

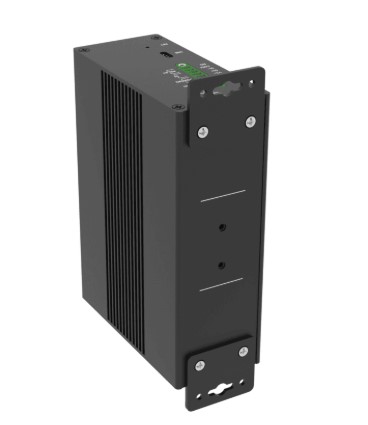

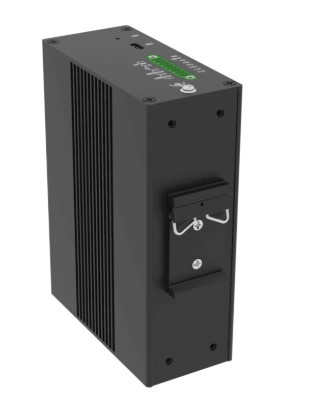

The Robustel MG460SW-08GP2S has a metal housing and supports desktop, wall mounting, and 35 mm DIN rail mounting. It operates from -25 to +70 °C and uses dual redundant 24 VDC input with an absolute input range of 9.6–60.0 VDC. With maritime-oriented interfaces, managed switching functions, PoE, fiber connectivity, and listed regulatory and environmental specifications, it is designed for maritime networking systems and other demanding industrial installations.
Key features
-
8 x 10/100/1000BASE-T RJ45 PoE ports
-
IEEE 802.3af and IEEE 802.3at PoE support
-
Up to 30 W PoE power per port and up to 120 W total
-
2 x SFP slots supporting 1000/2500BASE-X
-
26 Gbps non-blocking switching capacity
-
19.34 Mpps wire-speed forwarding rate
-
Layer 2+ VLAN, STP, RSTP, IGMP snooping, LAG, and QoS features
-
Dual redundant 24 VDC power input for maritime systems
SPECIFICATION
| Ethernet Port |
|
| Number of ports |
8 x 10/100/1000BASE-T RJ45 (G1–G8) |
| PoE ports |
G1–G8 |
| PoE standards |
IEEE 802.3af, IEEE 802.3at |
| PoE max power per port |
Up to 30 W |
| Total PoE power budget |
Up to 120 W (dependent on power supply capacity) |
| Fiber Port |
|
| Number of ports |
2 x SFP slots, 1000/2500BASE-X (G9–G10) |
| Console Port |
|
| Number of ports |
1 x USB-C console port (isolated USB device) |
| Relay Output Port* |
|
| Number of ports |
1 x Alarm Relay (dry contact) |
| Digital Input* |
|
| Number of ports |
1 x Digital Input (wet contact) |
| Switching Performance |
|
| Switching capacity |
26 Gbps (non-blocking, full duplex) |
| Forwarding rate |
19.34 Mpps (wire-speed) |
| Latency |
<10 µs (store-and-forward) |
| MAC address table |
8,192 entries |
| Jumbo frames |
Up to 9,600 bytes |
| Layer 2+ Features |
|
| VLAN |
IEEE 802.1Q, up to 4k VLANs |
| Spanning tree |
STP (802.1D), RSTP (802.1w), MRP* |
| IGMP snooping |
v1/v2/v3, IGMP Querier, 256+ multicast groups |
| Link aggregation* |
Static LAG and LACP (802.3ad) |
| Port mirroring* |
Many-to-one, ingress/egress/both |
| Storm control |
Broadcast, multicast, unknown unicast |
| Quality of Service (QoS) |
|
| Priority queues |
8 queues per port |
| Classification |
Port-based, 802.1p CoS, DSCP |
| Scheduling |
Strict Priority (SP), Weighted Round Robin (WRR) |
| Rate limiting |
Per-port ingress and egress |
| IEC 61162-460 Compliance |
|
| Flow management |
Up to 256 concurrent flows with 5-tupleclassification |
| Bandwidth control |
Guaranteed (CIR) and maximum(PIR) per flow |
| Admission control |
Prevents oversubscription |
| Flow monitoring |
Real-time bandwidth usage, statistics, alerts |
| Security |
|
| Standard |
IEC 62443-4-2 (SL-C 2)* |
| Access control |
Role-based (Admin/Operator/Viewer) |
| Port security |
MAC address limiting |
| Firmware security |
Secure boot, dual-bank with automaticrollback |
| Management |
|
| Web interface |
HTTPS with TLS 1.2/1.3 |
| Command line |
SSH (v2), USB-C console |
| SNMP |
v1, v2c, v3 (authentication + encryption) |
| Other |
Syslog, NTP client, RCMS, TFTP/SCPfirmwareupdate |
| Power Supply |
|
| Input voltage |
Dual redundant 24 VDC (type-approvedfor maritime) 9.6–60.0 VDC (absolute input range) |
| Physical Characteristics |
|
| Housing & Weight |
Metal, 553 g |
| Dimensions |
49 x 105 x 143 mm |
| Installation |
Desktop, wall mounting & 35 mmDINrail mounting |
| Operating temperature |
-25 to +70 °C |
| Regulatory and Type Approvals |
|
| Environmental |
RoHS 2.0 |
| Vibration & Shock |
IEC 60068-2-64 & IEC 60068-2-27, 5gacceleration |
| EMI |
EN 55032 Conducted Emission Class BEN 55032 Radiated Emission Class B |
| Accessories (optional) |
|
| Fiber SFP module |
2.5G SFP 1310 nm 2 km LC optical transceiver |
| Copper SFP module |
1000BASE-T copper SFP transceiver |
| ORDERING INFORMATION |
|
| CODE |
A015600001 |
| Region |
Global |
| Certification |
CE, UKCA, RCM, FCC, IC
DNV IEC 61162-460* DNV IACS UR E27* CCS IACS UR E27*
IEC 62443-4-2* |
| Package content |
1 x MG460 Switch (B Code: B015600001)
1 x DIN Rail Mounting Kit |
