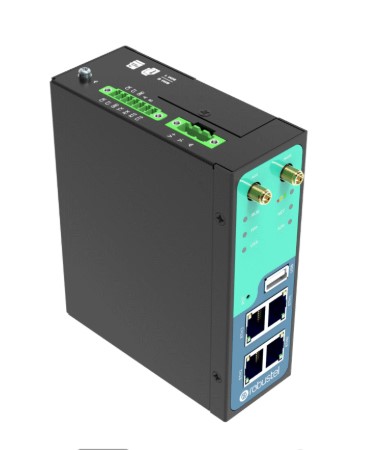

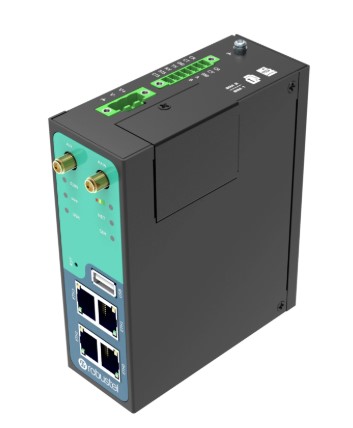

Robustel R3000-QLB, Industrial Dual-SIM 4G/LTE Router
The Robustel R3000-QLB is an industrial dual-SIM 4G/LTE router designed to provide reliable cellular and Ethernet connectivity for industrial networking applications. It features an ARM processor running at 400 MHz, 128 MB RAM, and 256 MB flash. With support for two Mini SIM cards, the router provides flexible cellular connectivity for connected systems and remote installations.
The router provides 4 x 10/100 Mbps Ethernet ports that can operate as 4 x LAN or 3 x LAN + 1 x WAN. It also includes a software selectable serial interface supporting either RS-232 or RS-485, along with a USB 2.0 host port and Micro SD interface. These interfaces allow the router to connect with network equipment, serial devices, and other industrial peripherals.
The R3000-QLB supports a wide range of networking and routing functions through RobustOS. Network protocols include PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP, SMTP, Telnet, HTTPs, ARP, VLAN, SSH2, and DDNS. It also supports IPsec, OpenVPN, GRE, and WireGuard VPN tunnels for network connectivity and remote access.
For network security, the router provides DMZ, anti-DoS, filtering, port mapping, and access control functions. Remote management is available through Web, CLI, and SMS, while routing support includes static routing and dynamic routing with BGP, OSPF V2, and RIP V1/V2. Smart Roaming V2 and RobustOS SDK support add further options for connected applications.
The Robustel R3000-QLB features a metal housing with IP30 ingress protection and supports desktop, wall mounting, and 35 mm DIN rail mounting. It operates from 12/24/48 V DC with a 9 ~ 60 V DC input range and provides reverse polarity and surge protection. With an operating temperature range of -40 ~ +75 °C, dual-SIM support, industrial interfaces, VPN capabilities, and flexible mounting options, it is designed for demanding industrial connectivity applications.
Key features
-
ARM processor at 400 MHz with 128 MB RAM
-
256 MB flash storage
-
Dual-SIM support with 2 x Mini SIM (2FF)
-
4 x 10/100 Mbps Ethernet ports with LAN/WAN configuration
-
Software selectable RS-232 or RS-485 serial interface
-
IPsec, OpenVPN, GRE, and WireGuard VPN tunnels
-
Static and dynamic routing with BGP, OSPF V2, and RIP V1/V2
-
-40 ~ +75 °C operating temperature with DIN rail mounting
SPECIFICATION
| Hardware System |
|
| CPU |
ARM, 400 MHz |
| RAM |
128 MB |
| Flash |
256 MB |
| Cellular Interface |
|
| Number of antennas |
2 (MAIN + AUX) |
| Connector |
SMA-K |
| SIM |
2 x Mini SIM (2FF) |
| Ethernet Port |
|
| Number of ports |
4 x 10/100 Mbps |
| Configuration |
4 x LAN or 3 x LAN + 1 x WAN |
| Magnet isolation protection |
1.5 KV |

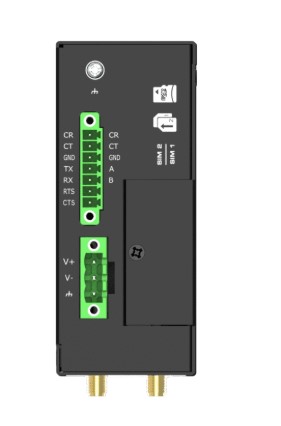

| Serial Port (Software Selectable) |
|
| Number of ports |
1 x RS-232 or 1 x RS-485 |
| Connector |
7-pin 3.5 mm female socket with lock |
| Baud rate |
300 bps ~ 230400 bps |
| Isolation |
2.5 KV (optional) |
| Flow control |
RTS/CTS (for RS-232) |
| Others |
|
| Reset button |
1 x RST |
| SD |
1 x Micro SD interface |
| USB port |
1 x USB 2.0 host, up to 480 Mbps |
| CLI |
1 x CLI interface |

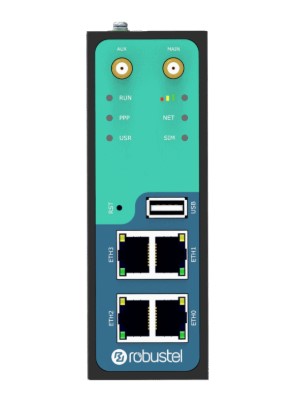

| LED indicators |
1 x RUN, 1 x PPP, 1 x USR, 1 x RSSI, 1 x NET, 1 x SIM |
| Built-in |
RTC, Watchdog, Timer |
| Power Supply and Consumption |
|
| Connector |
3-pin 5 mm female socket with lock |
| Input voltage |
12/24/48 V DC, 9 ~ 60 V DC |
| Protection |
Reverse polarity protection, surge protection |
| Power consumption |
Idle: 1.5 W@12 V Max: 5 W@12 V |
| Recommended power supply |
12 V DC/1.5 A power adapter |
| Physical Characteristics |
|
| Ingress protection |
IP30 |
| Housing & Weight |
Metal, 570 g |
| Dimensions |
43.5 x 104 x 125 mm |
| Installations |
Desktop, wall mounting and 35 mm DIN rail mounting |
| Operating temperature |
-40 ~ +75 °C |
| Storage temperature |
-40 ~ +85 °C |
| Relative humidity |
5 ~ 95% RH (non-condensing) |
| Software (Basic features of RobustOS) |
|
| Network protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, DNS, NTP,SMTP, Telnet,
HTTPs, ARP, VLAN, SSH2, DDNS, etc.
|
| VPN tunnels |
IPsec, OpenVPN, GRE, WireGuard |
| Firewalls |
DMZ, anti-DoS, Filtering (IP/Domain name/MACaddress), Port Mapping, Access Control |
| Remote management |
Web, CLI, SMS |
| Serial port protocols |
Transparent, TCP Client/Server, UDP, Modbus RTUGateway |
| Routing |
Static routing, Dynamic routing (BGP, OSPF V2, RIPV1/V2) |
| Others |
Smart Roaming V2 |
| SDK |
|
| Supported programming languages |
C, C++ |
| Flash available for SDK |
64 MB |
| RAM available for SDK |
64 MB |
