| System Architecture |
|
| Operating System |
RobustOS |
| CPU |
Dual-core ARM Cortex A53, 1.0 GHz |
| RAM |
512MB |
| Flash |
8 GB eMMC |
| Cellular |
|
| Supported Technologies |
5G, 4G/LTE, 3G, 2G |

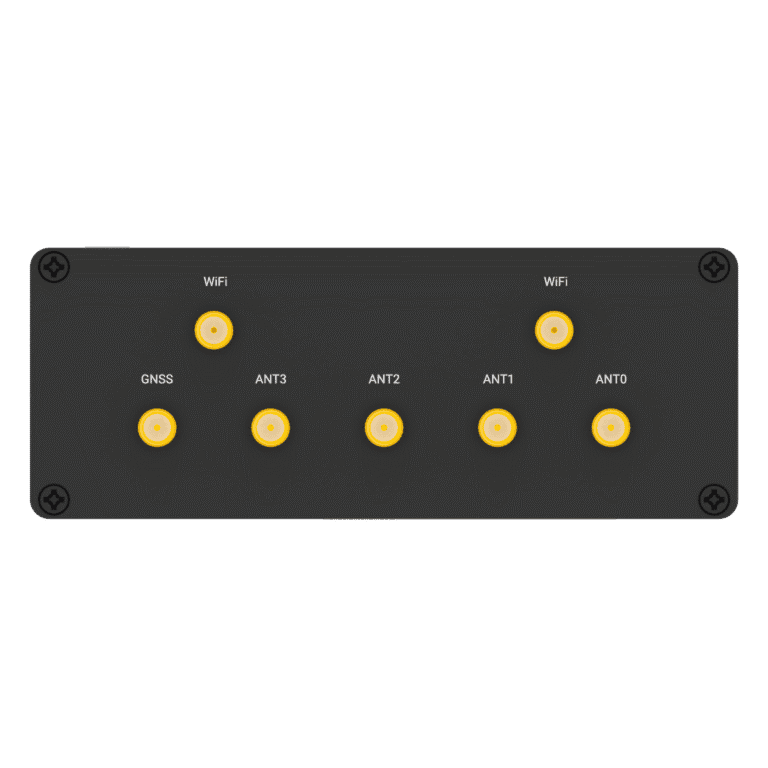

| Antennas |
4 (ANT0 + ANT1 + ANT2 + ANT3) |
| Connector |
SMA-K |
| SIM |
2 x Mini SIM (2FF) |
| Ethernet |
|
| Ethernet Ports |
5 x 10/100/1000 Mbps, 1 x WAN + 4 x LAN, or 5 x LAN optional |
| Magnet Isolation Protection |
1 KV |
| PoE In |
|
| PoE Ports |
ETH0 |
| PoE Standards |
IEEE802.3at – 42.5 – 57 V DC |
| Digital Input/Output |
|
| DI/DO Ports |
1 x DI + 1 x DO, wet contact |
| Connector |
4-pin Micro-Fit socket (shared with the power supply) |
| Absolute Maximum VDC |
+30 V DC (DI), +30 V DC (DO) |
| Absolute Maximum ADC |
100 mA (DO) |
| Signal Definition |
DI, DO, – |
| Signal Definition |
(Power Minus is also referred to as DI/DO Minus) |
| Wi-Fi |
|
| Wi-Fi Antennas |
2 (Wi-Fi 1 + Wi-Fi 2) |
| Connector |
RP-SMA-K |
| Standards |
802.11 a/b/g/n/ac/ax, 2 x 2 MIMO, supporting AP and Client modes |
| Frequency Bands |
2.412 ~ 2.472 GHz (2.4 GHz ISM band) |
| Frequency Bands |
5.15 ~ 5.825 GHz (5 GHz ISM band) |
| Security |
WPA, WPA2, WEP, WPA3 |
| Encryption |
AES, TKIP |
| GNSS/GPS |
|
| GNSS Antennas |
1 |
| Connector |
SMA-K |
| GNSS Frequency |
GPS: L1, L5 |
| GNSS Frequency |
QZSS: L1, L5 |
| GNSS Frequency |
Galileo: E1, E5a |
| GNSS Frequency |
GLONASS: L1OF |
| GNSS Frequency |
BDS: B1 |
| Other Interfaces |
|
| Reset Button |
1 x RST |

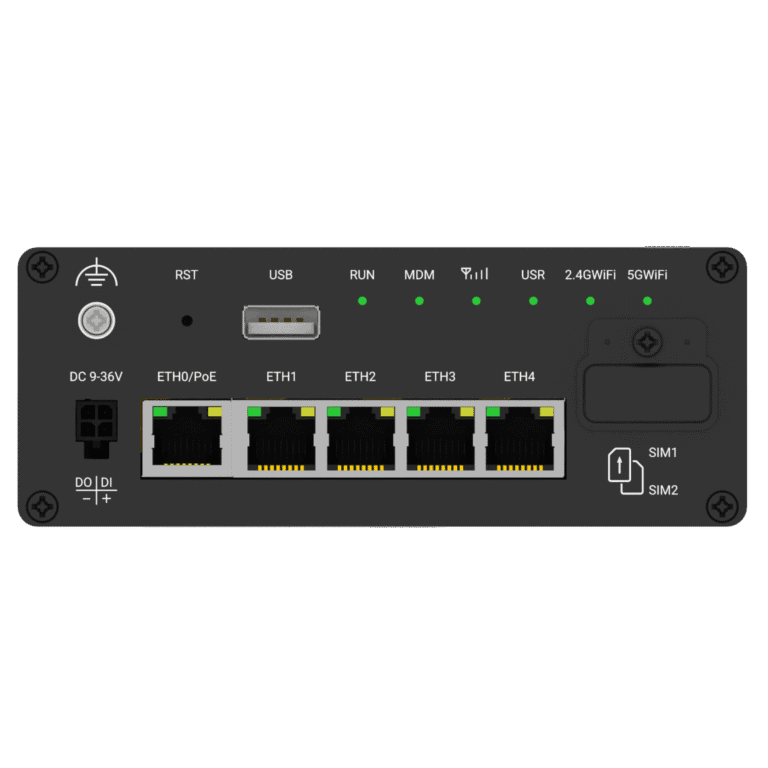

| LED Indicators |
1 x RUN, 1 x MDM, 1 x RSSI, 1 x USR, 1 x 2.4G Wi-Fi, 1 x 5G Wi-Fi |
| Watchdog |
External |
| USB |
1 x USB 2.0 (host), Type A, 5 V, 500 mA |
| Power Supply & Consumption |
|
| PSU Connector |
4-pin Micro-Fit socket |
| Input Voltage |
12/24 V DC, 9 ~ 36 V DC |
| Input Voltage |
Reverse polarity protection, surge protection |
| Power Consumption |
Idle: 6 W@24 V |
| Power Consumption |
Max: 16.5 W @24 V |
| Recommended Power Supply |
24 V DC/1.5 A power adapter |
| Physical Characteristics |
|
| Ingress Protection |
IP30 |
| Housing & Weight |
Metal, 581 g |
| Dimensions |
49 x 105 x 128 mm |

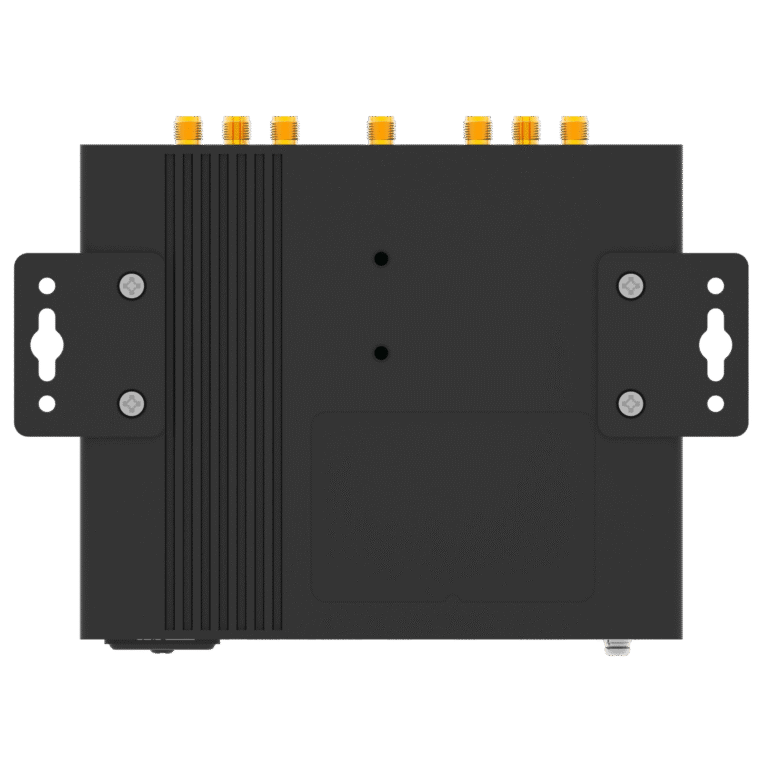

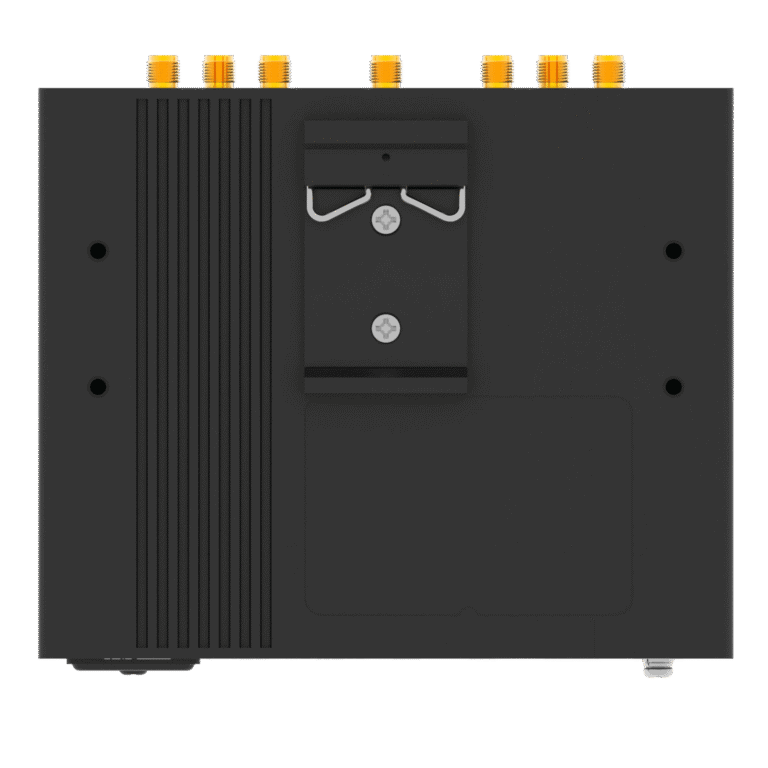

| Installation Options |
Desktop, Wall Mount and 35mm DIN Rail |
| Operating Temperature |
-20 – +70 °C |
| Storage Temperature |
-40 – +85 °C |
| Relative Humidity |
5 – 95% RH (non-condensing) |
| Software Features |
|
| Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, NTP,
SMTP, Telnet, ARP, VLAN, SSH2, DDNS, etc.
|
| VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewalls |
DMZ, anti-DDoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
| Remote Management |
RCMS, Web, CLI, SMS |
| Serial Port Protocols |
Transparent, TCP Client/Server, UDP, Modbus RTU to TCP |
| SIM Management |
Smart Roaming |
| Optional Apps |
L2TP, PPTP, DMVPN, VRRP, QoS, SNMP, Language, RCMS,
Dynamic Route, Captive Portal, Modbus Master, TR069, Edge2Cloud, etc.
|
| Software Development Kit (SDK) |
|
| Supported Programming Languages |
C, C++ |
| Flash available for SDK |
6.5GB |
| RAM available for SDK |
128MB |
| Regulatory and Type Approvals |
|
| Environmental |
RoHS 2.0 |
| Testing |
IEC 60068-2-6 (Sinusoidal Vibration) |
| Testing |
IEC 60068-2-27 (Mechanical Shock) |
| Testing |
IEC 60068-2-64 (Random Vibration) |
| EMI |
EN 55032 Conducted Emission Class B |
| EMI |
EN 55032 Radiated Emission Class B |
| EMS |
EN 61000-4-2 (ESD) Contact Level 2, Air Level 3 |
| EMS |
EN 61000-4-3 (RS) Level 2 |
| EMS |
EN 61000-4-4 (EFT) Level 2 |
| EMS |
EN 61000-4-5 (Surge) Level 2 |
| EMS |
EN 61000-4-6 (CS) Level 2 |
| EMS |
ISO 7637-2 (Surge) Level 3 |
