Imagine a busy warehouse where pallets sit idle because workers cannot move them fast enough. The Rockwell Automation Meet OTTO 1500 AUTONOMOUS MOBILE ROBOTS is a self-driving carrier that lifts heavy loads and travels through narrow aisles without a driver. When you struggle with slow manual forklifts, missed deadlines, and high labor costs, this robot gives you a reliable way to keep goods moving.

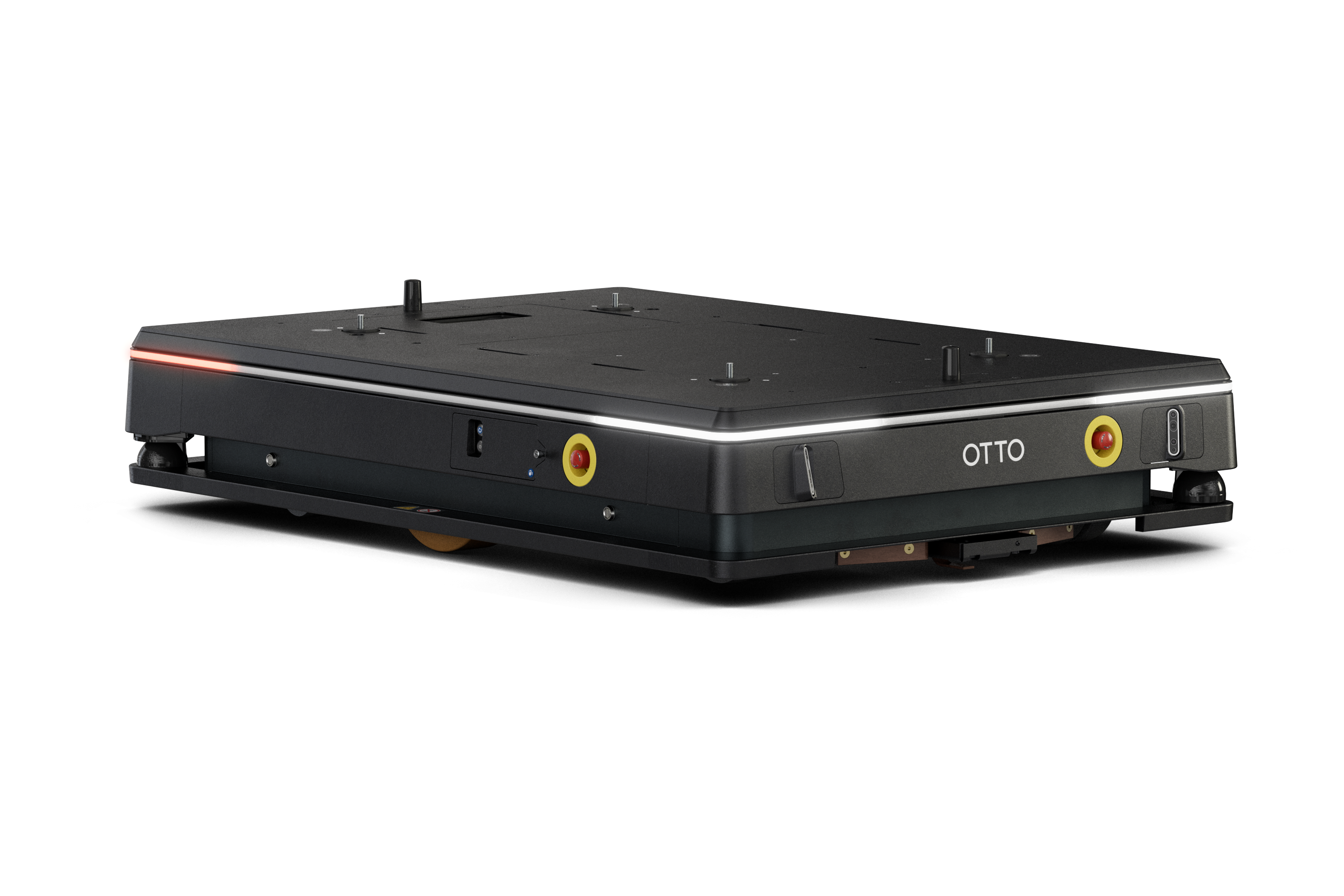

Rockwell Automation Meet OTTO 1500 AUTONOMOUS MOBILE ROBOTS
The main problem many factories face is the bottleneck created by manual material handling. When a single operator must load, transport, and unload heavy items, any delay stops the whole line. This matters because every minute of downtime adds cost and reduces output. The OTTO 1500 solves the issue by carrying up to 1,900 kg, navigating aisles as narrow as 1.9 m, and docking with precision, so you get continuous flow without extra staff.
Benefits
- Boosts productivity by moving heavy loads faster than a human operator.
- Reduces labor costs because one robot can replace several forklift drivers.
- Improves safety by removing people from high-traffic zones.
- Offers 10 hour runtime, so it works through an entire shift without recharging.
- Provides precise docking, eliminating errors in loading and unloading.
Usages
Use the OTTO 1500 in a distribution center to carry pallets from receiving to storage. Deploy it on a production line to move raw material carts between stations. It works in e-commerce fulfillment areas to bring pick-lists to packers. The robot can also serve in automotive plants, transporting heavy components across large floor spaces while avoiding obstacles.
Key Features
- Maximum load capacity of 1,900 kg.
- Maximum speed of 2.0 m/sec for quick transport.
- Turn-in-place capability for tight aisle navigation.
- 80 Ah battery with 60-minute fast charge.
- Intelligent braking with redundant safety monitoring.
- Four Intel RealSense cameras and two SICK sensors for 360 perception.
- Solid-state military-grade computer with dedicated GPU.
- Wi-Fi 2.4/5 GHz with dual long-range antennas for reliable communication.
- Standard safety interfaces including dual E-Stop and safety-rated GPIO.
- IP20 rating, operating from 0 C to 40 C and 10-95% non-condensing humidity.
Specifications
| Performance |
|
| Max. Capacity |
1,900 kg (4,190 lb) |
| Min. Aisle Width (One Way) |
1,915 mm (78 in) |
| Max. Speed |
2.0 m/sec (4.5 mph) |
| Max. Docking Speed |
0.3 m/sec (0.7 mph) |
| Docking Precision |
± 10 mm (x,y) ± 10 (yaw) Standard |
| Chassis |
|
| Dimensions |
1,837 x 1,283 x 351 mm (72.3 x 50.5 x 13.85 in) |
| Mass |
627 kg (1,382 lb) |
| Turning Radius |
Turn in place |
| Max. Turning Speed |
1.5 rad/sec (90°/sec) |
| Min. Aisle Width (Two Way) |
3,570 mm (146 in) |
| Ground Clearance |
16 mm (5/8 in) |
| Traversable Gap |
16 mm (5/8 in) |
| Docking Precision |
± 5 mm (x,y) ± 10 (yaw) Upgrade |
| Suspension |
Passive, Rocker |
| Energy System |
|
| Battery Capacity |
80 Ah |
| Charge Time |
60 min (10% to 90%) |
| Runtime |
10 hr (90% to 10%) |
| Battery Voltage |
52.8 V |
| Max Charge Rate |
80 A |
| Battery Life |
3,000 full charge cycles |
| Battery Charging |
Autonomous Opportunity Charging (Default) |
| Battery Charging Options |
Manual Charging |
| Safety System |
|
| Intelligent Braking |
Redundant monitoring with safety-system interlock |
| Standards Compliance |
CE marked, ANSI/ITSDF B56.5, RIA R15.08-1,
ISO 12100/13849-1/3691-4, FCC Part 15 Subpart B / ICES-003, ICES-002, EN 1175-1/60204-1
|
| Adaptive Fieldsets |
Intelligent PL-d rated switching fieldsets (patent-pending) |
| Manual Control |
Pendant-based manual control. Guided autonomous control available via OTTO software interface. |
| Automation Interface |
|
| Power Interface |
24 VDC, 10 A, regulated, unswitched 52.8 VDC nominal, 50 A, unregulated |
| Safety Interface |
Dual-channel E-Stop breakout, 2 safety-rated GPIO, 1 attachment interface fault line |
| Signal Interface |
1x Ethernet, 1x USB 3.1, 1x HDMI 1 CAN Bus, 5 GPIO (2 safety rated) 1 interface control line |
| Control System |
|
| Sensors |
4x Intel RealSense Cameras 2x SICK Microscan3 (360° FOV) Embedded 6-axis IMU |
| Computer |
Solid-state Military Spec Computer with dedicated GPU |
| Communication |
WiFi 2.4 / 5 GHz (802.11 a/b/g/n/ac) 2x Long-range Omnidirectional Antennae |
| Environmental |
|
| IP Classification |
IP20 |
| Humidity |
10-95% non-condensing |
| Temperature |
0 to 40° C |
| E-Stop |
4 E-Stops (1 per side) + user E-Stop circuit interface |
| Accessories (Sold Separately) |
|
| Charging |
Autonomous Supercharger (80 A) |
| Charging |
Manual Trickle Charger (25 A) |
