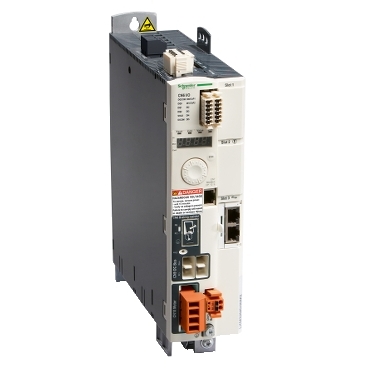

| Main |
|
| Range of Product |
Lexium 32 |
| Device short name |
LXM32M |
| Product or Component Type |
Motion servo drive |
| Format of the drive |
Book |
| Phase |
Three phase |
| [Us] rated supply voltage |
200...240 V - 15...10 %
380...480 V - 15...10 %
|
| Supply voltage limits |
170…264 V
323…528 V
|
| Supply frequency |
50/60 Hz - 5...5 % |
| Network Frequency |
47.5...63 Hz |
| EMC filter |
Integrated |
| Continuous output current |
3 A 8 kHz |
| Output current 3s peak |
12 A 208 V 5 s
12 A 480 V 5 s
|
| Continuous power |
800 W 208 V
1600 W 400 V
1600 W 480 V
|
| Nominal power |
0.7 kW 208 V 8 kHz
0.9 kW 400 V 8 kHz
0.9 kW 480 V 8 kHz
|
| Line current |
3.1 A 79 % 208 V, with external line choke 2 mH
3.4 A 90 % 400 V, with external line choke 2 mH
2.9 A 98 % 480 V, with external line choke 2 mH
3.6 A 136 % 208 V, without line choke
2.9 A 177 % 400 V, without line choke
2.4 A 182 % 480 V, without line choke
|
| Complementary |
|
| Switching frequency |
8 kHz |
| Overvoltage category |
III |
| Maximum leakage current |
30 mA |
| Output voltage |
<= power supply voltage |
| Electrical isolation |
Between power and control |
| Type of cable |
Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection |
Terminal 3 mm², AWG 12 CN8) |
| |
Terminal 5 mm², AWG 10 CN1) |
| |
Terminal 5 mm², AWG 10 U/T1, V/T2, W/T3) |
| Tightening torque |
CN8 4.4 lbf.in (0.5 N.m) |
| |
CN1 6.2 lbf.in (0.7 N.m) |
| |
U/T1, V/T2, W/T3 6.2 lbf.in (0.7 N.m) |
| Discrete input number |
2 capture |
| |
2 safety |
| |
4 logic |
| Discrete input type |
Capture CAP |
| |
Logic DI |
| |
Safety compliment of STO_A, compliment of STO_B |
| Sampling duration |
DI 0.25 ms discrete |
| |
0.25 ms |
| Discrete input voltage |
24 V DC capture |
| |
24 V DC logic |
| |
24 V DC safety |
| Discrete input logic |
Positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 |
| |
Positive DI)> 19 V < 9 V EN/IEC 61131-2 type 1 |
| |
Positive or negative DI)< 5 V > 15 V EN/IEC 61131-2 type 1 |
| Response time |
<= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number |
3 |
| Discrete output type |
Logic DO)24 V DC |
| Discrete output voltage |
<= 30 V DC |
| Discrete output logic |
Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time |
<= 1 ms compliment of STO_A, compliment of STO_B |
| |
2 µs CAP |
| |
0.25 µs...1.5 ms DI |
| Braking current |
50 mA |
| Response time on output |
250 µs DO)discrete |
| Control signal type |
Servo motor encoder feedback |
| |
Pulse train output (PTO) RS422 <500 kHz <328.08 ft (100 m) |
| |
Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (open collector) <10 kHz <3.3 ft (1 m) |
| |
Pulse/direction (P/D), A/B, CW/CCW 5 V, 24 V link (push-pull) <200 kHz <32.8 ft (10 m) |
| |
Pulse/direction (P/D), A/B, CW/CCW RS422 <1000 kHz <328.08 ft (100 m) |
| Protection type |
Against reverse polarity inputs signal |
| |
Against short-circuits outputs signal |
| Safety function |
STO (safe torque off), Integrated |
| |
SS1 (safe stop 1), with separated eSM safety card |
| |
SS2 (safe stop 2), with separated eSM safety card |
| |
SLS (safe limited speed), with separated eSM safety card |
| |
SOS (safe operating stop), with separated eSM safety card |
| Safety level |
SIL 3 EN/IEC 61508 |
| |
PL = e ISO 13849-1 |
| Communication interface |
Modbus TCP, with separated communication card |
| |
CANopen, with separated communication card |
| |
CANmotion, with separated communication card |
| |
Ethernet/IP, with separated communication card |
| |
EtherCAT, with separated communication card |
| |
Profibus, with separated communication card |
| |
Profinet, with separated communication card |
| |
Analog I/O, with separated communication card |
| |
Digital I/O, Integrated |
| Status LED |
1 LED (Red) servo drive voltage |
| Signalling function |
Display of faults 7 segments |
| Marking |
CE |
| Operating position |
Vertical +/- 10 degree |
| Product compatibility |
Servo motor BMH 2.8 in (70 mm), 1 |
| |
Servo motor BMH 2.8 in (70 mm), 2 |
| |
Servo motor BMH 3.9 in (100 mm), 1 |
| |
Servo motor BSH 2.8 in (70 mm), 1 |
| |
Servo motor BSH 2.8 in (70 mm), 2 |
| |
Servo motor BMH 2.8 in (70 mm), 3 |
| |
Servo motor BSH 2.2 in (55 mm), 3 |
| |
Servo motor BSH 2.8 in (70 mm), 3 |
| |
Servo motor BSH 3.9 in (100 mm), 1 |
| Width |
2.7 in (68 mm) |
| Height |
10.6 in (270 mm) |
| Depth |
9.3 in (237 mm) |
| Product Weight |
4.2 lb(US) (1.9 kg) |
| Environment |
|
| Electromagnetic compatibility |
Conducted EMC, class A group 1 EN 55011 |
| |
Conducted EMC, class A group 2 EN 55011 |
| |
Conducted EMC, environment 2 category C3 EN/IEC 61800-3 |
| |
Conducted EMC, category C2 EN/IEC 61800-3 |
| |
Conducted EMC, environments 1 and 2 EN/IEC 61800-3 |
| |
Electrostatic discharge immunity test, level 3 EN/IEC 61000-4-2 |
| |
Susceptibility to electromagnetic fields, level 3 EN/IEC 61000-4-3 |
| |
1.2/50 µs shock waves immunity test, level 3 EN/IEC 61000-4-5 |
| |
Electrical fast transient/burst immunity test, level 4 EN/IEC 61000-4-4 |
| |
Radiated EMC, class A group 2 EN 55011 |
| |
Radiated EMC, category C3 EN/IEC 61800-3 |
| Standards |
EN/IEC 61800-5-1 |
| |
EN/IEC 61800-3 |
| Product Certifications |
TÜV |
| |
CSA |
| |
UL |
| IP degree of protection |
IP20 conforming to EN/IEC 60529 |
| |
IP20 conforming to EN/IEC 61800-5-1 |
| Vibration resistance |
1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| |
1.5 mm peak to peak (f= 3…13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance |
15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree |
2 EN/IEC 61800-5-1 |
| Environmental characteristic |
Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity |
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation |
32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
| Type of cooling |
Integrated fan |
| Operating altitude |
<= 3280.84 ft (1000 m) without derating |
| |
> 3280.84...9842.52 ft (> 1000...3000 m) with conditions |
