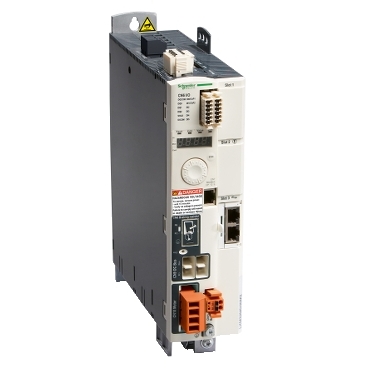

Main
|
|
| Range of Product |
Lexium 32 |
| Device short name |
LXM32S |
| Product or Component Type |
Motion servo drive |
| Format of the drive |
Book |
| Phase |
Single phase |
| [Us] rated supply voltage |
100...120 V - 15...10 %
200...240 V - 15...10 %
|
| Supply voltage limits |
85…132 V
170…264 V
|
| Supply frequency |
50/60 Hz - 5...5 % |
| Network Frequency |
47.5...63 Hz |
| EMC filter |
Integrated |
| Continuous output current |
6 A 8 kHz |
| Output current 3s peak |
10 A 115 V 5 s
18 A 230 V 5 s
|
| Continuous power |
800 W 115 V
1600 W 230 V
|
| |
1600 W 230 V |
| Nominal power |
0.5 kW 115 V 8 kHz
1 kW 230 V 8 kHz
|
| Line current |
9.9 A 74 % 115 V, with external line choke 2 mH
10.6 A 93 % 230 V, with external line choke 2 mH
8.5 A 147 % 115 V, without line choke
8.4 A 148 % 230 V, without line choke
|
| Complementary |
|
| Switching frequency |
8 kHz |
| Overvoltage category |
III |
| Maximum leakage current |
30 mA |
| Output voltage |
<= power supply voltage |
| Electrical isolation |
Between power and control |
| Type of cable |
Single-strand IEC cable 122 °F (50 °C)) copper 90 °C XLPE/EPR |
| Electrical connection |
Terminal 3 mm², AWG 12 PA/+, PBI, PBe) |
| Tightening torque |
PA/+, PBI, PBe 4.4 lbf.in (0.5 N.m) |
| Discrete input number |
2 capture |
| Discrete input type |
Capture CAP |
| Sampling duration |
0.25 ms |
| Discrete input voltage |
24 V DC capture |
| Discrete input logic |
Positive compliment of STO_A, compliment of STO_B)< 5 V > 15 V EN/IEC 61131-2 type 1 |
| Response time |
<= 5 ms compliment of STO_A, compliment of STO_B |
| Discrete output number |
3 |
| Discrete output type |
Logic DO)24 V DC |
| Discrete output voltage |
<= 30 V DC |
| Discrete output logic |
Positive or negative DO)EN/IEC 61131-2 |
| Contact bounce time |
<= 1 ms compliment of STO_A, compliment of STO_B |
| Braking current |
50 mA |
| Response time on output |
250 µs DO)discrete |
| Safety function |
STO (safe torque off), Integrated |
| Safety level |
SIL 3 EN/IEC 61508 |
| Communication interface |
SERCOS III, Integrated |
| Status LED |
1 LED (Red) servo drive voltage |
| Signalling function |
Display of faults 7 segments |
| Marking |
CE |
| Operating position |
Vertical +/- 10 degree |
| Product compatibility |
Servo motor BMH 2.8 in (70 mm), 1 |
| Width |
2.7 in (68 mm) |
| Height |
10.6 in (270 mm) |
| Depth |
9.3 in (237 mm) |
| Product Weight |
4.2 lb(US) (1.9 kg) |
| Environment |
|
| Electromagnetic compatibility |
Conducted EMC EN 55011 class A group 1 |
| Standards |
EN/IEC 61800-3 |
| Product Certifications |
CSA |
| IP degree of protection |
IP20 conforming to EN/IEC 60529 |
| Vibration resistance |
1 gn (f= 13…150 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance |
15 gn 11 ms EN/IEC 60028-2-27 |
| Pollution degree |
2 EN/IEC 61800-5-1 |
| Environmental characteristic |
Classes 3C1 conforming to IEC 60721-3-3 |
| Relative humidity |
Class 3K3 (5 to 85 %) without condensation IEC 60721-3-3 |
| Ambient air temperature for operation |
32…122 °F (0…50 °C) UL |
| Ambient Air Temperature for Storage |
-13…158 °F (-25…70 °C) |
| Type of cooling |
Integrated fan |
| Operating altitude |
<= 3280.84 ft (1000 m) without derating |
| Ordering and shipping details |
|
| Category |
US1PC5118261 |
| Discount Schedule |
PC51 |
| GTIN |
3606480694752 |
| Returnability |
Yes |
| Country of origin |
ID |
