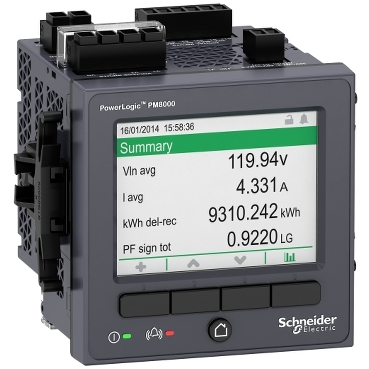

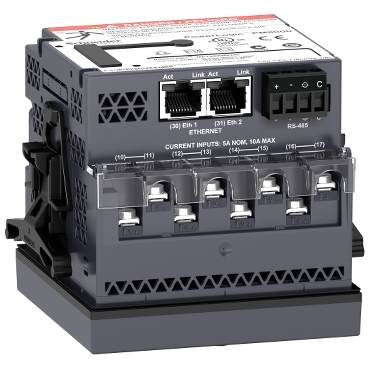

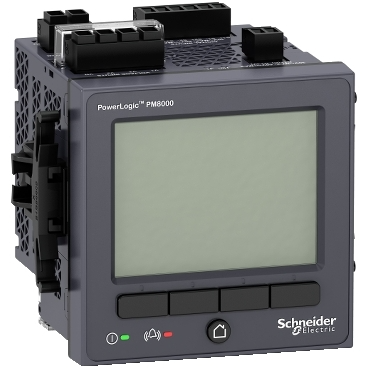

Schneider Electric METSEPM8240 PowerLogic PM8240 Power Meter
The PowerLogic PM8000 series meters are compact, cost-effective multifunction power meters that will help you ensure reliability and efficiency of your power-critical facility. They reveal and provide understanding of complex power quality conditions enabling action to be taken to mitigate any issue. The PowerLogic PM8000 series meters have the versatility to perform nearly any job you need a meter to do, wherever you need it! The modular, flexible ION technology architecture enables a simple, building block approach for customizing each meter to any application.
With patented Disturbance Direction Detection, revenue grade accuracy, multiple communication ports, onboard power quality analysis, web interface and a color graphical display. Certified by third party labs for energy accuracy (IEC 62052-11, IEC 62052-22, IEC 62052-24) and power quality (IEC 62586-2, IEC 61000-4-30 Class S). The PowerLogic PM8000 series provides data quality confidence you can count on.
Cybersecurity features include secure protocols (HTTPS, SFTP), security event logging, Syslog protocol. Ability to enable/disable communication ports, and 50 user configurable accounts. With 512 MB of memory to support 50 data logs, 50+ user-definable alarms, waveform captures, 1/2 cycle RMS logging, custom web pages, min/max logs, energy trends, and Time of Use.
The ability to timestamp events to +/-1 ms utilizing time synchronization method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules.
The ability to timestamp events to +/-1ms utilizing time synchronization. Time synch method that include PTP (IEEE1588), NTP, IRIG-B, GPS ASCII (RS485) and network time set function. 3 digital inputs and one digital output, plus the ability to add up to 4 option modules.
I/O option modules include 2 relays and 6 digital inputs or 2 analog outputs and 4 analog inputs. Wide control power range of 90-415 VAC / 110-415 VDC. Operating environment of -25 to +70C; Humidity rating of 5% to 95%; Altitude up to 3000 m. Panel mounting (1/4 DIN) with integrated display.
Specifications
| Range |
PowerLogic |
| Product Name |
PowerLogic PM8000 |
| Product Type |
Power meter |
| Device Short Name |
PM8240 |
| Model Type |
Standard |
| Power Quality Analysis |
Conforming to EN 50160: 2010 compliance report
conforming to IEEE 519: 2014 compliance report
conforming to IEC 61000-4-30: class S power quality measurement
up to the 63rd harmonic
harmonic distortion
waveform capture
voltage sag and swell detection
programmability (logic and math functions)
conforming to IEC 62586 power quality monitoring
disturbance direction detection
rapid voltage change |
| Device Application |
Power monitoring; WAGES metering |
| Type of Measurement |
Current; Voltage; Frequency; Active and reactive power total; Apparent power total; Power factor total; Active and reactive power per phase, rms; Apparent power per phase, rms; Power factor per phase, rms |
| Supply Voltage |
90...415 V AC 45...65 Hz +/- 10 %; 110...415 V DC +/- 10 % |
| Network Frequency |
50 Hz; 60 Hz |
| [In] Rated Current |
1 A; 5 A; 10 A |
| Poles Description |
3P + N; 3P; 1P + N |
| Power Consumption |
16 VA at 230 V AC |
| Display Type |
Colour TFT LCD |
| Display Resolution |
320 x 240 pixels QVGA |
| Sampling Rate |
256 samples/cycle |
| Measurement Current |
50…10000 mA |
| Analogue Input Type |
Voltage (impedance 5 MOhm); Current (impedance 0.3 mOhm) |
| Measurement Voltage |
57…400 V AC 42...69 Hz between phase and neutral; 100…690 V AC 42...69 Hz between phases |
| Frequency Measurement Range |
42…69 Hz |
| Number of Inputs |
3 digital 30 V AC; 3 digital 60 V DC |
| Measurement Accuracy |
Current +/- 0.1 %; Voltage +/- 0.1 %; Active energy +/- 0.2 % |
| Accuracy Class |
Class 0.2S active energy conforming to IEC 62053-22
Class 0.2 active energy conforming to ANSI C12.20
Class 0.2 active power conforming to IEC 61557-12
Class 0.5S reactive energy conforming to IEC 62053-24
Class 0.5 power factor conforming to IEC 61557-12
Class 0.2 voltage conforming to IEC 61557-12
Class 0.2 current conforming to IEC 61557-12 |
| Number of Outputs |
1 pulse |
| Information Displayed |
Voltage; Current; Frequency; Power; Energy consumption; Harmonic distortion |
| Communication Port Protocol |
Modbus RTU at 115 kbauds - 2-wire; ION at 115 kbauds - 2-wire; DNP3; IEC 61850; Modbus TCP/IP; Ethernet Modbus TCP/IP daisy chain at 10/100 Mbit/s; RSTP 801.1d 2004 |
| Communication Port Support |
ETHERNET; Screw terminal block: RS485 |
| Communication Network Type |
IPv6 (internet protocol) |
| Data Recording |
Min/max of instantaneous values; Waveform logs; Sequence of event recording; Time stamping; Alarm logs; Trending/forecasting; Sag and swell logs; Harmonics logs; GPS synchronisation |
| Data Logs |
Event logs; 50 data recorders |
| Memory Capacity |
512 MB |
| Web Services |
Customizable home page
File upload/download via FTP
File upload/download via SFTP
Web server
Alarm notification by e-mail
Viewing of captured waveform (FTP)
Viewing of captured waveform (web); HTTPS server |
| Communication Service |
SMTP e-mail notification; RSTP support; NTP time synchronization; DHCP; PTP time synchronization |
| Cybersecurity |
Enable/disable communication ports; Password protection; Syslog protocol support; Robust security logs; Port hardening |
| Mounting Mode |
Flush-mounted |
| Mounting Support |
Framework |
| Installation Category |
III |
| Standards |
IEC 61557-12; IEC 62052-11; IEC 62053-24; IEC 62053-22; IEEE 1588; IEC 62586-2; IEC 61326-1 |
| Product Certifications |
CE; CULus; N998 |
| Width |
96 mm |
| Depth |
77.5 mm |
| Height |
96 mm |
| Net Weight |
581 g |
| IP Degree of Protection |
IP54 front: conforming to IEC 60529; IP30 body: conforming to IEC 60529 |
| Relative Humidity |
5…95 % |
| Ambient Air Temperature for Operation |
-25…70 °C |
| Ambient Air Temperature for Storage |
-40…85 °C |
| Operating Altitude |
3000 m |
