| Main |
|
| Range of Product |

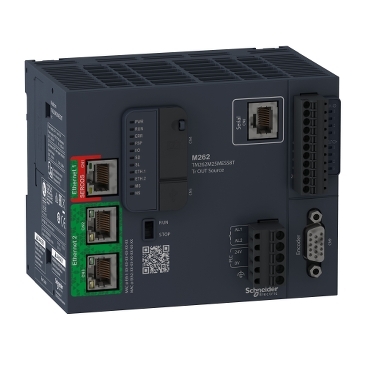

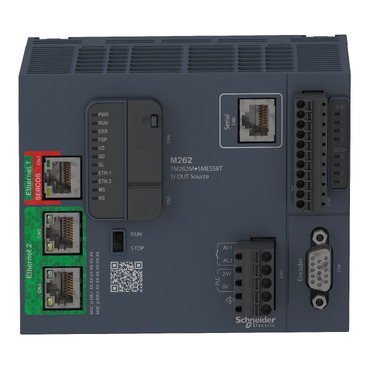

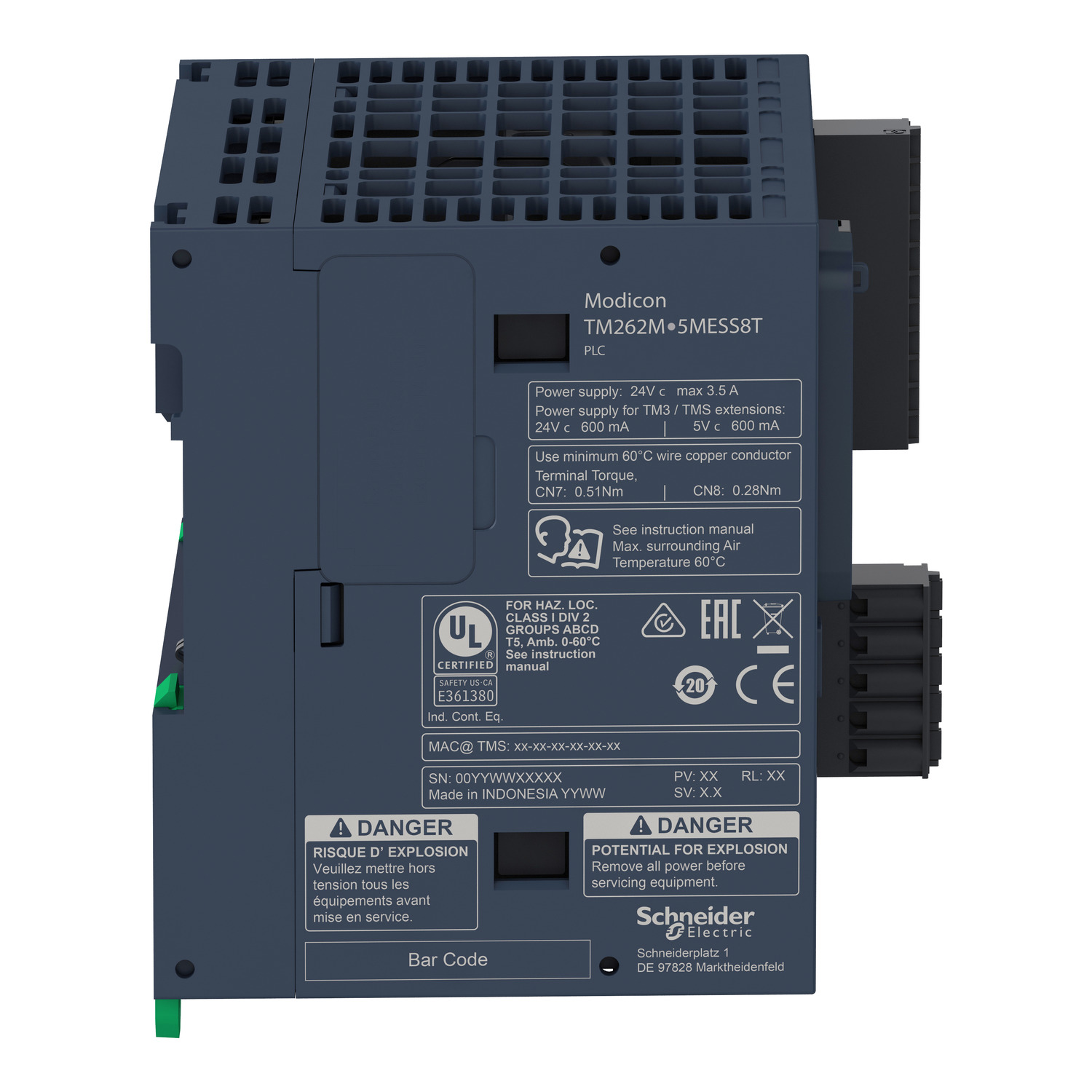

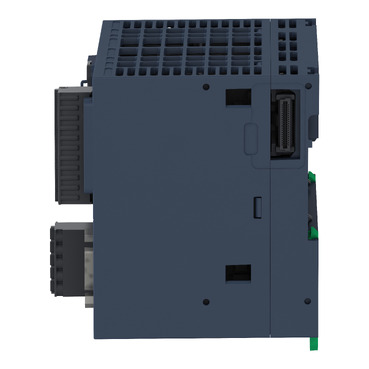

Logic/motion controller - Modicon M262 |
| Product or Component Type |
Motion controller |
| [Us] rated supply voltage |
24 V DC - 15...20 % |
| Discrete I/O number |
8 |
| Upstream connectivity |
IIoT-ready machine to cloud / Connected machine to plant |
| Complementary |
|
| Supply voltage limits |
20.4…28.8 V DC |
| PLC Power Consumption |
82 W |
| Inrush current |
40 A |
| Overvoltage protection |
With |
| Discrete input number |
4, discrete input fast input IEC 61131-2 Type 1 |
| Discrete input voltage |
24 V |
| Discrete input voltage type |
DC |
| Discrete input logic |
Sink |
| Voltage state 1 guaranteed |
>= 15 V DC |
| Voltage state 0 guaranteed |
<= 5 V DC |
| Discrete input current |
7.5 mA fast input |
| Input impedance |
2.81 kOhm input |
| Response time |
<= 1 µs turn-on, I0...I3 fast input
<= 1 µs turn-off, I0...I3 fast input
<= 1 µs turn-on, Q0...Q3 fast output
<= 1 µs turn-off, Q0...Q3 fast output
|
| Configurable filtering time |
0.001 ms / 0.002 ms / 0.005 ms / 0.01 ms / 0.05 ms / 0.1 ms / 0.5 ms / 1 ms / 4 ms / 12 ms |
| Discrete output number |
4 transistor fast output |
| Discrete output voltage |
24 V DC |
| Discrete output current |
0.5 A fast output Q0...Q3 |
| Discrete output type |
Transistor |
| Discrete output logic |
Source |
| Output voltage limits |
30 V DC |
| Maximum current per output common |
0.5 A Q0...Q3 fast output |
| Maximum output frequency |
300 kHz |
| Accuracy |
+/- 0.1 % 0.02…0.1 kHz fast output / +/- 1 % 0.1…1 kHz fast output |
| Maximum leakage current |
10 µA output |
| Maximum tungsten load |
<1.5 W |
| Protection type |
Short-circuit and overload protection with automatic reset |
| Reverse polarity protection |
Short-circuit protection |
| Reset time |
200 ms automatic reset fast output |
| Maximum number of I/O expansion module |
7 TM3 IO module (remote/local) / 64 TM3, TM5 or TM7 IO island (distributed) |
| Execution time for 1 KInstruction |
0.003 ms |
| Memory capacity |
32 MB program RAM / 32 MB OS/website RAM / 192 MB system memory RAM |
| Data backed up |
1 GB built-in flash memory backup of user programs |
| Data storage equipment |
<= 32 GB SDHC card optional |
| Backup time |
1000 h 77 °F (25 °C) |
| Application structure |
8 event tasks / 4 cyclic master tasks / 3 cyclic master tasks + 1 freewheeling task / 8 external event tasks |
| Realtime clock |
With |
| Clock drift |
<= 10 s/month 77 °F (25 °C) |
| Cycle time |
0.5 ms |
| Positioning functions |
Libraries axes coordinated / Libraries axes synchronous |
| Sercos 3 motion bus |
Integrated |
| Integrated connection type |
Ethernet/Sercos 1 RJ45 10/100BASE-T
Ethernet 2 RJ45 100/1000BASE-T
Serial link RJ45 RS232/RS485
1 encoder SUB-D 15 RS422/SSI
Smart Communication Bus / TM3 IO bus / USB mini B
|
| Transmission rate |
115 kbit/s RS485 (15 m)
115 kbit/s RS232 (3 m)
480 Mbit/s USB (3 m) / 10/100 Mbit/s Ethernet1 / 10/100/1000 Mbit/s Ethernet2
|
| Communication port protocol |
EtherNet/IP adapter/scanner / Modbus TCP client/server /
Modbus TCP IO scanner / Modbus TCP NVL / Ethernet RSTP /
Modbus SL client/server / Modbus SL IO scanner /
Modbus SL modem management / Machine Expert /
ASCII manager / ASCII modem management / Sercos III master
|
| Maximum Number of Connected Devices |
EtherNet/IP: 64 / Modbus TCP: 64 / Combined: 128 |
| Communication Service |
MQTTs / OPC UA server & client (Encrypt) / HTTPs API / Web server /
Web visu / TLS 1.2 / TLS 1.3 / SNTP / NTP client/server / FTP/FTPs /
SQL client / DHCP client/server / DNS client / POP3s / SMTP / SNMP
|
| Local signalling |
LEDs for PWR, RUN, ERROR, STOP, I/O, SD, SL, ETH1, ETH2, EIP MS, EIP NS, Sercos |
| Electrical connection |
Removable spring terminal blocks |
| Product compatibility |
External encoder 5/24 V DC (no encoder power supply) |
| Maximum cable distance between devices |
Shielded <3 m fast I/O / Unshielded <50 m I/O / RS485 <30 m / RS232 <15 m |
| Insulation |
550 V AC between input/output/supply and logic |
| Encoder type |
Incremental encoder |
| Surge withstand |
1 kV common mode (various lines), 0.5 kV differential relay output |
| Mounting support |

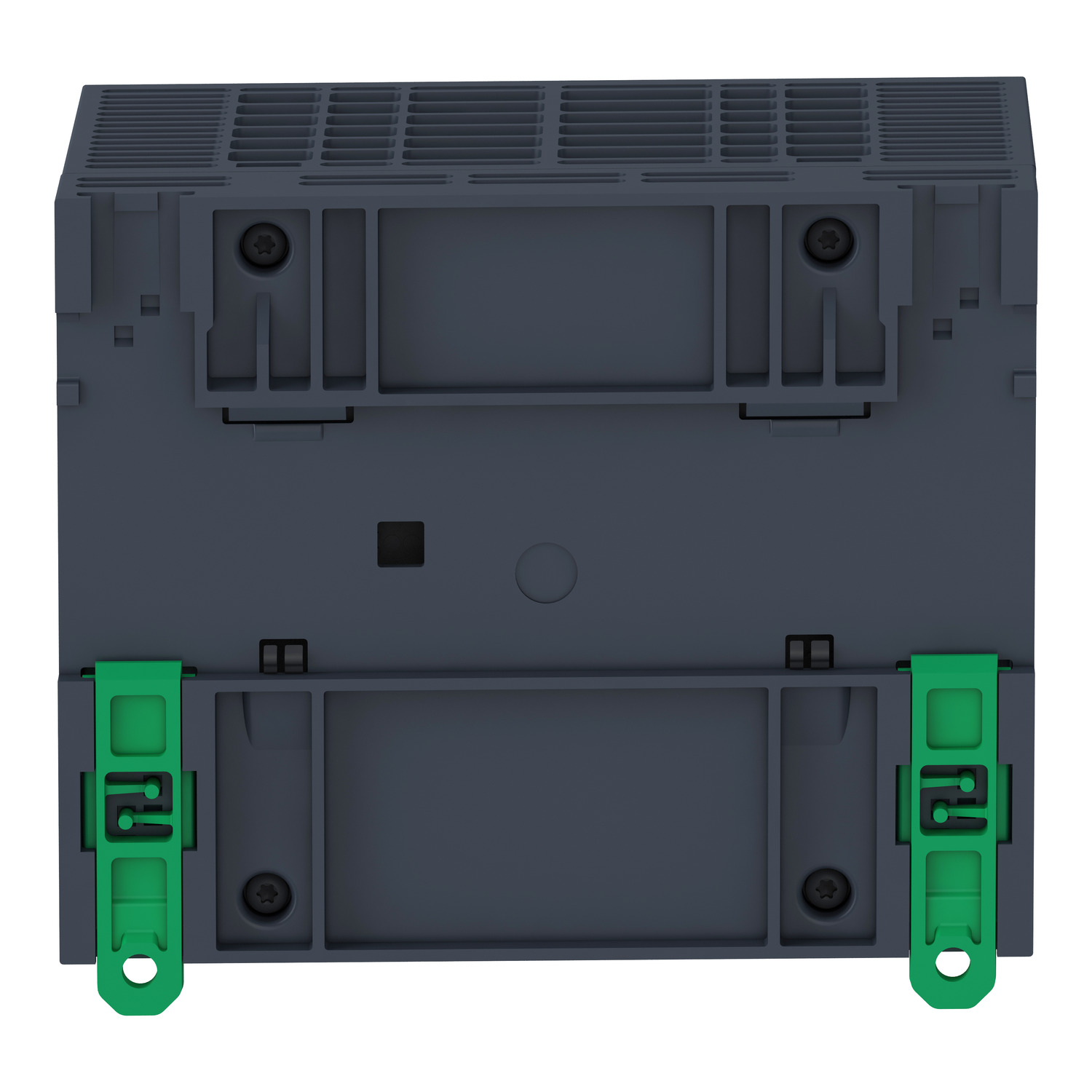

DIN rail TH35-15 / TH35-7.5 / panel |
| Height |
100 mm |
| Depth |
90 mm |
| Width |
125 mm |
| Product Weight |
0.67 kg |
| Environment |
|
| Standards |
UL 61010-1 / UL 61010-2-201 / CSA / IEC 61131-2 |
| Product Certifications |
CE / cULus / HazLoc Class I Div 2 / RCM / EAC / Achilles / KC |
| Resistance to electrostatic discharge |
4 kV contact / 8 kV air |
| Resistance to electromagnetic fields |
9.1 V/m (80 MHz–1 GHz) / 2.7 V/m (1.4–2 GHz) / 0.9 V/m (2–3 GHz) |
| Resistance to fast transients |
2 kV power / 1 kV Ethernet, serial, I/O |
| Resistance to conducted disturbances |
10 V (0.15–80 MHz), 3 V (0.1–80 MHz) |
| Electromagnetic emission |
IEC 55011 conducted & radiated limits |
| Immunity to microbreaks |
0.01 ms |
| Ambient air temperature for operation |
-20…60 °C (horizontal) / -20…50 °C (vertical) / -20…45 °C (flat) |
| Ambient air temperature for storage |
-40…85 °C |
| Relative humidity |
10…95 % non-condensing |
| IP degree of protection |
IP20 |
| Pollution degree |
2 |
| Operating altitude |
0…2000 m |
| Storage altitude |
0…3000 m |
| Vibration resistance |
3.5 mm (2–8.4 Hz), 1 gn (8.4–200 Hz) |
| Shock resistance |
15 gn, 11 ms |
