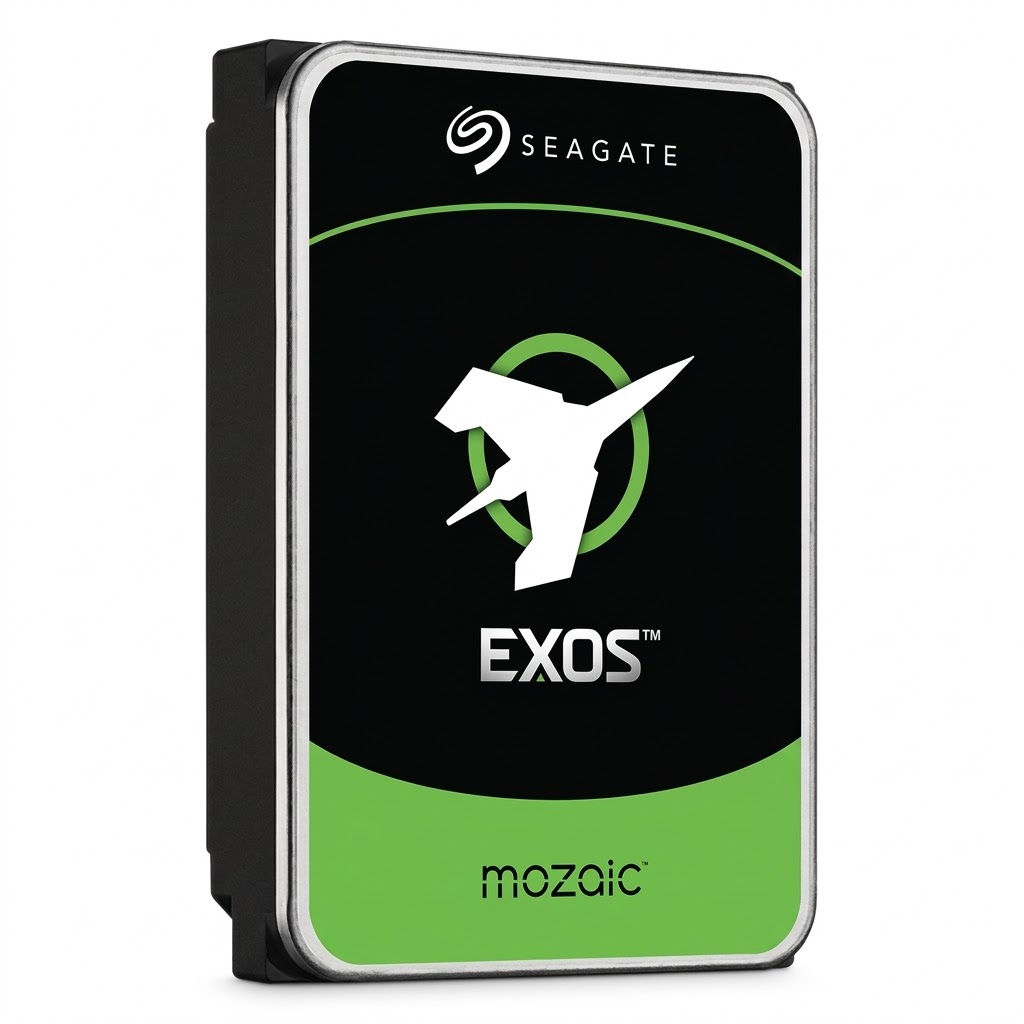

Seagate EXOS ST32000NM004K, 32TB 3.5" SATA 6Gb/s Hard Drive
The Seagate Exos ST32000NM004K is a 32TB enterprise internal hard drive designed for high-capacity data center, server, and storage environments. It features a 3.5-inch form factor, 7200 RPM spindle speed, and SATA 6Gb/s interface for reliable high-capacity storage.
The drive uses Conventional Magnetic Recording (CMR) technology and a helium sealed-drive design. With a 512MB multi-segmented cache and a maximum sustained transfer rate of 285 MB/s, it provides consistent performance for demanding enterprise storage workloads.
The ST32000NM004K supports 24x7 operation and is rated for a 2,500,000-hour MTBF. It also provides a non-recoverable read error rate of 1 sector per 10^15 bits read and a 0.35% annualized failure rate at full 24x7 operation.
Enterprise features include PowerChoice Idle Power Technology, PowerBalance Power/Performance Technology, Super Parity, Hot-Plug Support, and RSA 3072 Firmware Verification. The drive also supports Seagate Instant Secure Erase (ISE) and 512e sector formatting.
With 32TB capacity, 7200 RPM performance, SATA 6Gb/s connectivity, and enterprise-grade reliability, the Seagate Exos ST32000NM004K is suitable for data centers, servers, large-scale storage systems, backups, AI workloads, and other high-capacity applications.
Key Features
-
32TB enterprise storage capacity
-
7200 RPM spindle speed
-
SATA 6Gb/s interface
-
512MB multi-segmented cache
-
CMR recording technology
-
285 MB/s maximum sustained transfer rate
-
2,500,000-hour MTBF
-
24x7 operation with 0.35% AFR
-
Helium sealed-drive design
Specifications
| General |
|
| Product Name |
Exos |
| Capacity |
32 TB |
| Standard Model - Seagate Instant Secure Erase (ISE) - 512e |
ST32000NM004K |
| Form Factor |
3.5" |
| Features |
|
| CMR |
Yes |
| Helium Sealed-Drive Design |
Yes |
| Super Parity |
Yes |
| Low Halogen |
Yes |
| PowerChoice™ Idle Power Technology |
Yes |
| PowerBalance™ Power/Performance Technology |
Yes |
| Hot-Plug Support |
Yes |
| Cache, Multi-segmented (MB) |
512 |
| Organic Solderability Preservative |
Yes |
| RSA 3072 Firmware Verification (SD&D) |
Yes |
| Reliability and Data Integrity |
|
| Mean Time Between Failures (MTBF, hours) |
2500000 |
| Reliability Rating at Full 24×7 Operation (AFR) |
0.35% |
| Non-recoverable Read Errors per Bits Read |
1 sector per 10E15 |
| Power-On Hours per Year (24×7) |
8,760 |
| 512e Sector Size (Bytes per Sector) |
512e |
| Limited Warranty (years) |
5 |
| Performance |
|
| Spindle Speed (RPM) |
7,200 RPM |
| Interface Access Speed (Gb/s) |
6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s,MiB/s) |
285 MB/s / 272 MiB/s |
| Random Read/Write 4K QD16 WCD (IOPS) |
170 / 350 |
| Average Latency (ms) |
4.16 ms |
| Interface Ports |
Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec) |
12.5 |
| Power Consumption |
|
| Idle A (W) Average |
6.9W |
| Max Operating, Random Read 4K/16Q (W) |
9.5W |
| Power Supply Requirements |
+12 V and +5 V |
| Environmental |
|
| Temperature, Operating (°C) - drive reported |
10°C - 60°C |
| Vibration, Non-operating: 2 to 500 Hz (Grms) |
2.27 |
| Shock, Operating 2 ms (Gs) |
30 Gs |
| Shock, Nonoperating 2ms (Gs) |
200 |
| Physical |
|
| Height (mm/in, max) |
26.1 mm / 1.028 in |
| Width (mm/in, max) |
101.85 mm / 4.010 in |
| Depth (mm/in, max) |
147.0 mm / 5.787 in |
| Weight (gm/lb) |
695g / 1.532lb |
| Carton Unit Quantity |
20 |
| Cartons per Pallet/Cartons per Layer |
40 / 8 |
