Seatronx PHPC-15T, Intel Core i5-5200U IP65 15" Industrial Panel PC

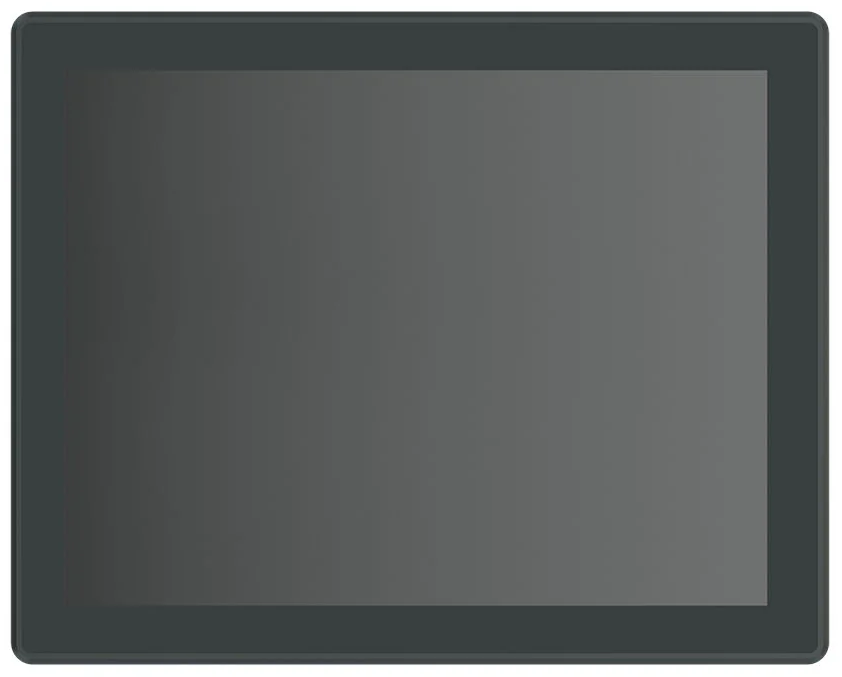

The Seatronx PHPC-15T is a 15-inch industrial panel PC with a 1024 x 768 display resolution and 400 cd/m2 brightness. Its 306(H) x 230(V) mm active display area and 16.2 M colors provide a clear interface for industrial and marine panel applications.
The display uses a Projective Capacitive Multi-touch screen with a 0.2947 (H) x 0.2947 (V) mm pixel pitch. It has a 700:1(typ.) contrast ratio and a viewable angle of 80°/80°/60°/80° (typ.) (Up/Down/Left/Right).
The PHPC-15T is powered by an Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) processor. It supports 1 x DDR3L-1066 SODIMM with Default 4GB and Max 16GB, Dual Ethernet Gb LAN, and 64GB mSATA SSD storage with support for up to 256GB.

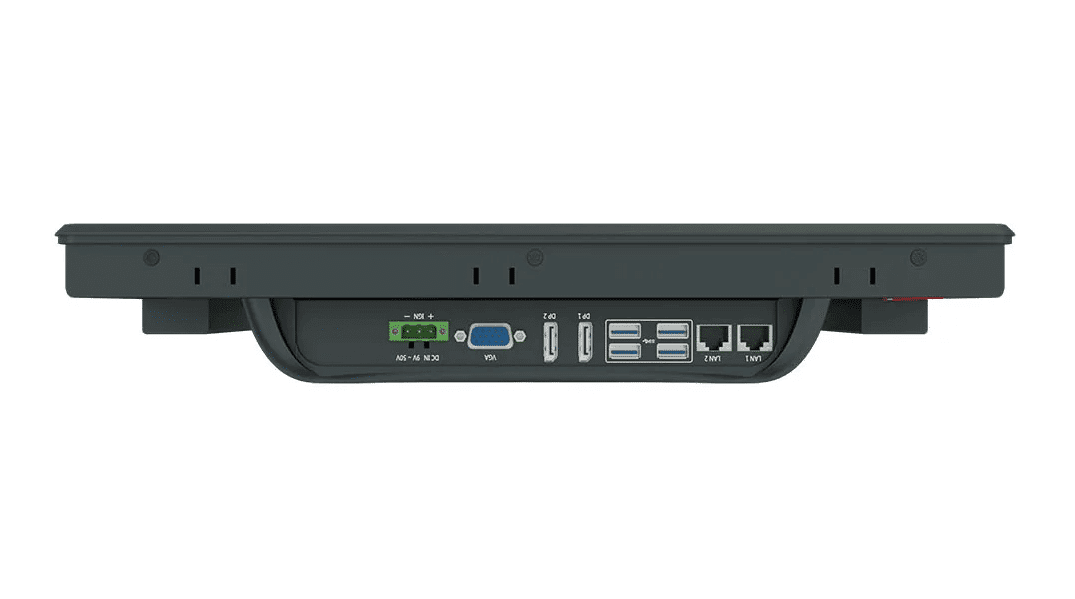

The panel PC provides 2 x RJ45 Ethernet LAN, 1 x R S 232/422/485 COM port, 2 x USB3.0, and 1 x HDMI. Optional interfaces include 4 x N M E A 0183 Port and 8 Channel Isolated Digital Input/Output, while the system also includes 2 x 2W Speaker and a buzzer.
The Seatronx PHPC-15T features an Anodized Aluminum Bezel, IP66 (Front Side) protection, Panel Mount and VESA Mount options, and 24V DC-in with Isolation (9~36V acceptable). It operates from -15 to 55 deg.C with 5% to 95%(non-condensing) humidity and supports DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC certification.
Key features
-
15-inch 1024 x 768 industrial panel PC
-
Intel Core i5-5200U Broadwell 2.2GHz processor
-
Projective Capacitive Multi-touch display
-
Default 4GB DDR3L-1066 SODIMM, Max 16GB
-
64GB mSATA SSD with support up to 256GB
-
Dual Ethernet Gb LAN with 2 x RJ45
-
IP66 (Front Side) protection with Panel Mount and VESA Mount
-
DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC
SPECIFICATION
| Display Specifications |
|
| Resolution |
1024 x 768 |
| Pixel Pitch |
0.2947 (H) x 0.2947 (V) mm |
| Contrast Ratio |
700:1(typ.) |
| Brightness |
400 cd/m2 (typ.) |
| Viewable Angle |
80°/80°/60°/80° (typ.) (Up/Down/Left/Right) |
| Active Display Area |
306(H) x 230(V) mm |
| Max Colors |
16.2 M co lors, 8 bits/color |
| Touch Screen |
Projective Capacitive Multi-touch |
| System Specifications |
|
| Processor |
Intel Core i5-5200U Broadwell 2.2GHz (turbo to 2.7GHz) |
| System Memory |
1 x DDR3L-1066 SODIMM (Default 4GB,Max 16GB) |
| Ethernet |
Dual Ethernet Gb LAN |
| Storage |
64GB mSATA SSD (Up to 256GB) |
| Speaker |
2 x 2W Speaker |
| Buzzer |
75 dB~80 dB, 2300 Hz, 1m |
| Power Specifications |
|
| Power Input * |
24V DC-in with Isolation (9~36V acceptable) |
| Power Consumption |
80W (Max) |
| Certification |
|
| Certification |
DNVGL-CG-0339, IEC60945 4th, IACS E10, CE, FCC |
| * |
Only 24V DC have approval by DNVGL certificate |
| Mechanical |
|
| Mounting |
Panel Mount, VESA Mount |
| Construction |
Anodized Aluminum Bezel |
| IP Rating |
IP66 (Front Side) |
| Dimension |
363mm x 312mm x 66.5mm |
| Cutout Dimension |
338mm x 288mm |
| Operating Temperature |
-15 to 55 deg.C |
| Operating Humidity |
5% to 95%(non-condensing) |
| Anti-Vibration |
0.7g@DNVGL CG-0339 (Class A) |
| Anti-Shock |
15G,11ms duration |
| Input / Output Connectors |
|
| Ethernet LAN |
2 x RJ45 |
| COM (D-SUB) |
1 x R S 232/422/485 |
| USB |
2 x USB3.0 |
| HDMI |
1 x HDMI |
| NMEA Interface |
4 x N M E A 0183 Port (Optional) |
| Digital IN/OUT |
8 Channel Isolated Digital Input/Output (Optional) |
| DC power |
1 x 3-Pin Terminal Block (Phoenix type) |
