Sharp MultiSync® EA272Q – maximum screen estate, minimum cable clutter
For detail-rich applications, the high pixel density QuadHD resolution coupled with 27-inch active screen area results in an expansive digital canvas for the most productive personal workspaces. Extend your visual command even further with a near uninterrupted multi-screen configuration with ultra-narrow bezel and DisplayPort OUT daisy-chain.
Featuring powerful 90W USB Type-C connectivity and embedded LAN, the EA272Q becomes a fully functioning Docking Hub solution. With just a single cable to connect notebook/PC to the display whilst powering your device, workspace remains clear of cable clutter and e-waste is minimised. The display’s sustainable functionality continues, achieving energy savings of up to 30% by enabling sensor technology to automatically reduce brightness or power down as appropriate to usage scenarios.

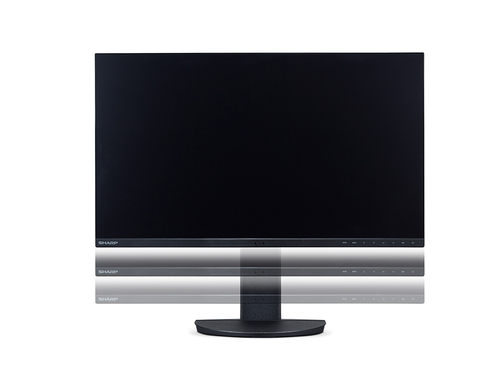

Prioritising user wellbeing, the 150mm height adjustable stand and ergonomic features are easily adjusted to suit individual user requirements whilst low-blue light and flicker-free technologies ensure eye-pleasing comfort and protection.
Specifications
| Display |
| NTSC coverage (typical) |
77% |
| sRGB coverage (typical) |
100% |
| Colour gamut standard |
NTSC, sRGB |
| Display diagonal (metric) |
68 cm |
| Vertical scan range |
56 - 75 Hz |
| Horizontal scan range |
31.5 - 94 kHz |
| Pixel pitch |
0.233 x 0.233 mm |
| Display number of colours |
16.78 million colours |
| Viewing angle, vertical |
178° |
| Viewing angle, horizontal |
178° |
| Maximum refresh rate |
60 Hz |
| Contrast ratio (dynamic) |
7000:1 |
| Contrast ratio (typical) |
1000:1 |
| Screen shape |
Flat |
| Response time |
6 ms |
| Display brightness (typical) |
350 cd/m² |
| Backlight type |
W-LED |
| LED backlight |
Yes |
| Panel type |
TFT/IPS |
| HD type |
4K Ultra HD |
| Touchscreen |
No |
| Display technology |
LCD |
| Native aspect ratio |
16:9 |
| Display resolution |
2560 x 1440 pixels |
| Display diagonal |
68.6 cm (27") |
| Design |
| Product colour |
Black |
| Market positioning |
Business |
| Ports & interfaces |
| Headphone out |
Yes |
| DisplayPort out quantity |
1 |
| DisplayPorts quantity |
2 |
| HDMI ports quantity |
1 |
| HDMI |
Yes |
| USB Power Delivery up to |
90 W |
| USB Power Delivery (USB PD) |
Yes |
| Network |
| Ethernet LAN |
Yes |
| Ergonomics |
| Tilt angle range |
-5 - 35° |
| Tilt adjustment |
Yes |
| Swivel angle range |
-170 - 170° |
| Swivelling |
Yes |
| Pivot angle |
-90 - 90° |
| Pivot |
Yes |
| Adjustable height (max) |
15 cm |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Cable management |
Yes |
| Panel mounting interface |
100 x 100 mm |
| VESA mounting |
Yes |
| Power |
| Energy efficiency scale |
A to G |
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
27 W |
| Energy consumption (SDR) per 1000 hours |
13 kWh |
| Energy efficiency class (HDR) |
Not available |
| Energy efficiency class (SDR) |
C |
| Operational conditions |
| Operating temperature (T-T) |
5 - 35 °C |
| Storage relative humidity (H-H) |
10 - 85% |
| Operating relative humidity (H-H) |
-10 - 60% |
| Storage temperature (T-T) |
20 - 80 °C |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
| Bezel width (top) |
1 mm |
| Bezel width (side) |
1 mm |
| Weight (without stand) |
5.8 kg |
| Weight (with stand) |
9.2 kg |
| Height (with stand) |
378 mm |
| Depth (with stand) |
250 mm |
| Width (with stand) |
611.8 mm |
