Many small factories and labs still rely on people to do the same pick-and-place or inspection steps over and over. Those tasks are tiring, can cause mistakes, and they keep workers away from higher-value work. When a mistake happens, the whole line can stop, costing time and money. The Siasun SCR3 robot, Collaborative Robot gives you a safe, easy-to-program helper that works side by side with people and removes the repetitive load.

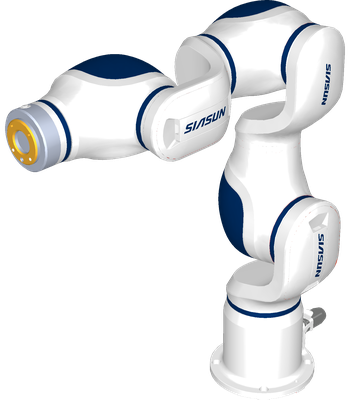

Siasun SCR3 robot, Collaborative Robot with Siasun
Meet the SCR3, a lightweight 7-axis collaborative robot from Siasun that can reach 600 mm and lift up to 3 kg. It is built for quick deployment on any workbench, and it can be taught by hand-guiding, so you do not need a programming expert. If you are struggling with slow assembly or inconsistent dispensing, this robot offers a clear, affordable solution that keeps your floor safe and your output steady.
Usages
The SCR3 fits in tight spaces, making it ideal for desktop assembly of electronic boards. It can dispense glue or sealant with precise timing, handle small parts for packaging, load and unload machines, and perform visual inspection when paired with an optional camera. Because it meets ISO safety standards, it can share the same area with operators without cages.
Benefits
- Reduces worker fatigue by taking over repetitive motions.
- Improves product quality with 0.02 mm repeatability.
- Speeds up production because the robot can move up to 2.5 m/s.
- Low noise level (< 75 dB) keeps the workplace comfortable.
- Easy to re-program for a new task in minutes, saving setup time.
Key Features
- 7-axis design gives full flexibility for complex paths.
- Payload of 3 kg handles most small-to-medium parts.
- Reach of 600 mm works on compact workstations.
- IP54 protection lets it operate in dusty or slightly wet environments.
- Built-in safety standards ISO 10218-1 and ISO 15066.
- Multiple communication options: TCP/IP, Modbus, Profinet, Ethernet/IP.
- Hand-guiding teaching mode for fast programming.
- Optional visual guidance system for inspection tasks.
- Compact base of 180 mm diameter fits any mounting orientation.
- Power consumption between 100-250 W keeps energy costs low.
Specifications
| Product Name |
Siasun SCR3 Collaborative Robot |
| Manufacturer |
Siasun |
| Robot Type |
Collaborative Industrial Robot |
| Degrees of Freedom |
7-axis |
| Payload |
3 kg |
| Reach |
600 mm |
| Repeatability |
±0.02 mm |
| Robot Weight |
18–22 kg (depending on source/configuration) |
| Max TCP Speed |
0.8–2.5 m/s |
| Max Straight-line Speed |
1.0 m/s |
| IP Rating |
IP54 |
| Operating Temperature |
0°C to 40–45°C |
| Control Cabinet I/O |
6 Digital I/O, 24V, 1A |
| Tool Flange I/O |
2 Digital I/O, 24V, 1A |
| Power Supply |
230 VAC, 50–60 Hz |
| Power Consumption |
100–250 W (typical) |
| Base Diameter |
180 mm |
| Mounting |
Any direction |
| Communication Protocols |
TCP/IP, Modbus, Profinet, Ethernet/IP (expandable) |
| Safety Standards |
ISO 10218-1, ISO 15066 |
| Noise Level |
≤75 dB |
| Applications |
Assembly, Dispensing, Material Handling, Machine Loading, Inspection |
| Programming Method |
Traction teaching / hand-guiding |
| Visual System |
Optional visual guidance |
