Looking for a reliable link between your SINAMICS S210 drive and motor? The Siemens 6FX5002-8QN04-1AF0 Cable Assembly is a ready-made, 5 m cable that fits the One Cable Connection (OCC) system. It solves the common hassle of mismatched connectors, long wiring time, and unexpected downtime caused by poor cable quality.

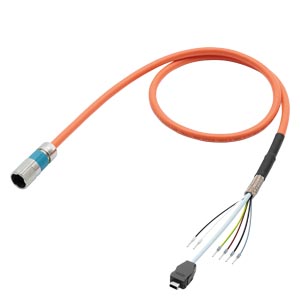

Siemens 6FX5002-8QN04-1AF0 Cable Assembly 6FX5 Series Cable
When a motor drive is not connected properly, the whole machine can stop, lose speed, or even overheat. This problem matters because every minute of lost production costs money and can damage equipment. The cable assembly provides a pre-tested, factory-finished link with the correct SPEED-CONNECT and M12 connectors, so you can install it quickly and trust that it meets Siemens standards for voltage, bending radius, and tensile load.
Usages of Siemens
The assembly is ideal for industrial automation lines that use the SINAMICS S210 drive. It works in fixed installations where the cable runs through a frame, as well as in flexible setups that require movement, such as robotic arms or conveyor belts. It also fits applications that need a braking lead, making it suitable for machines that require precise stop control.
Benefits
- Fast installation saves labor time and reduces errors.
- Factory-tested quality prevents unexpected failures.
- Compatible connectors eliminate the need for adapters.
- Designed for high-speed motion up to 30 m/min.
- Built-in braking lead supports safe stopping.
Key Features
- Length: 5 m, suitable for most machine layouts.
- Core layout: 4 0.38 mm + 2 0.38 mm + 4 0.2 mm.
- Rated voltage: 300 V for safe power transmission.
- SPEED-CONNECT motor side connector, M12 size.
- Pre-assembled OCC signal connector on converter side.
- Maximum cable diameter 9.7 mm, fits tight spaces.
- Test voltage: 1.5 kV (power) and 0.5 kV (signal).
- Minimum bending radius: 23.5 mm fixed, 94 mm flexible.
- Maximum tensile load: 50 N/mm fixed, 20 N/mm moving.
- Supports acceleration up to 2 m/s and 100 000 bends.
Specifications
| Article Number (MLFB) |
6FX5002-8QN04-1AF0 |
| Product Family |
One Cable Connection (OCC) technology for SINAMICS S210 |
| Product Description |
Single cable prefabricated 4G0.38+2x0.38+4x0.2 C SPEED-CONNECT
M12 connector Cores with end sleeve Data cable with IX connector
UL/CSA DESINA MOTION-CONNECT 500 Dmax.=9.7 mm,
length(m)= 0 + 0 + 5 + 0
|
| Product Lifecycle (PLM) |
PM300: Active Product |
| Cable Length |
5 m |
| Maximum Cable Diameter |
9.7 mm |
| Connector Type (Motor Side) |
SPEED-CONNECT |
| Connector Size |
M12 |
| Connection (Converter Side) |
Wire ends with ferrules (pre-assembled OCC signal connector) |
| Core Configuration |
4×0.38 + 2×0.38 + 4×0.2 mm² |
| Rated Voltage |
300 V |
| Test Voltage (Power Conductors) |
1.5 kV |
| Test Voltage (Signal Conductors) |
0.5 kV |
| With Braking Lead |
Yes |
| Minimum Bending Radius (Fixed Installation) |
23.5 mm |
| Minimum Bending Radius (Flexible Installation) |
94 mm |
| Max. Tensile Load (Fixed) |
50 N/mm² |
| Max. Tensile Load (Moving) |
20 N/mm² |
| Max. Acceleration |
2 m/s² |
| Max. Traversing Speed |
30 m/min |
| Max. Number of Bends |
100,000 |
| Torsional Stress |
±30°/m |
| Net Weight |
0.800 kg |
| Country of Origin |
Slovakia |
