Imagine a busy office where the network keeps dropping or slowing down just when you need it most. The Siemens SCALANCE XC206-2SFP G 8 ports Network Ethernet switch is built to stop that frustration. It connects computers, printers, cameras and other devices with fast, reliable Ethernet links. If you have been losing time because of unstable connections, this switch gives you the stability you need to keep work moving.

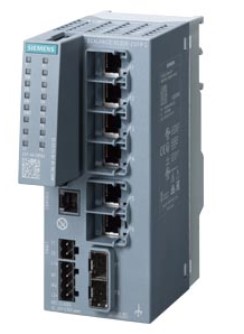

Siemens SCALANCE XC206-2SFP G 8 ports Network Ethernet switch
Small factories, retail stores and office rooms often face the problem of limited ports and slow data flow. When a single device fails, the whole network can be affected, causing downtime and lost sales. This switch solves the issue by offering eight Ethernet ports plus two SFP slots for fiber links, so you can expand without replacing hardware. It delivers gigabit speeds, simple management and a compact design that fits into tight spaces.
Key Features
- 8 RJ45 ports with securing collars.
- 2 SFP slots for 10/100/1000 Mbit/s fiber.
- Supports 10 Mbit/s, 100 Mbit/s and 1 Gbit/s rates.
- IP20 protection for indoor use.
- Power supply 24 V DC with redundant input.
- Fuse protection 2.5 A at 125 V.
- Compact dimensions 60 147 125 mm.
- Weight only 0.52 kg for easy mounting.
- Polycarbonate and aluminum enclosure for durability.
- Operator console port (RJ11) for quick diagnostics.
- Signal contact terminal block for simple wiring.
Specifications
| Product Type Designation |
|
| Product brand name |
SCALANCE |
| Product type designation |
XC206-2SFP G |
| Transfer Rate |
|
| Transfer rate |
10, 100, 1000 Mbit/s |
| Interfaces / For Communication / Integrated |
|
| Number of electrical connections |
For network components or terminal equipment: 6; RJ45 |
| Number of 10/100/1000 Mbit/s RJ45 ports |
With securing collar: 6 |
| Interfaces / For Communication / Plug-in |
|
| Number of electrical connections |
For SFP: 2 |
| Interfaces / Other |
|
| Number of electrical connections |
For operator console: 1 |
| Number of electrical connections |
For signaling contact: 1 |
| Number of electrical connections |
For power supply: 1 |
| Type of electrical connection |
For operator console: RJ11 |
| Type of electrical connection |
For signaling contact: 2-pole terminal block |
| Type of electrical connection |
For power supply: 4-pole terminal block |
| Design of the Removable Storage |
|
| C-PLUG |
Yes |
| Operating Voltage / Of the Signaling Contacts |
|
| At DC / rated value |
24 V |
| Operational Current / Of the Signaling Contacts |
|
| At DC / maximum |
0.1 A |
| Supply Voltage, Current Consumption, Power Loss |
|
| Product component / connection for redundant voltage supply |
Yes |
| Type of voltage / 1 / of the supply voltage |
DC |
| Supply voltage / 1 / rated value |
24 V |
| Power loss [W] / 1 / rated value |
6 W |
| Consumed current / 1 / at rated supply voltage / maximum |
0.25 A |
| Supply voltage / 1 / voltage range |
9.6 ... 31.2 |
| Consumed current / 1 / maximum |
0.5 A |
| Type of electrical connection / 1 / for power supply |
4-pole terminal block |
| Product component / 1 / fusing at power supply input |
Yes |
| 6GK52062GS002AC2 |
Page 1/6 8/12/2026Subject to change without notice© Copyright Siemens |
| Fuse protection type / 1 / at input for supply voltage |
2,5 A / 125 V |
| Ambient Conditions |
|
| Ambient Temperature |
|
| During operation |
-40 ... +70 °C |
| During storage |
-40 ... +85 °C |
| During transport |
-40 ... +85 °C |
| Relative Humidity |
|
| At 25 °C / without condensation / during operation / maximum |
95% |
| Protection Class IP |
|
| Protection class IP |
IP20 |
| Design, Dimensions and Weights |
|
| Design |
Compact |
| Width |
60 mm |
| Height |
147 mm |
| Depth |
125 mm |
| Net weight |
0.52 kg |
| Material / of the enclosure |
Polycarbonate (PC-GF10) / pressure die cast aluminum |
