| Product Type Designation |
|
| Product brand name |

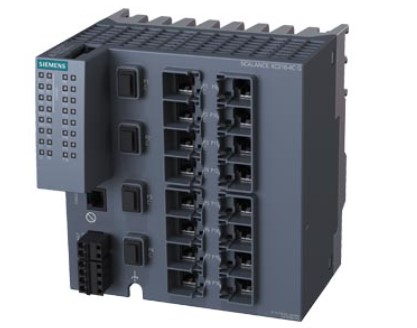

SCALANCE |
| Product type designation |
XC216-4C G |
| Transfer Rate |
|
| Transfer rate |
10, 100, 1000 Mbit/s |
| Interfaces / For Communication / Integrated |
|
| Number of electrical connections |
For network components or terminal equipment: 16; RJ45 |
| Number of 10/100/1000 Mbit/s RJ45 ports |
16 |
| Number of combo ports / with RJ45 interface for optical plug-in transceiver |
4; 1000 MBit/s SFPs |
| Interfaces / For Communication / Plug-in |
|
| Number of electrical connections |
For SFP: 4 |
| Interfaces / Other |
|
| Number of electrical connections |
For operator console: 1 |
| Number of electrical connections |
For signaling contact: 1 |
| Number of electrical connections |
For power supply: 1 |
| Type of electrical connection |
For operator console: RJ11 |
| Type of electrical connection |
For signaling contact: 2-pole terminal block |
| Type of electrical connection |
For power supply: 3-pole terminal block, permanently installed |
| Design of the Removable Storage |
|
| C-PLUG |
Yes |
| Operating Voltage / Of the Signaling Contacts |
|
| At DC / rated value |
24 V |
| Supply Voltage, Current Consumption, Power Loss |
|
| Product component / connection for redundant voltage supply |
Yes |
| Type of voltage / 1 / of the supply voltage |
DC |
| Supply voltage / 1 / rated value |
24 V |
| Power loss [W] / 1 / rated value |
13.2 W |
| Supply voltage / 1 / voltage range |
9.6 ... 31.2 |
| Consumed current / 1 / maximum |
0.55 A |
| Type of electrical connection / 1 / for power supply |
3-pole terminal block, permanently installed |
| Product component / 1 / fusing at power supply input |
Yes |
| Fuse protection type / 1 / at input for supply voltage |
3,15 A / 125 V |
| Ambient Temperature |
|
| During operation |
-40 ... +70 °C |
| During storage |
-40 ... +85 °C |
| During transport |
-40 ... +85 °C |
| Relative Humidity |
|
| At 25 °C / without condensation / during operation / maximum |
95% |
| Protection Class IP |
|
| Protection class IP |
IP20 |
| Design, Dimensions and Weights |
|
| Design |
Compact |
| Width |
140 mm |
| Height |
150 mm |
| Depth |
125 mm |
| Net weight |
1.2 kg |
| Material / of the enclosure |
Polycarbonate (PC-GF10) / pressure die cast aluminum |
| Fastening Method |
|
| 35 mm DIN-rail mounting |
Yes |
| Wall mounting |
No |
| S7-300 rail mounting |
Yes |
| S7-1500 rail mounting |
Yes |
